Brakes - ABS: operation › Case ground
Brakes and ABSCase ground

Case ground – diagram from the Brakes and ABS chapter of the Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition factory manual.

CASE GROUND

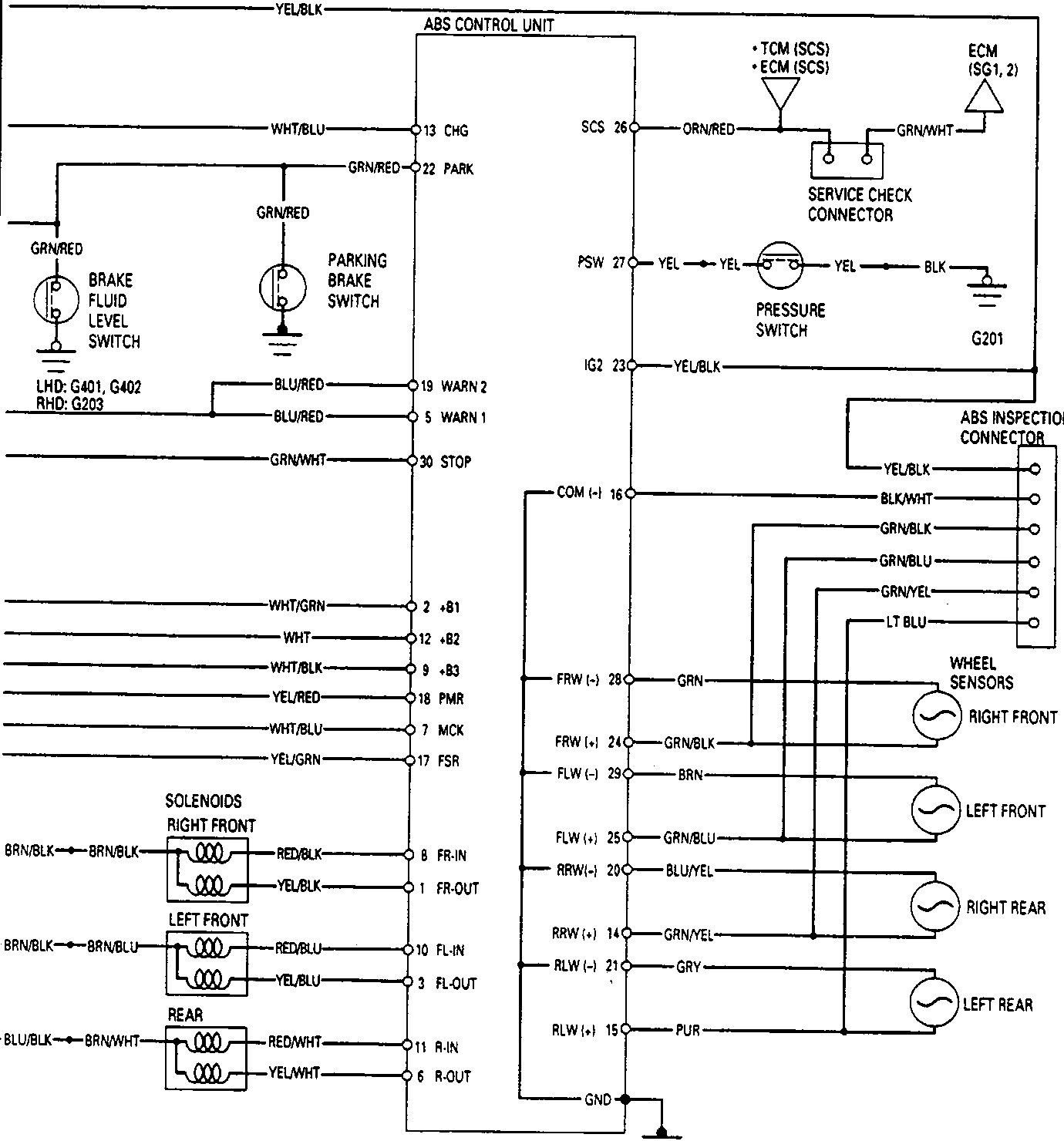

Wiring diagram of the ABS control unit showing connections to brake fluid level switch, parking brake switch, solenoids, wheel sensors, pressure switch, and inspection connector. Includes terminal layout tables for the 18P and 12P connectors.
  1. ABS CONTROL UNIT 18P CONNECTOR
  2. ABS CONTROL UNIT 12P CONNECTOR

70M0316
