WIRING/CONNECTOR LOCATION

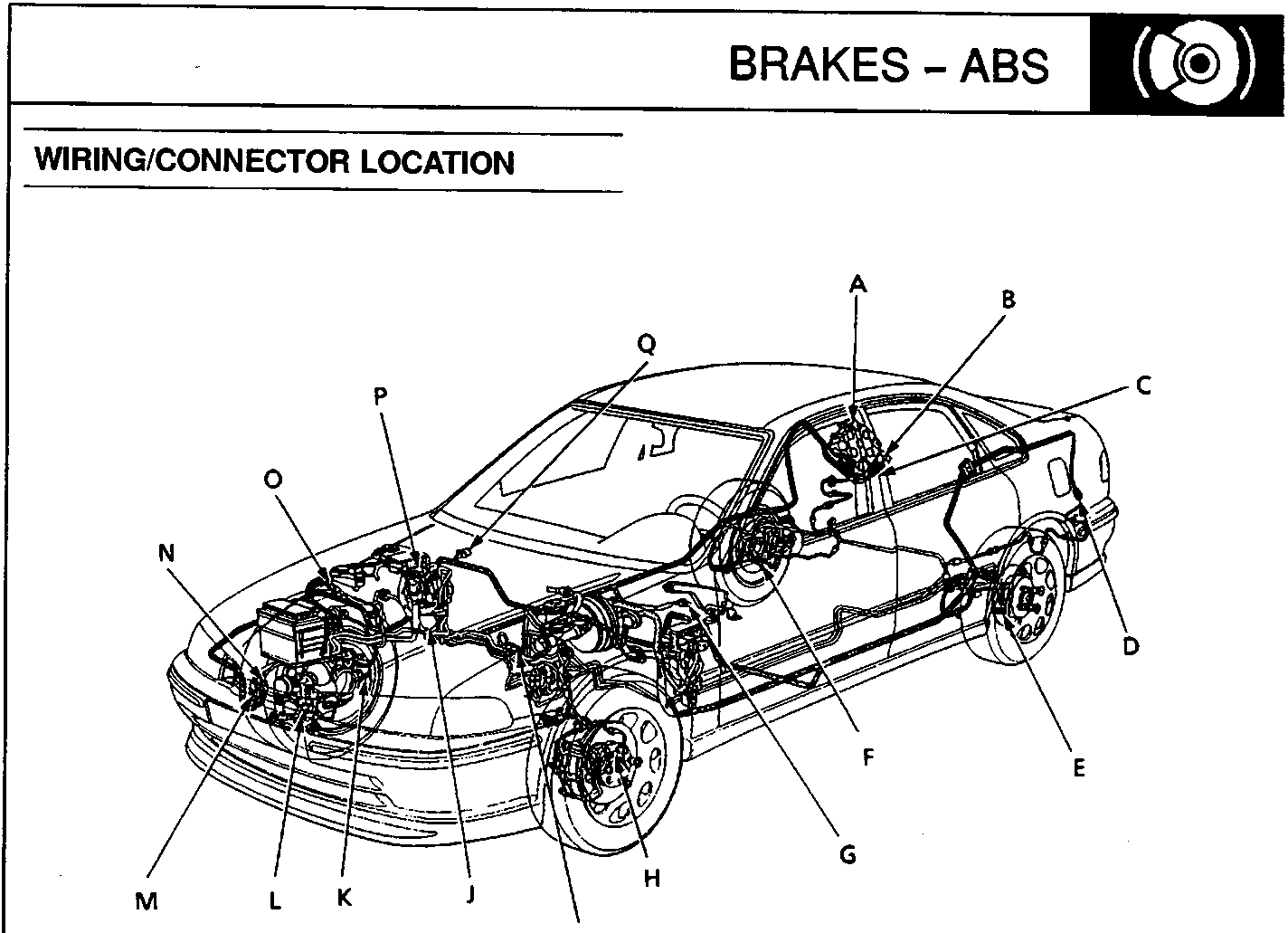

Diagram of car chassis showing wiring and connector locations labeled A through Q.

70M0114

AABS control unitKRight front wheel sensor
BFail-safe relaysLABS pump/accumulator pressure switch
CRight rear wheel sensor connectorMABS pump motor connector
DLeft rear wheel sensor connectorNPressure switch connector
ELeft rear wheel sensorORight front wheel sensor connector
FRight rear wheel sensorPSolenoid connector (10P)
GABS inspection connector (6P)QService check connector (2P)
HLeft front wheel sensor
ILeft front wheel sensor connector
JModulator unit
  • The ABS inspection connector (6P) is located on the cross-member under the passenger’s seat.
  • The service check connector (2P) is located under the dash on the passenger side of car.
  • The under-dash fuse/relay box is located under the dash on the driver side of car.
