Engine32. Remove the exhaust pipe. · page 2 of 9

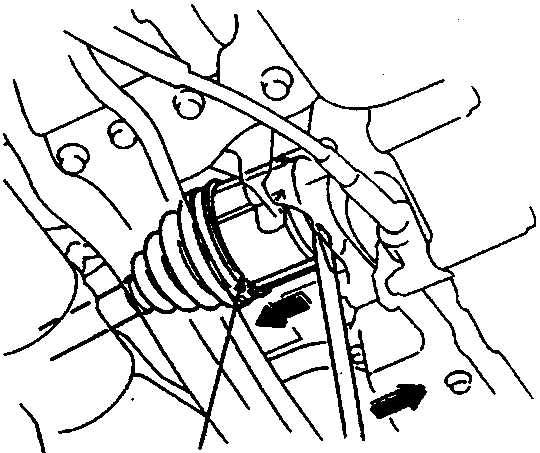

Diagram showing the driveshaft connection point with callout A and reference number 12M 0827

A Driveshaft 36. Remove the driveshafts. CAUTION: Take care not to damage the oil seal when removing the driveshaft. Note: ● Coat all precision finished surfaces with clean engine oil or grease. ● Tie plastic bags over the driveshaft ends.

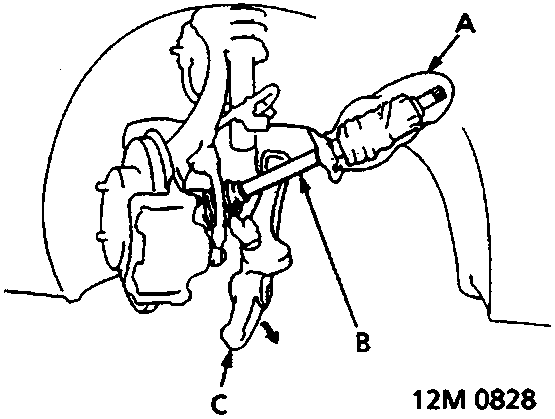

Diagram showing a driveshaft covered by a plastic bag, with callouts A for Plastic bag, B for Driveshaft, and C for Suspension lower arm, reference number 12M 0828

A Plastic bag B Driveshaft C Suspension lower arm 37. Swing the driveshaft under the wing.
