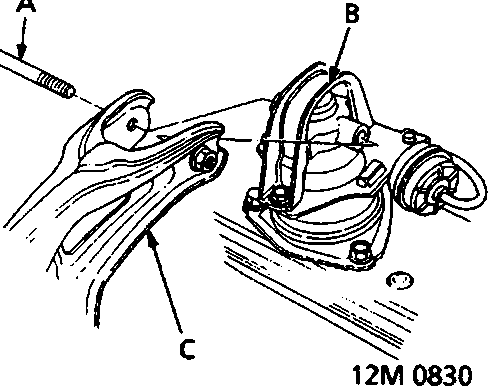

A Rear mount bolt B Rear mount C Rear mount bracket

40. Remove the rear mount bolt.

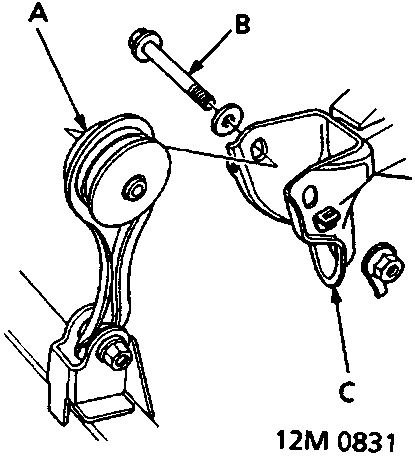

A Torque rod B Front mount bolt C Front mount bracket

41. Remove the front mount bolt.

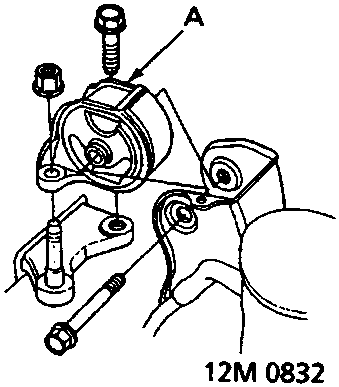

A Side engine mount

42. Remove the left side engine mount.

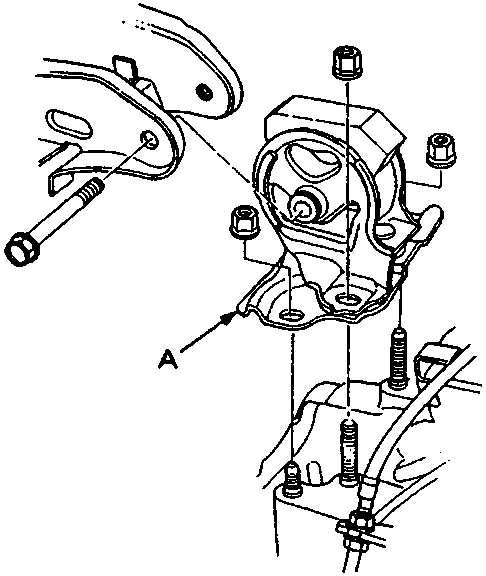

A Gearbox mount

43. Remove the gearbox mount.
44. Raise the chain hoist to remove all slack from the chain.
45. Check that the engine is completely free of vacuum hoses, fuel and coolant hoses and electrical wiring.
46. Slowly raise the engine approximately 150 mm. Check once again that all wires and hoses have been disconnected from the engine.
47. Raise the engine all the way and remove it from the car.
