Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition03 · Engine
03 · Engine

32. Remove the exhaust pipe. (page 6 of 9)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Engine remove: repairs
Engine32. Remove the exhaust pipe. · page 6 of 9

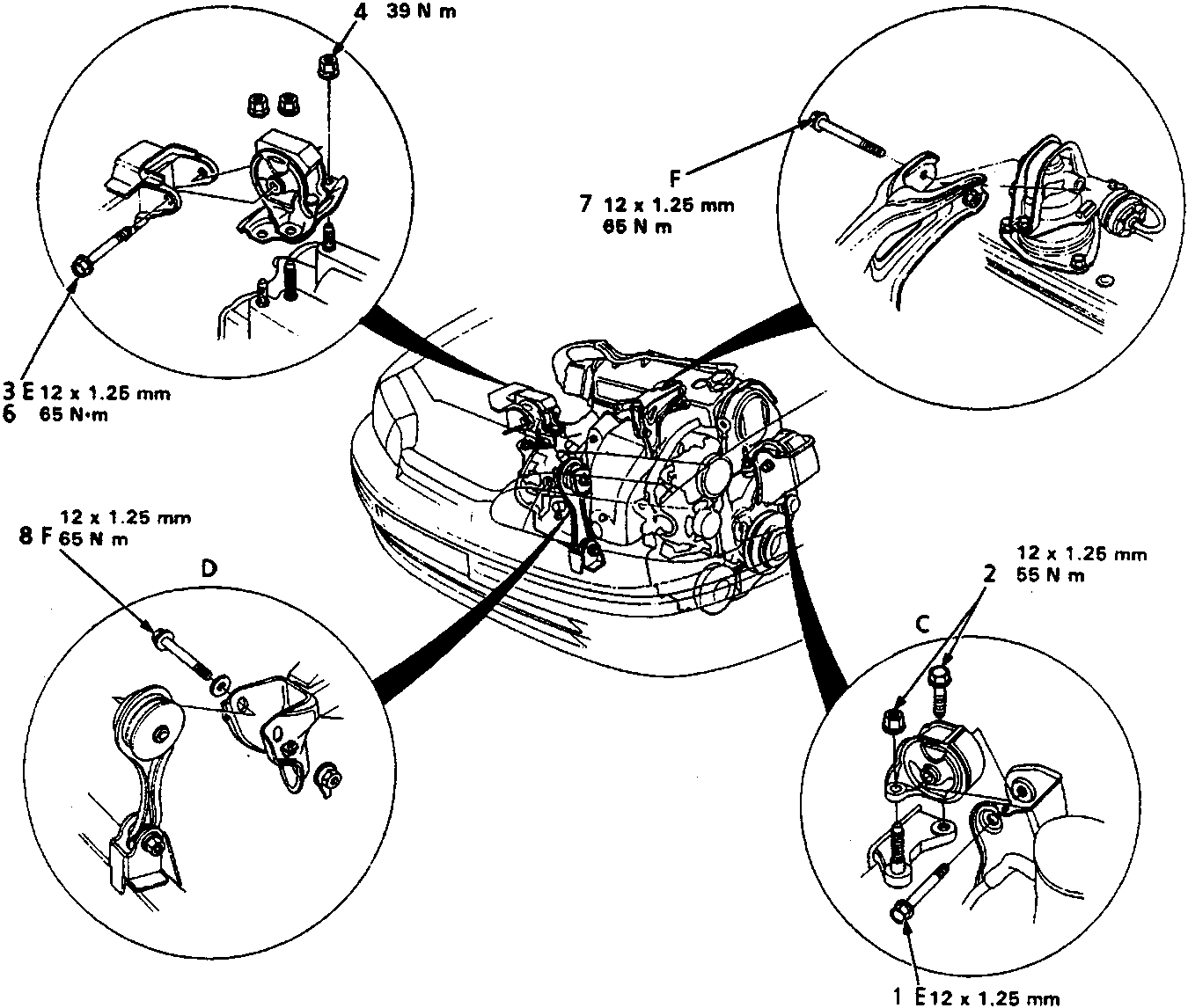

Torque the mounting bolts/nuts in the numbered sequence as shown (1 – 8)

Diagram showing engine mounting bolt and nut tightening sequence with callouts A through F, including thread sizes and torque values for each point. Reference number 12M 0834 at bottom right.
  1. A Gearbox mount
  2. B Rear mount
  3. C Side engine mount
  4. D Front mount
  5. E (Hand tight)
  6. F (Replace)
