Engine remove: repairs
Engine32. Remove the exhaust pipe. · page 8 of 9

32. Remove the exhaust pipe. (page 8 of 9) – diagram from the Engine chapter of the Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition factory manual.

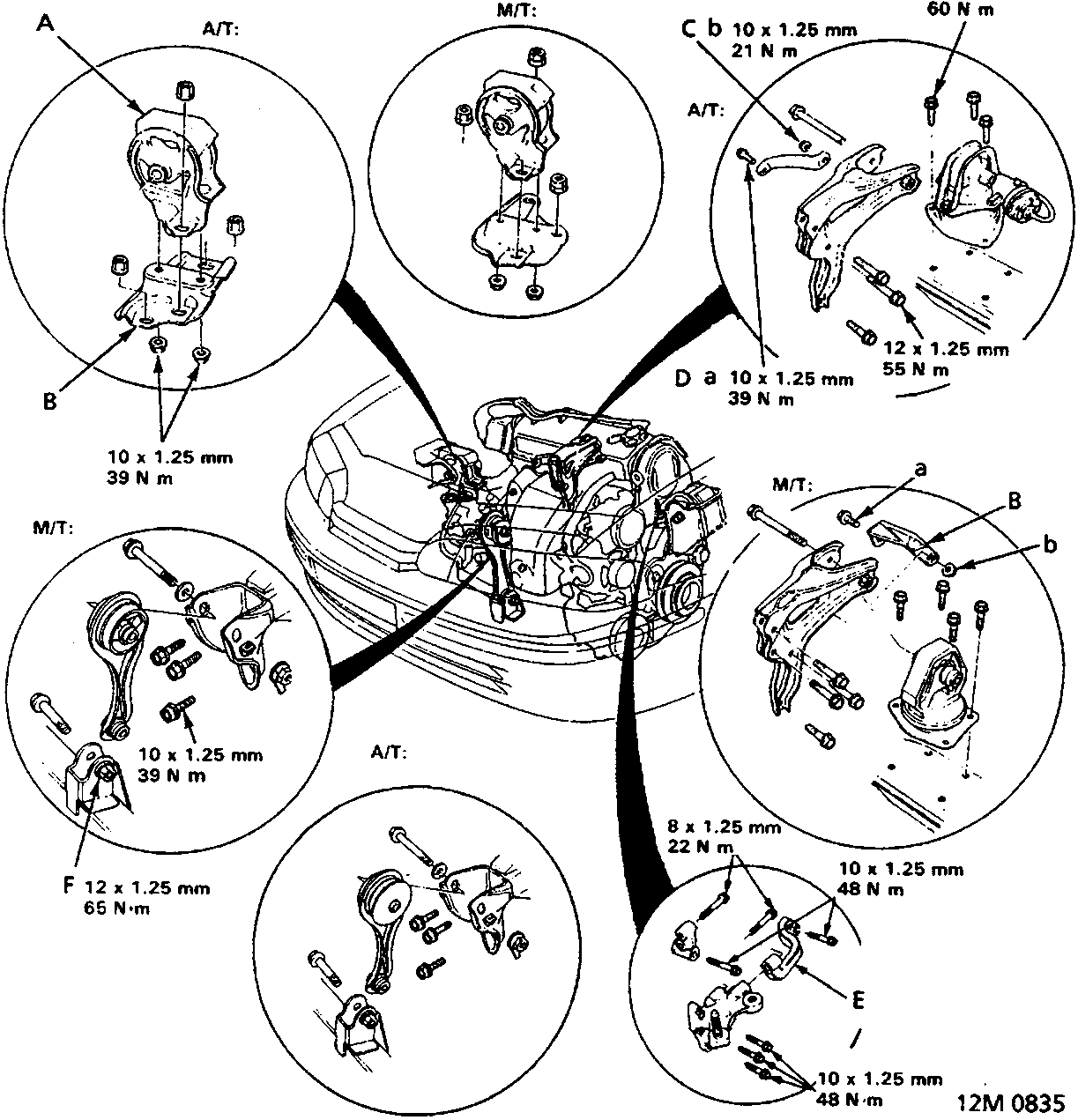

Diagram of engine mount and bracket bolt locations with torque specifications for automatic (A/T) and manual (M/T) transmissions, including callouts A through F.
  • A Gearbox mount
  • B Bracket
  • C (Tighten second)
  • D (Tighten first)
  • E Bracket stay B
  • F (Replace)
