Test 10 – Check the dashboard harness

Test 10 – Check the dashboard harness

1. Turn ignition OFF:

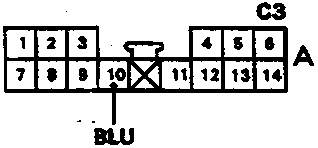

A Dashboard harness 14 – P connector
View from wire side

2. Check for continuity between terminal No. 10 of the dashboard harness 14 – P connector and earth.

If there is continuity (200 ohm or less), failure in the SRS unit due to short to earth in the BLUE wire of the main harness. Replace main harness and the SRS unit.

If there is no continuity, open circuit in the BLUE wire of the dashboard harness; replace dashboard harness.

DTC 9-2

WARNING: Whenever the ignition is switched ON (II), or has been turned OFF for less than 3 minutes, be careful not to bump the SRS unit; the airbags could accidentally deploy and cause damage or injury.

Test 1 – Check the SRS fuse

1. Turn ignition OFF

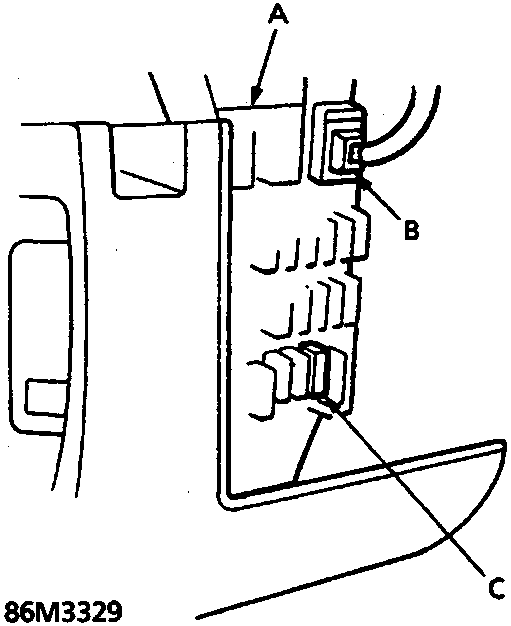

A Under dash fuse/relay box
B SRS main harness 2 – P connector
C SRS fuse

2. Check for blown No. 3 (10A) fuse.

If fuse is OK, go to Test 5.

If fuse has failed, go to Test 2.

Test 2 – Check for fuse blowing

1. Replace fuse.
2. Turn ignition ON (II)and check for fuse No. 3 blowing.

If the fuse blows, go to Test 5.

If fuse does not blow, system O.K.
