Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition19 · Supplementary restraint system (SRS)
19 · Body & interior

Vehicle with driver's airbag (page 2 of 6)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs
Supplementary restraint system (SRS)Vehicle with driver's airbag · page 2 of 6

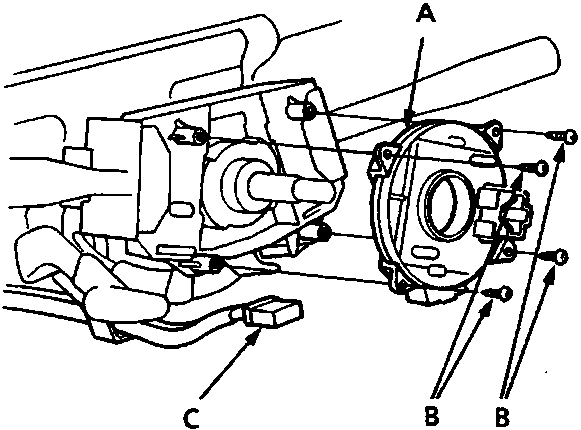

Diagram showing slip ring, mounting screws, and SRS main harness connector on steering column

86M 2397

  • A Slip ring
  • B Mounting screw
  • C SRS main harness 5 – P connector
  1. Install the slip ring on the steering column, then connect the SRS main harness 5 – P connector to the slip ring.

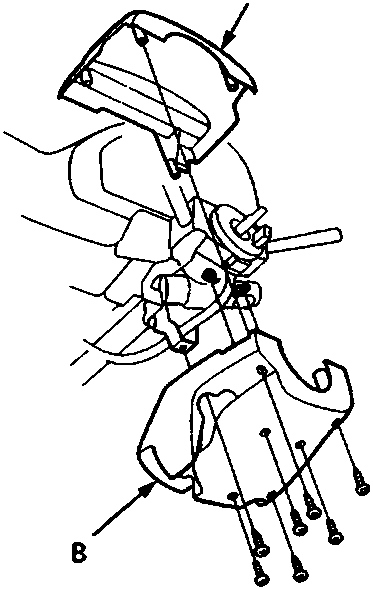

Diagram showing upper and lower steering column covers being installed

86M 2398

  • A Upper column cover
  • B Lower column cover
  1. Install the steering column upper and lower covers.

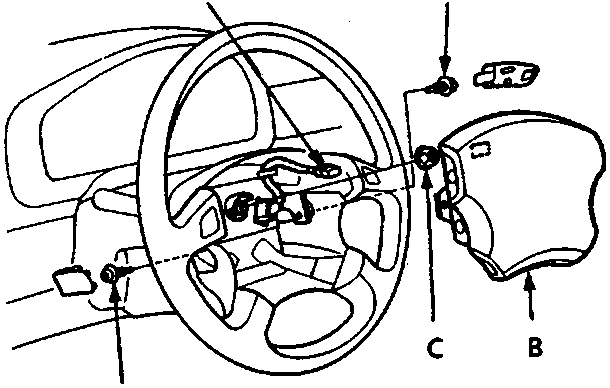

Diagram showing airbag assembly installation with SRS unit sub harness and special bolts

86M 2399

  • A SRS unit sub harness 5 – P connector
  • B Special bolt
  • C Airbag assembly
  • D Special bolt
  • E SRS unit sub harness 5 – P connector
  1. Install the steering wheel.
  2. Connect the SRS unit sub harness 5 – P connector to the SRS unit.
  3. Place the airbag assembly in the steering wheel. Use two new special bolts, start the bolts by hand to avoid cross threading and then torque to 10 Nm with a TORX TX30 bit.

Note: Be sure to torque the bolts as specified and do not over tighten.

  1. Reconnect the battery positive and negative cables.
  2. After installing the slip ring, confirm proper system operation:
  • Turn the ignition ON (II): the instrument panel SRS indicator light should come on for about six seconds and then go off.
  • The SRS self diagnosis indicator (LED) should blink one time with the ignition switch ON (II).
