Vehicle with driver's airbag (page 4 of 6)

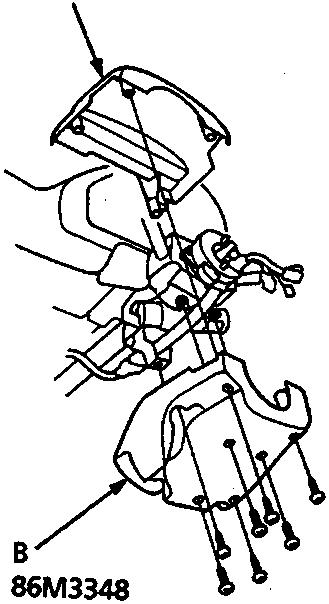

A Upper column cover B Lower column cover 7. Remove the upper and lower covers from the steering column.

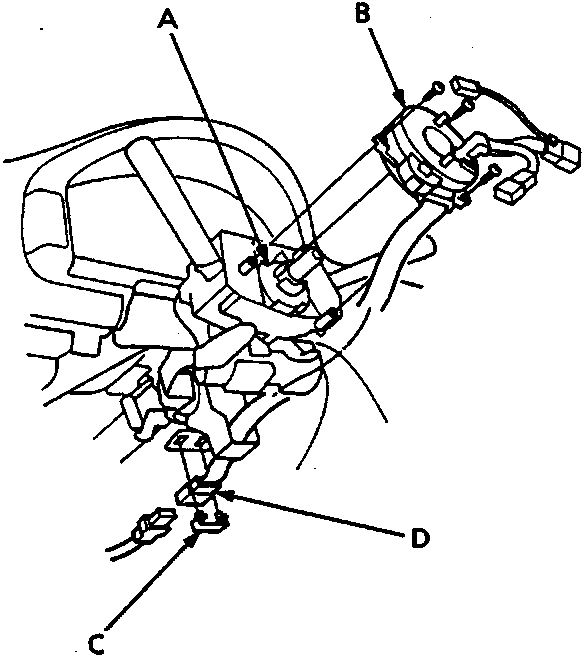

A Cancel sleeve B Cable reel C Connector holder D Cable reel 6 – P connector 8. Disconnect the 6 – P connector between the cable reel and the SRS main harness, then remove the connector holder from the steering column. 9. Remove the cable reel from the column. Replace CAUTION: ● Ensure the wheels are in the straight ahead position before fitting the steering wheel. ● Ensure the harness is not pinched or interferes with other components. ● After assembly, confirm that the wheels are in the straight ahead position and the steering wheel spoke angle is correct (road test). If minor spoke adjustment is necessary, adjust using the tie – rods (not by removing and repositioning the steering wheel).
