Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition19 · Supplementary restraint system (SRS)
19 · Body & interior

Vehicle with driver's airbag (page 5 of 6)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs
Supplementary restraint system (SRS)Vehicle with driver's airbag · page 5 of 6

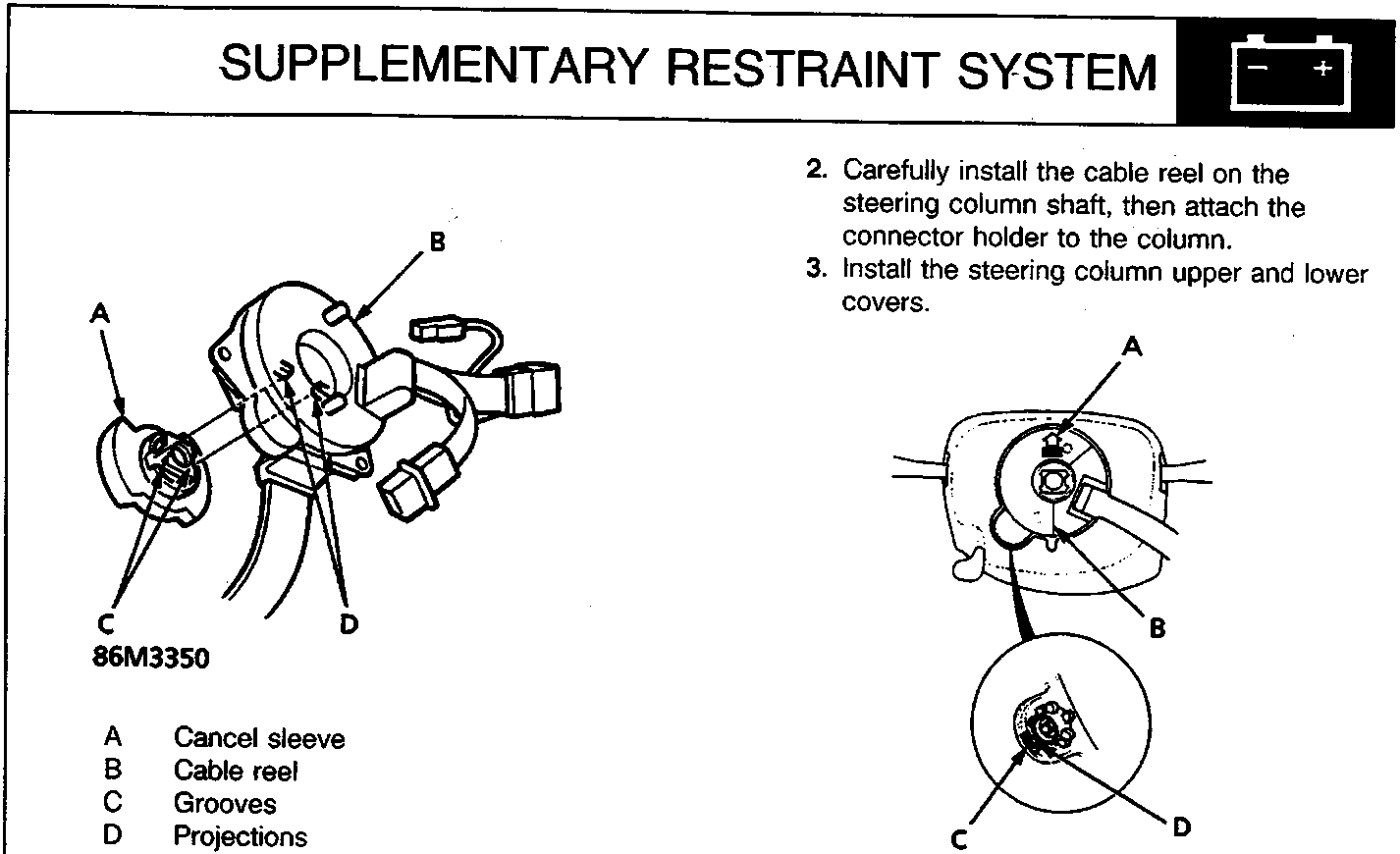

Diagram of cancel sleeve and cable reel assembly with callouts A, B, C, D

86M3350

  • A Cancel sleeve
  • B Cable reel
  • C Grooves
  • D Projections
  1. Carefully install the cable reel on the steering column shaft, then attach the connector holder to the column.
  2. Install the steering column upper and lower covers.
Diagram of cable reel label and alignment marks with callouts A, B, C, D

86M3352

  • A Arrow mark
  • B Cable reel label
  • C Alignment mark
  • D YELLOW tooth gear
  1. Align the cancel sleeve grooves with the cable reel projections.

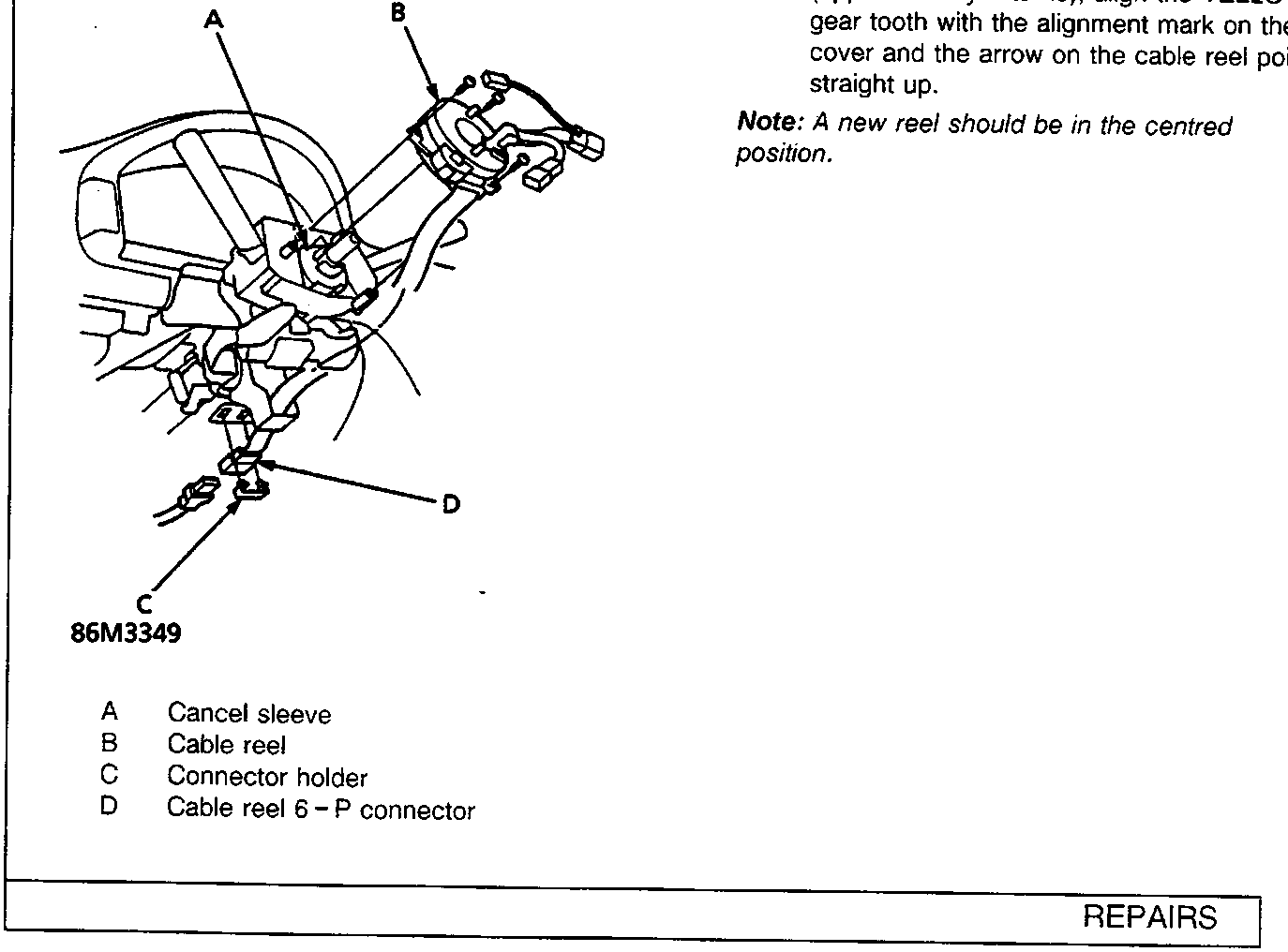

Diagram of installed cable reel and connector holder on steering column with callouts A, B, C, D

86M3349

  • A Cancel sleeve
  • B Cable reel
  • C Connector holder
  • D Cable reel 6 – P connector
  1. Centre cable reel:
    Rotate the cable reel clockwise until it stops.
    Then rotate it anti-clockwise (approximately 2 turns), align the YELLOW gear tooth with the alignment mark on the cover and the arrow on the cable reel points straight up.

Note: A new reel should be in the centred position.
