Thermostat (page 2 of 2)

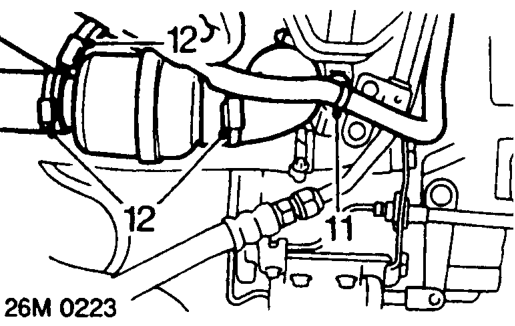

11. Release engine harness clip from coolant rail bracket, position harness aside.
12. Slacken 3 clips and disconnect hoses from thermostat housing, remove thermostat housing.

Refit

1. Fit thermostat housing, connect hoses and tighten clips.
2. Secure engine harness clip to coolant rail bracket.
3. Connect 2 fuel injection pump multiplugs.
4. Secure injector needle lift sensor multiplug to bracket.
5. Connect turbocharger hose to turbocharger pipe and tighten clip.
6. Fit air intake hose to intercooler and tighten clip.
7. Connect air intake hose to inlet manifold intake pipe and tighten clip.
8. Fit air cleaner assembly. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.
9. Fit sound deadening pad to engine and secure with bolts.
10. Fit under belly panel. See BODY, Repairs.
11. Refill cooling system. See MAINTENANCE.
