Rover 620 Diesel Repair Manual Supplement (1995-1999)03 · Engine
03 · Engine

Camshaft cover gasket

Make
Rover
Model
600 620 Diesel Repair Manual Supplement
Year
1995–1999
Section
Repairs › Camshaft cover gasket
EngineCamshaft cover gasket

CAMSHAFT COVER GASKET

Service repair no - 12.29.40

Remove

Camshaft cover gasket – Service repair no - 12.29.40

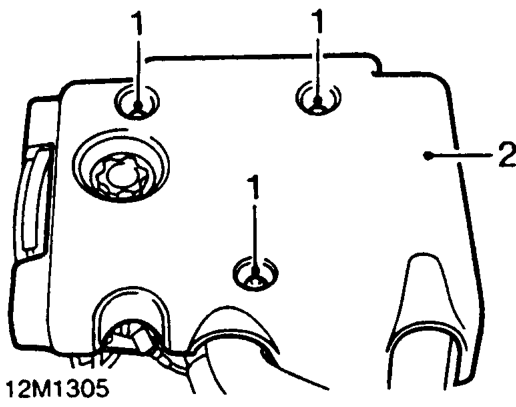

  1. Remove 3 bolts securing sound deadening pad to engine.
  2. Remove sound deadening pad.
Camshaft cover gasket – Remove sound deadening pad.

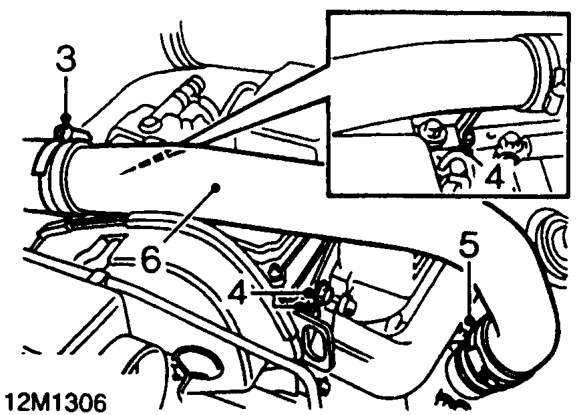

  1. Slacken clip and disconnect intercooler top hose from turbocharger pipe.
  2. Remove 3 bolts securing turbocharger pipe to cylinder head, collect engine lifting bracket.
  3. Slacken clip and disconnect pipe from turbocharger.
  4. Remove turbocharger pipe.
Camshaft cover gasket – Remove turbocharger pipe.

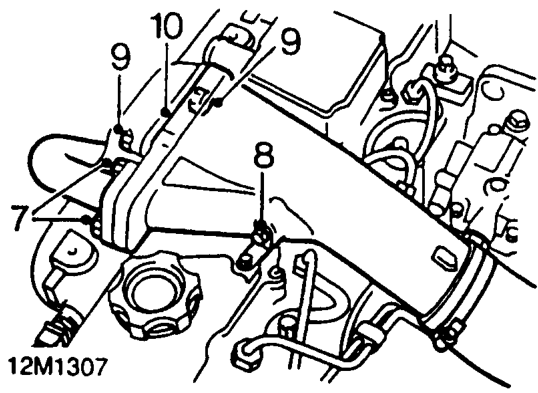

  1. Remove 2 bolts securing EGR recirculation pipe to inlet manifold intake pipe.
  2. Remove bolt securing inlet manifold intake pipe to camshaft cover bracket.
  3. Remove 2 bolts securing intake pipe to inlet manifold.
  4. Remove inlet manifold intake pipe and discard gasket.
Camshaft cover gasket – Remove inlet manifold intake pipe and discard gasket.

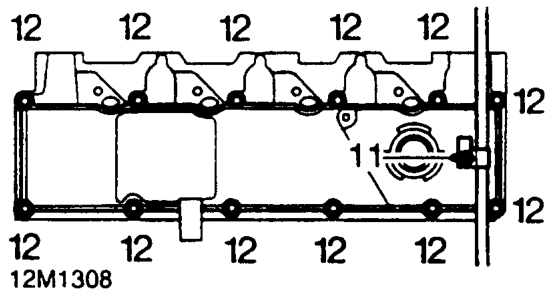

  1. Remove Allen screw securing brake servo vacuum pipe to camshaft cover.
  2. Using diagonal sequence, remove 12 bolts securing camshaft cover to cylinder head.
  3. Remove camshaft cover from cylinder head.
