Rover 620 Diesel Repair Manual Supplement (1995-1999)03 · Engine
03 · Engine

Crankshaft rear oil seal

Make
Rover
Model
600 620 Diesel Repair Manual Supplement
Year
1995–1999
Section
Repairs › Crankshaft rear oil seal
EngineCrankshaft rear oil seal · page 1 of 2

Refit

  1. Use lint free cloth and thoroughly clean seal recess in oil pump.
  2. Clean running surface on crankshaft.
Clean running surface on crankshaft.

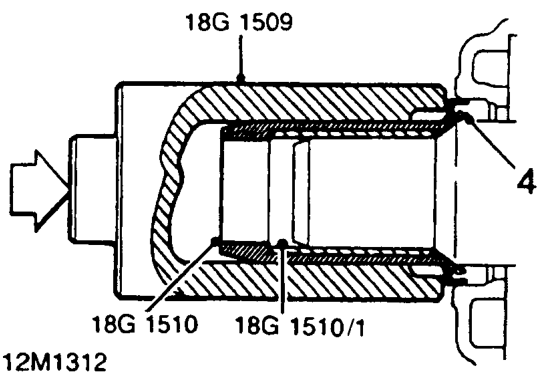

  1. Fit guide tools 18G 1510 and 18G 1510-1 onto crankshaft.
  2. Using guide tools position new oil seal on crankshaft journal and against oil pump, drift into place using tool 18G 1509.

CAUTION: Seal must be fitted dry.

  1. Remove guide tools from crankshaft.
  2. Clean crankshaft timing gear and slide onto crankshaft.
  3. Fit camshaft timing belt. See MAINTENANCE.
  4. Connect battery earth lead.

CRANKSHAFT REAR OIL SEAL

Service repair no - 12.21.20

Remove

  1. Disconnect battery earth lead.
  2. Remove flywheel. See this section.
  3. Drain engine oil. See MAINTENANCE.
  4. Fit oil drain plug using new sealing washer and tighten to 25 Nm.
Crankshaft rear oil seal – Fit oil drain plug using new sealing washer and tighten to 25 Nm.

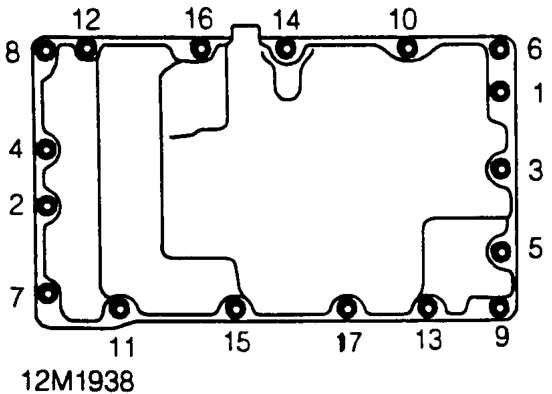

  1. Using sequence shown, remove 17 bolts securing sump to cylinder block.
  2. Remove sump, remove and discard gasket - if fitted.
Crankshaft rear oil seal – Remove sump, remove and discard gasket - if fitted.
  1. Remove 5 bolts securing crankshaft rear oil seal housing to cylinder block, remove and discard housing and oil seal.
