EngineEngine and manual gearbox · page 1 of 9

ENGINE AND MANUAL GEARBOX

Service repair no - 12.37.01

NOTE: On models fitted with air conditioning it will be necessary to reclaim refrigerant. See AIR CONDITIONING, Repairs.

Remove

  1. Tie back bonnet, protect roof panel.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).
  2. Remove LH under belly panel. See BODY, Repairs.
  3. Remove under belly panel. See BODY, Repairs.
  4. Drain engine oil and remove filter. See MAINTENANCE.
  5. Drain gearbox oil. See MAINTENANCE.
  6. Drain cooling system. See MAINTENANCE.
  7. Disconnect battery earth lead.
  8. Remove air cleaner assembly. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.
Engine and manual gearbox – Remove air cleaner assembly. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.

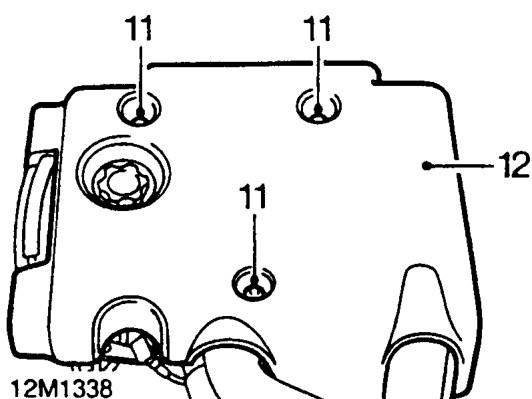

  1. Remove 3 bolts securing sound deadening pad to engine.
  2. Remove sound deadening pad.
Engine and manual gearbox – Remove sound deadening pad.

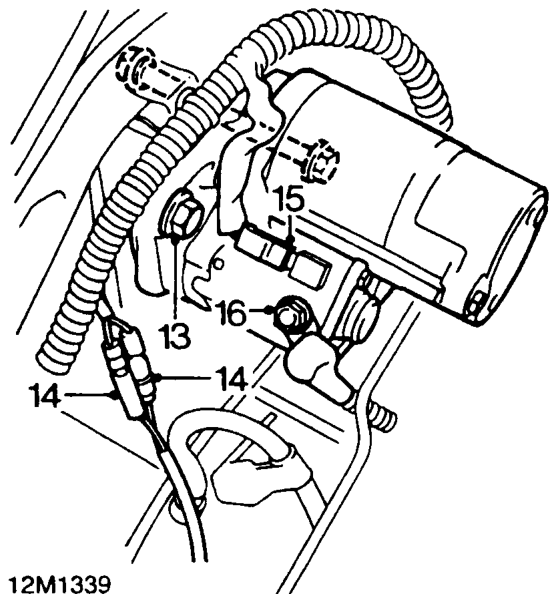

  1. Remove starter motor top retaining bolt.
  2. Disconnect 2 reverse lamp switch connectors.
  3. Disconnect starter solenoid connector.
  4. Remove nut securing battery lead to starter motor.
