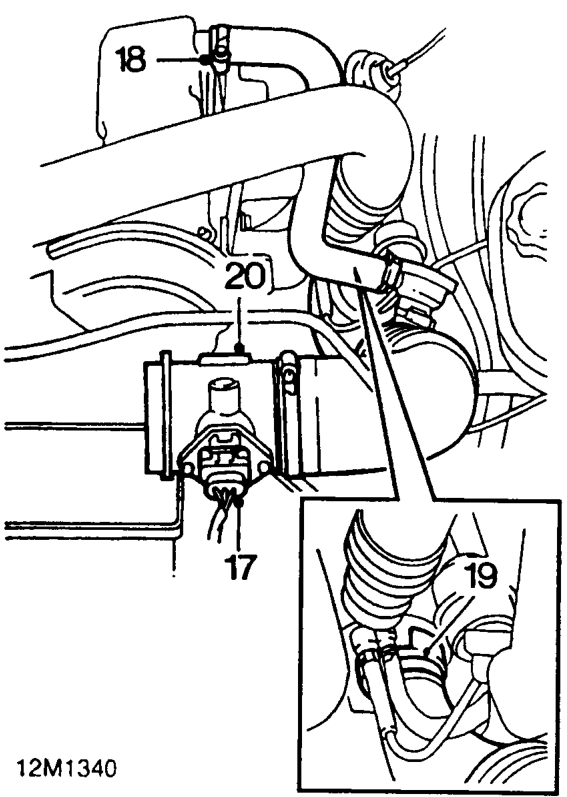

17. Disconnect air flow meter multiplug.
18. Slacken clip and disconnect breather hose from camshaft cover.
19. Slacken clip and disconnect air intake hose from turbocharger.
20. Remove air intake hose assembly.

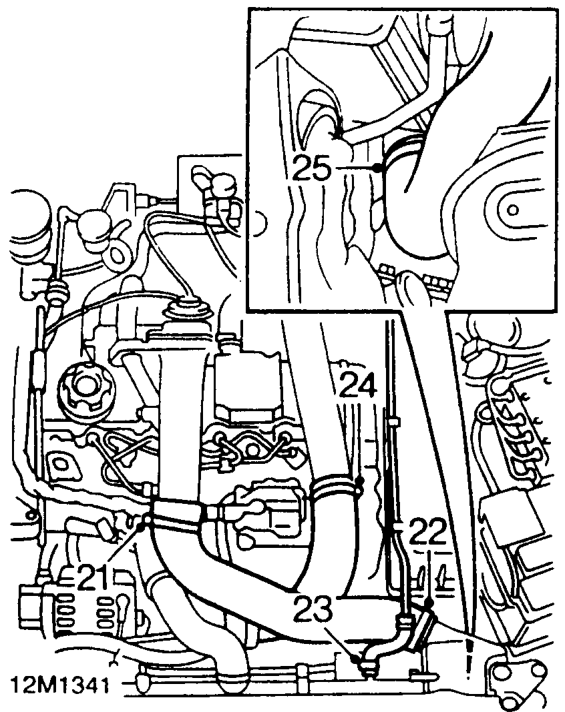

21. Slacken clip and disconnect air intake hose from inlet manifold intake pipe.
22. Slacken clip and remove air intake hose from intercooler.
23. Slacken clip and disconnect expansion tank return pipe from radiator.
24. Slacken clip and disconnect turbocharger hose from turbocharger pipe.
25. Slacken clip and remove turbocharger hose from intercooler.

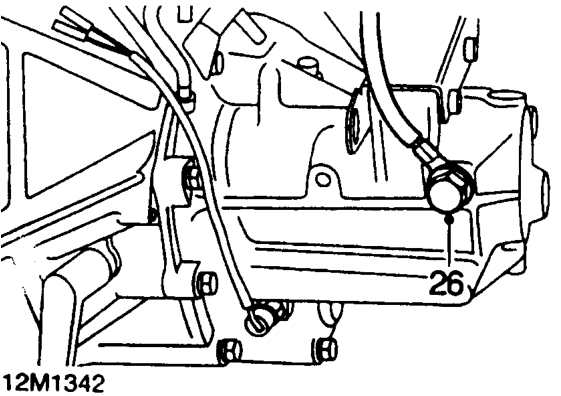

26. Remove bolt securing earth lead to gearbox.
