Rover 620 Diesel Repair Manual Supplement (1995-1999)03 · Engine
03 · Engine

Engine and manual gearbox (page 8 of 9)

Make
Rover
Model
600 620 Diesel Repair Manual Supplement
Year
1995–1999
Section
Repairs
EngineEngine and manual gearbox · page 8 of 9
Diagram

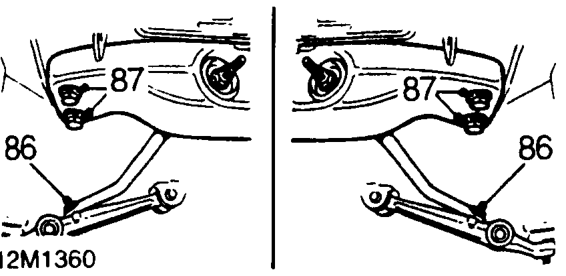

  1. Remove 2 bolts securing LH and RH radius rods to lower arms.
  2. Remove 4 bolts securing front beam and remove using assistance.
Remove 4 bolts securing front beam and remove using assistance.

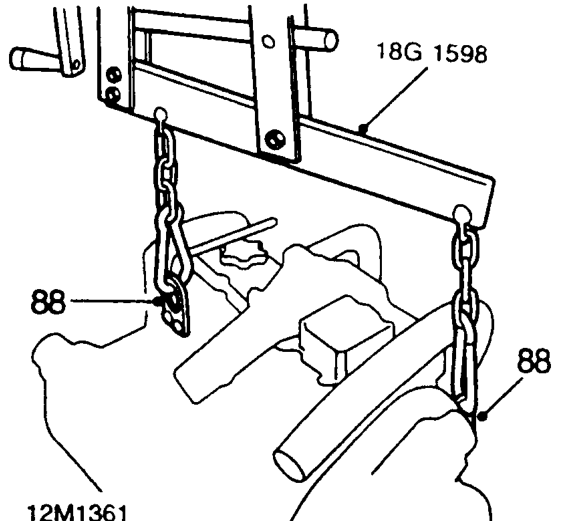

  1. Attach engine lifting tool 18G 1598 to engine lifting eyes and connect lifting tool to hoist.
  2. Raise hoist until lifting tool chains are taut.
Raise hoist until lifting tool chains are taut.

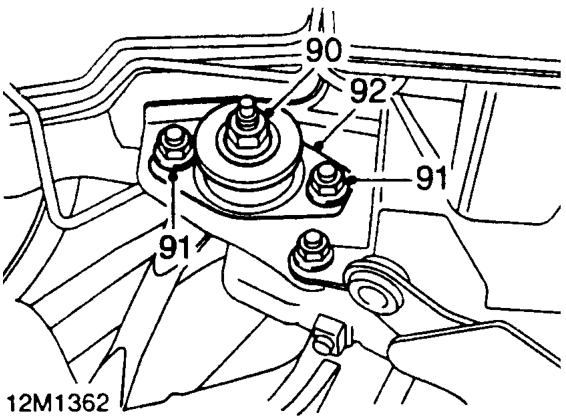

  1. Remove nut securing engine LH mounting to gearbox bracket.
  2. Remove 2 nuts securing engine LH mounting to bracket.
  3. Remove engine LH mounting.
Remove engine LH mounting.

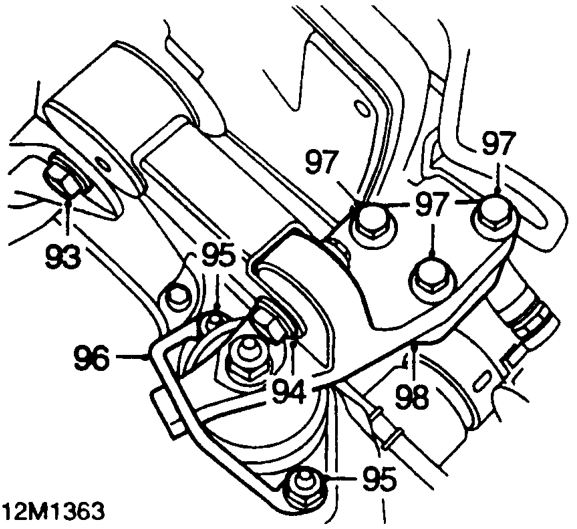

  1. Remove bolt securing engine RH mounting tie to body bracket.
  2. Slacken bolt securing engine RH mounting to tie.
  3. Remove 2 nuts securing engine RH mounting restraint bar.
  4. Remove mounting restraint bar.
  5. Remove 3 bolts securing engine RH mounting to engine.
  6. Remove engine RH mounting assembly.
  7. Lower engine assembly to remove.
