Rover 620 Diesel Repair Manual Supplement (1995-1999)03 · Engine
03 · Engine

Oil cooler

Make
Rover
Model
600 620 Diesel Repair Manual Supplement
Year
1995–1999
Section
Repairs › Oil cooler
EngineOil cooler · page 1 of 2

Refit

  1. Clean flywheel and crankshaft face.
  2. Clean adhesive from threads in crankshaft, using an old flywheel bolt with two helical hacksaw cuts made in threads. Do not use a tap.
  3. Ensure location dowel is fitted to crankshaft, fit flywheel to crankshaft.
  4. Insert flywheel locking pin 18G 1523 and engage in hole in flywheel.
  5. Fit NEW flywheel bolts and tighten to 15 Nm then further 90° .
  6. Fit CKP sensor, fit and tighten bolt to 8 Nm.
  7. Fit clutch assembly. See CLUTCH, Repairs.
  8. Remove flywheel locking pin 18G 1523.

OIL COOLER

Service repair no - 12.60.68

Remove

  1. Disconnect battery earth lead.
Oil cooler – Disconnect battery earth lead.

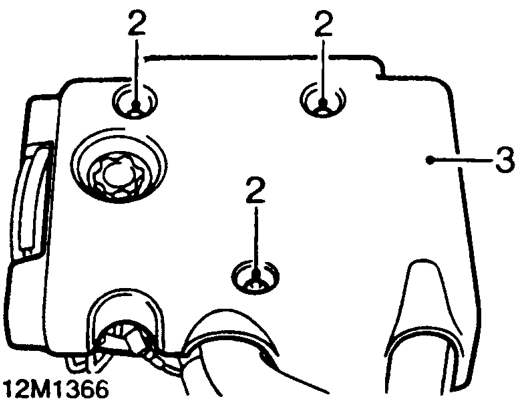

  1. Remove 3 bolts securing sound deadening pad to engine.
  2. Remove sound deadening pad.
  3. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove LH under belly panel. See BODY, Repairs.
  2. Remove under belly panel. See BODY, Repairs.
  3. Drain cooling system. See MAINTENANCE.
Oil cooler – Drain cooling system. See MAINTENANCE.

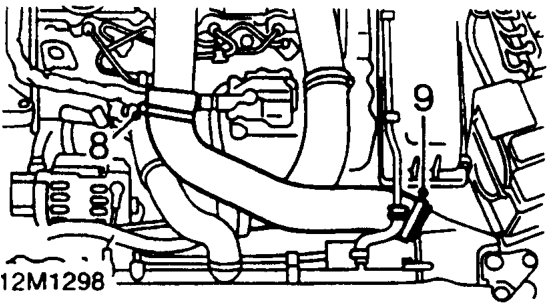

  1. Slacken clip and disconnect hose from inlet manifold intake pipe.
  2. Slacken clip and remove hose from intercooler.
