EngineCylinder head gasket · page 1 of 9
  1. Position new gasket to sump.

NOTE: Sumps fitted to early engines were not fitted with a gasket, gaskets must be fitted to all engines. Gasket must be fitted dry.

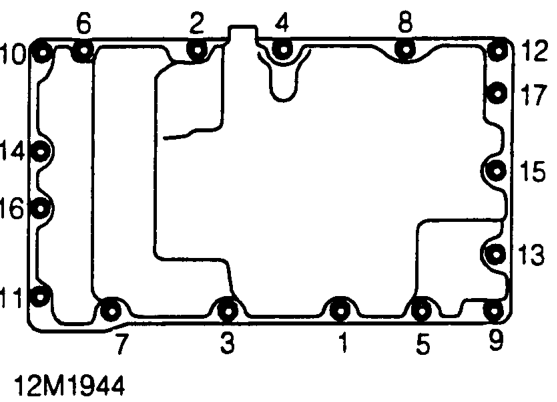

  1. Position sump to cylinder block.
Position sump to cylinder block.
  1. Fit and finger tighten 17 bolts.
  2. Using sequence shown, tighten bolts to 25 Nm.
  3. Using same sequence, re-check that all bolts are torqued to 25 Nm.
  4. Fit flywheel. See this section.
  5. Fill engine with oil. See MAINTENANCE.
  6. Connect battery earth lead.
  7. Start engine and run until normal operating temperature is reached.
  8. Check for leaks around engine sump gasket.

CYLINDER HEAD GASKET

Service repair no - 12.29.02

Remove

  1. Remove exhaust manifold. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
  2. Remove LH under belly panel. See BODY, Repairs.
  3. Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.
  4. Remove drive belt. See MAINTENANCE.
Cylinder head gasket – Remove drive belt. See MAINTENANCE.

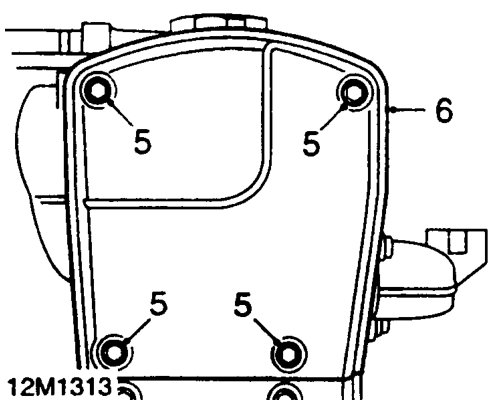

  1. Remove 4 bolts securing camshaft timing belt top cover.
  2. Remove top cover.
Cylinder head gasket – Remove top cover.

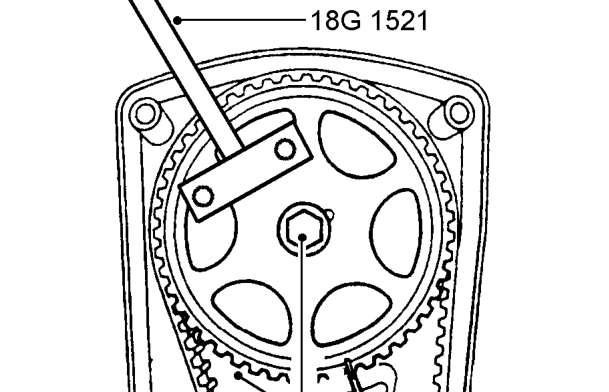

  1. Restrain camshaft gear using tool 18G 1521 and loosen but do not remove camshaft gear retaining bolt.
