Cylinder head gasket (page 2 of 9)
- Make
- Rover
- Model
- 600 620 Diesel Repair Manual Supplement
- Year
- 1995–1999
- Section
- Repairs
EngineCylinder head gasket · page 2 of 9

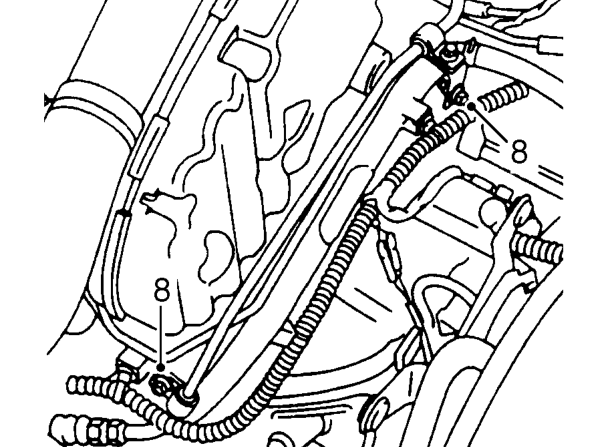

- Remove 2 bolts securing PAS pipes to coolant rail.

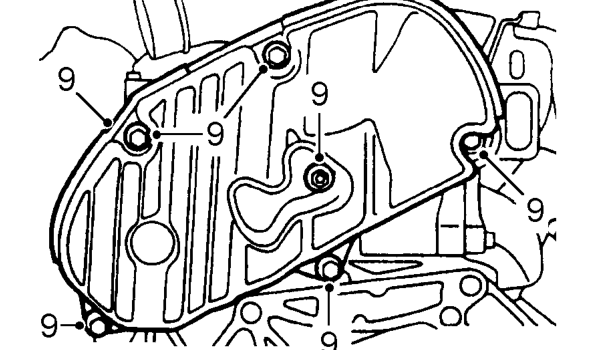

- Remove 5 bolts and nut securing injection pump timing belt cover, remove cover.

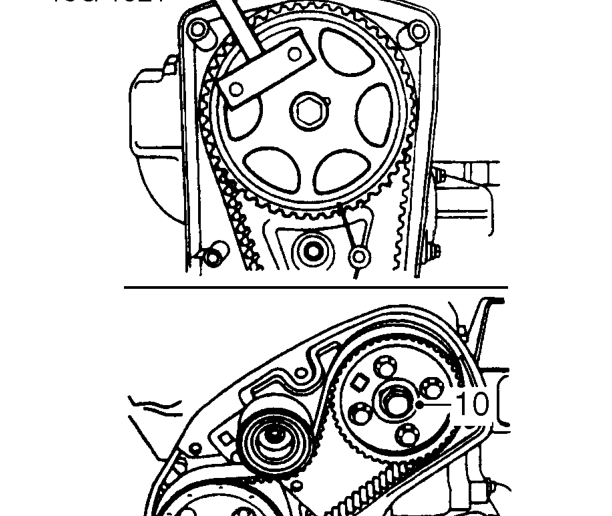

- Restrain camshaft gear using tool 18G 1521 and loosen but do not remove bolt retaining injection pump timing belt camshaft gear.
Parts & tools for this job For 1995 Rover 600
- PARTEngine gasket setSearch: Rover 600 1995 engine gasket set
- TOOLTorque wrenchSearch: 3/8 inch torque wrench
- TOOLFeeler gauge setSearch: feeler gauge set
