EngineCylinder head gasket · page 4 of 9
  1. Remove and discard injection pump timing belt camshaft gear bolt.
  2. Remove camshaft gear.
Remove camshaft gear.

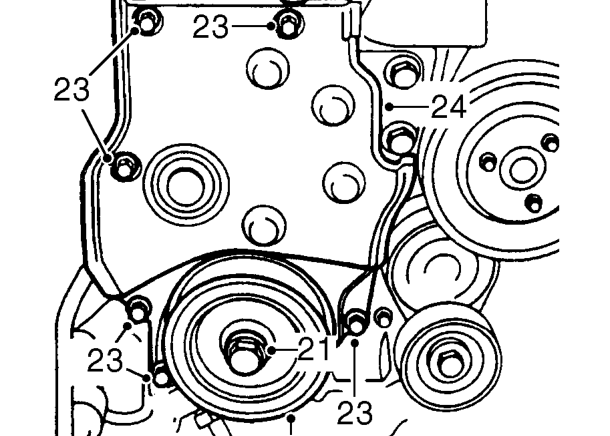

  1. Remove crankshaft pulley bolt.
  2. Remove crankshaft pulley.
  3. Noting their fitted positions, remove 6 bolts securing camshaft timing belt lower cover.
  4. Remove lower cover.
  5. Position trolley jack to support engine.

CAUTION: Use a block of wood or foam rubber pad to protect sump.

Position trolley jack to support engine.

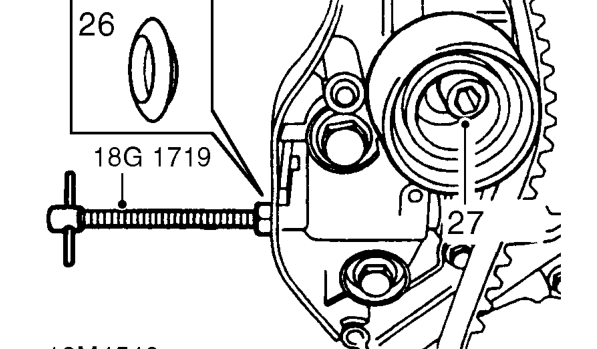

  1. Remove camshaft timing belt tensioner access plug from timing belt rear cover.
  2. Loosen but do not remove Allen bolt securing tensioner pulley.
  3. Screw timing belt tensioner retractor tool 18G 1719 into timing belt tensioner.
  4. Tighten nut on tool 18G 1719 until belt tension is released.
Tighten nut on tool 18G 1719 until belt tension is released.

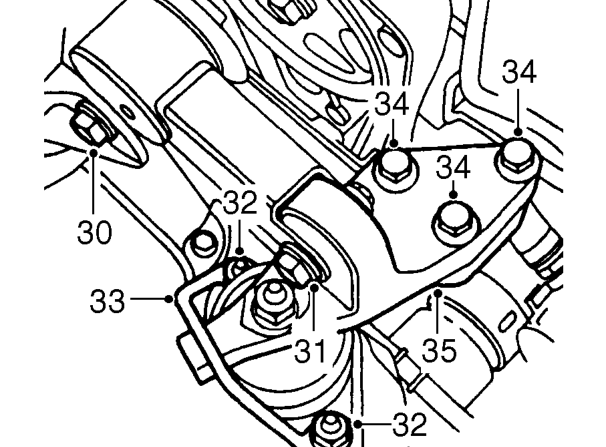

  1. Remove bolt securing engine RH mounting tie to body bracket.
  2. Slacken bolt securing engine RH mounting to tie.
  3. Remove 2 nuts securing restraint bar to engine RH mounting.
  4. Remove mounting restraint bar.
  5. Remove 3 bolts securing engine RH mounting to engine.
  6. Remove engine RH mounting assembly.
