CAMSHAFT REAR OIL SEAL

Service repair no - 12.13.06

Remove

  1. Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.
Camshaft rear oil seal – Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.

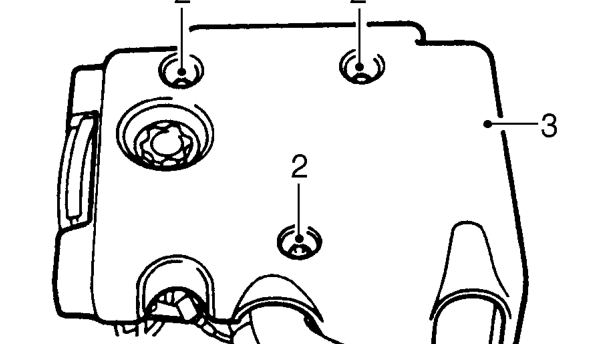

  1. Remove 3 bolts securing sound deadening pad to engine.
  2. Remove sound deadening pad.
Camshaft rear oil seal – Remove sound deadening pad.

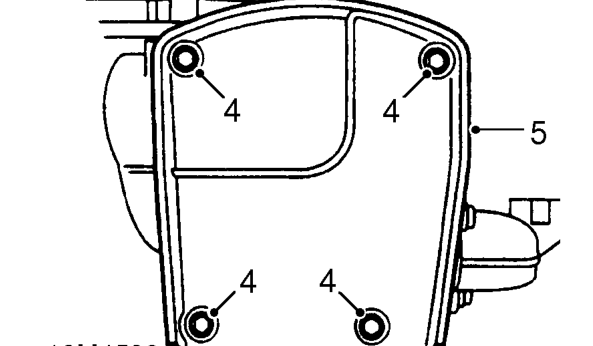

  1. Remove 4 bolts securing camshaft timing belt top cover.
  2. Remove top cover.
Camshaft rear oil seal – Remove top cover.

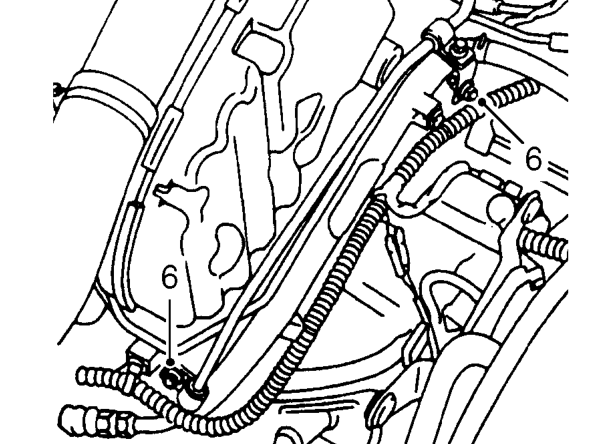

  1. Remove 2 bolts securing PAS pipe to coolant rail.
Camshaft rear oil seal – Remove 2 bolts securing PAS pipe to coolant rail.

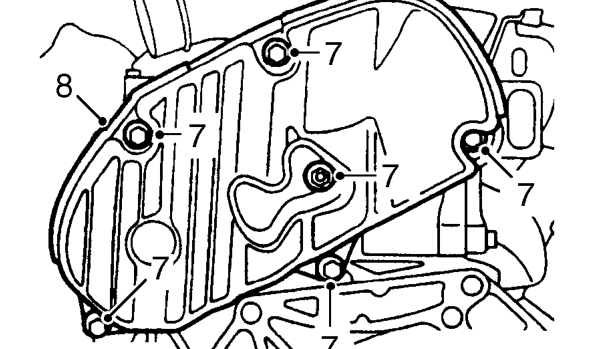

  1. Remove 5 bolts and nut securing injection pump timing belt cover.
  2. Remove injection pump timing belt cover.
