Camshaft front oil seal (page 5 of 5)

18. Slacken tensioner pulley Allen bolt until tensioner moves easily without tipping.

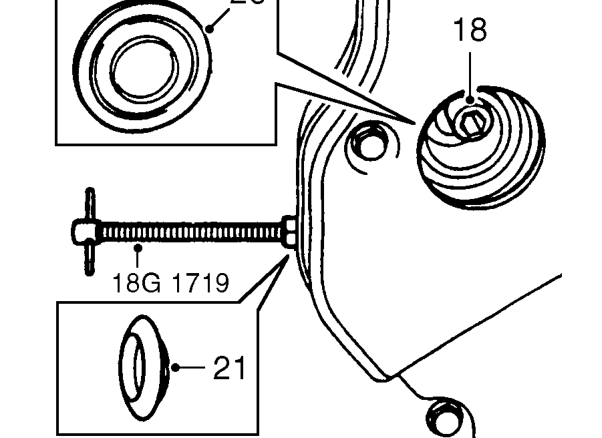

19. Release camshaft timing belt tensioner plunger using tool 18G 1719.
20. Remove tool 18G 1719 from camshaft timing belt tensioner, tighten Allen bolt to 55 Nm.

CAUTION: Do not exceed specified torque.

21. Fit access plug in timing belt rear cover.
22. Remove timing pin tool 18G 1523 from flywheel.
23. Using crankshaft pulley bolt, rotate crankshaft 2 complete revolutions clockwise and align camshaft gear timing marks.

CAUTION: Do not use camshaft gear, gear bolt or timing belt to rotate crankshaft.

24. Fit timing pin 18G 1523 into hole in flywheel ensuring pin is fully inserted in hole.
25. Loosen tensioner pulley Allen bolt until tensioner moves to tension belt then tighten Allen bolt to 55 Nm.
26. Fit access plug in timing belt lower cover.
27. Remove timing pin 18G 1523 from flywheel.

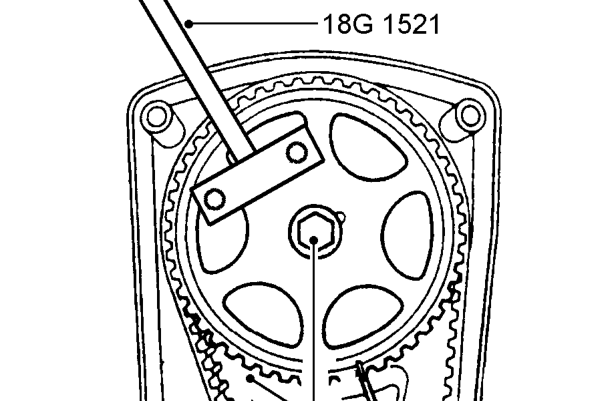

28. Restrain camshaft gear using tool 18G 1521 and tighten gear bolt to 20 Nm + 90° .
29. Position camshaft timing belt top cover, fit 4 bolts and tighten to 5 Nm.
30. Remove stand(s) and lower vehicle.
31. Connect battery earth lead.
