Camshaft front oil seal (page 3 of 5)

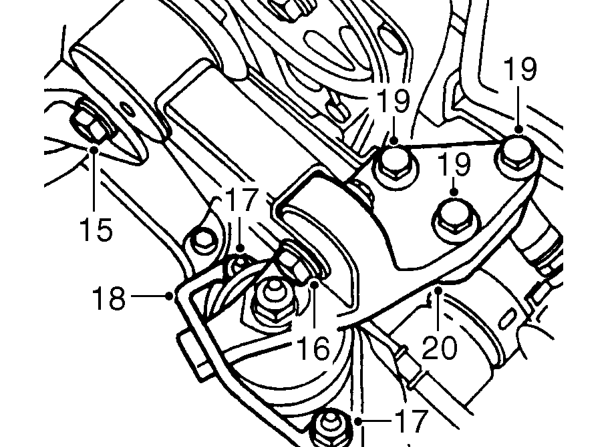

15. Remove bolt securing engine RH mounting tie to body bracket.
16. Slacken bolt securing engine RH mounting to tie.
17. Remove 2 nuts securing engine RH mounting restraint bar.
18. Remove mounting restraint bar.
19. Remove 3 bolts securing engine RH mounting to engine.
20. Remove engine RH mounting assembly.
21. Raise engine on jack.

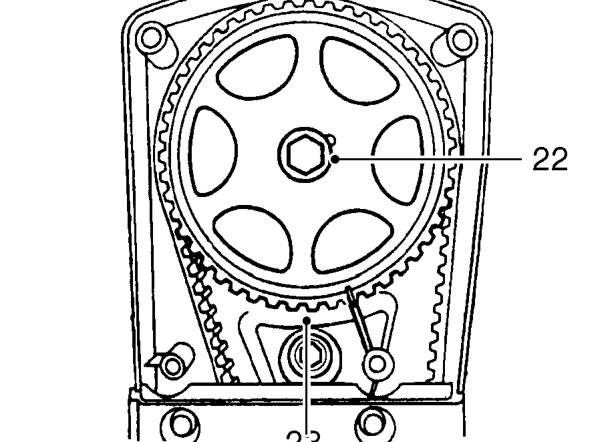

22. Remove but do not discard camshaft gear retaining bolt.
23. Release camshaft gear from camshaft and remove from belt.
24. Check camshaft timing belt for signs of oil or coolant contamination, replace if necessary.

CAUTION: Do not rotate crankshaft or camshaft with timing belt removed. If the sintered gear has been subjected to prolonged oil contamination, it must be soaked in a solvent bath and thoroughly washed with solvent before refitment. Because of the porous construction of the sintered material, oil impregnated in the gear will emerge and contaminate a new belt. Cause of contamination must be rectified.
