Camshaft front oil seal (page 2 of 5)

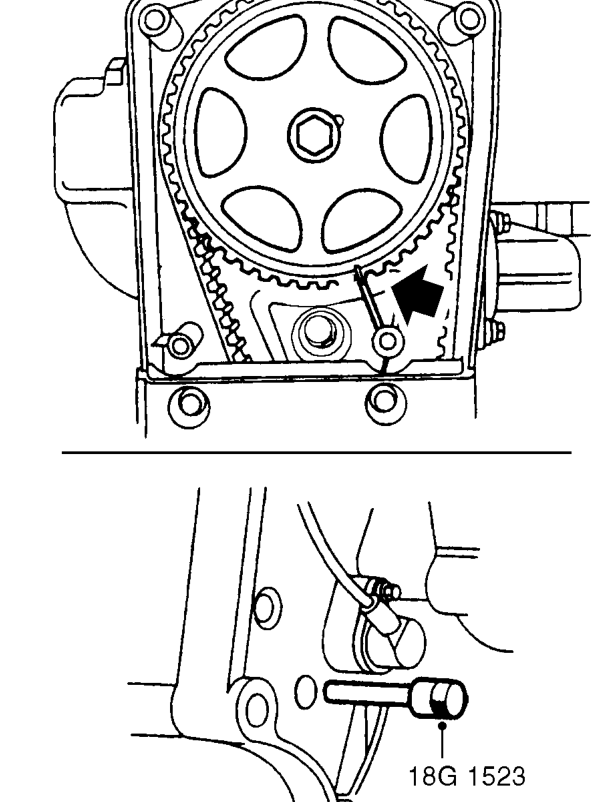

6. Insert timing pin 18G 1523 through hole in gearbox mounting plate, hold pin in contact with flywheel.
7. Using assistance, rotate crankshaft clockwise until timing pin 18G 1523 can be felt to enter hole in flywheel.

CAUTION: Never use the camshaft gear, gear retaining bolt or timing belt to rotate the crankshaft.

8. Check that timing marks on camshaft gear and back cover are aligned.

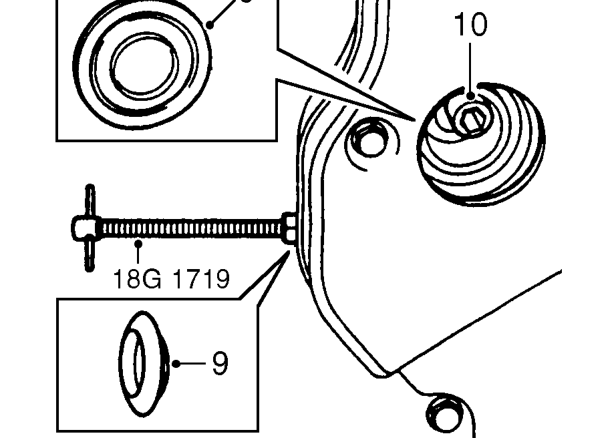

9. Remove access plugs from camshaft timing belt lower and rear covers.
10. Loosen but do not remove Allen bolt securing tensioner pulley.
11. Screw timing belt tensioner retractor tool 18G 1719 into timing belt tensioner.
12. Tighten nut on tool 18G 1719 until timing belt tension is released.
13. Tighten tensioner pulley Allen bolt.
14. Position trolley jack to support engine.

CAUTION: Use a block of wood or hard rubber pad to protect sump.
