Camshaft front oil seal (page 4 of 5)

25. Fit but do not tighten the original camshaft gear retaining bolt.

CAUTION: Ensure camshaft does not rotate.

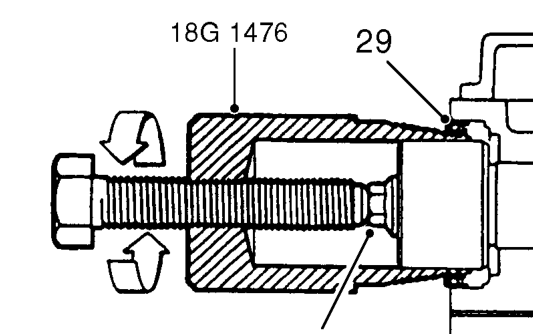

26. Fit and tighten seal remover, tool 18G 1476 to camshaft seal.
27. Tighten seal remover centre screw to remove camshaft seal.
28. Remove seal remover, tool 18G 1476.
29. Remove and discard seal from seal remover tool.
30. Remove and discard camshaft gear retaining bolt.

CAUTION: Ensure camshaft does not rotate.

Refit

1. Clean seal recess.
2. Clean running surface of camshaft.

3. Ensure seal fitting tool 18G 1716 is clean.
4. Locate new oil seal to seal housing, position tool 18G 1716 to seal.

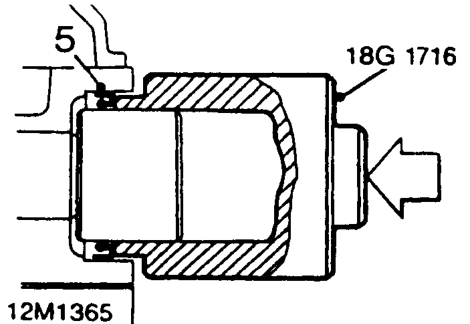

5. Drift seal into housing using tool 18G 1716.

CAUTION: Seal must be fitted dry.

6. Remove tool 18G 1716.
7. Clean camshaft gear.
8. Fit camshaft gear to belt and position gear to camshaft.

CAUTION: Ensure timing marks on camshaft gear and rear cover are aligned.

9. Apply clean engine oil to threads of new camshaft gear bolt.
10. Fit but do not tighten camshaft gear bolt.

CAUTION: Ensure camshaft does not rotate.

NOTE: Bolt is tightened after timing belt has been tensioned.

11. Fit engine RH mounting assembly.
12. Lower engine on jack to align engine mounting assembly.
13. Fit 3 bolts securing engine mounting to engine and tighten to 85 Nm.
14. Fit restraint bar to engine mounting, fit and tighten nuts to 45 Nm.
15. Fit mounting tie bar to body bracket, fit and tighten bolt to 90 Nm.
16. Tighten bolt securing mounting tie bar to mounting to 90 Nm.
17. Remove trolley jack from vehicle.
