Cylinder head gasket (page 9 of 9)

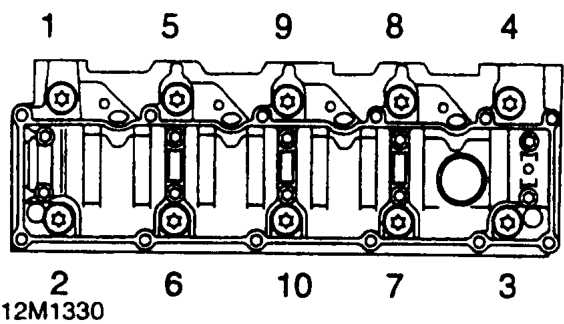

76. Progressively slacken and remove 10 Tx14 Torx cylinder head bolts, working in the sequence shown.

NOTE: Store cylinder head bolts in fitted order, do not remove washers from bolts.

77. Remove cylinder head assembly from cylinder block, use assistance.

CAUTION: Place each end of cylinder head on blocks of wood to prevent damaging valves and glow plugs which protrude below face of cylinder head. If crankshaft is to be rotated, ensure timing pin 18G 1523 is removed prior to rotating crankshaft and is refitted on completion. Do not remove locking pin 18G 1717.

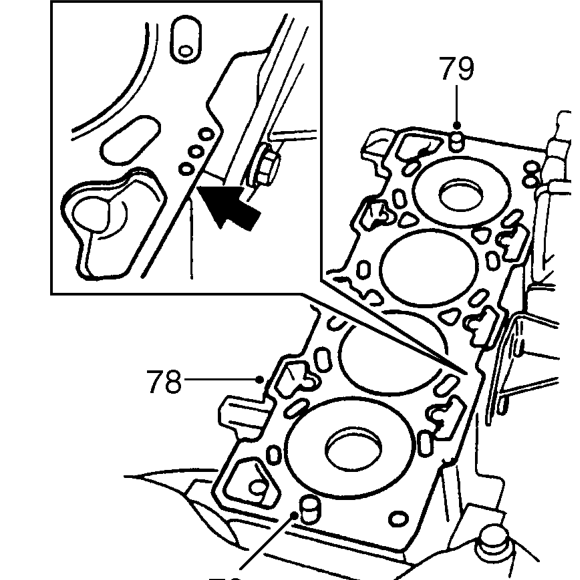

78. Remove cylinder head gasket from cylinder block and discard.

CAUTION: Note the gasket thickness indicator and ensure the same thickness gasket is used on refitment of cylinder head.

79. Remove location dowels from cylinder block.
