Cylinder head gasket (page 7 of 9)

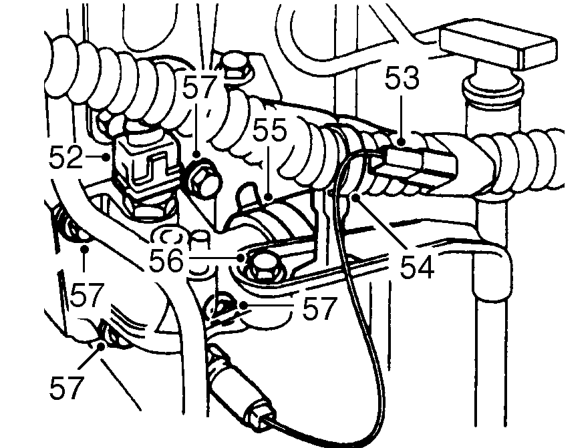

52. Disconnect multiplug from coolant temperature sensor.
53. Disconnect instrument pack temperature gauge sensor connector.
54. Release harness clip from oil level dipstick bracket.
55. Slacken clip and disconnect radiator top hose from coolant outlet elbow.
56. Remove bolt securing oil level dipstick bracket to coolant outlet elbow.
57. Remove 4 bolts securing coolant outlet elbow to cylinder head.

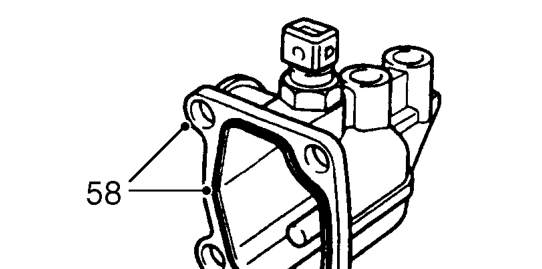

58. Remove coolant outlet elbow, remove and discard seal.
59. Position engine harness aside.
60. Position coolant hose aside.

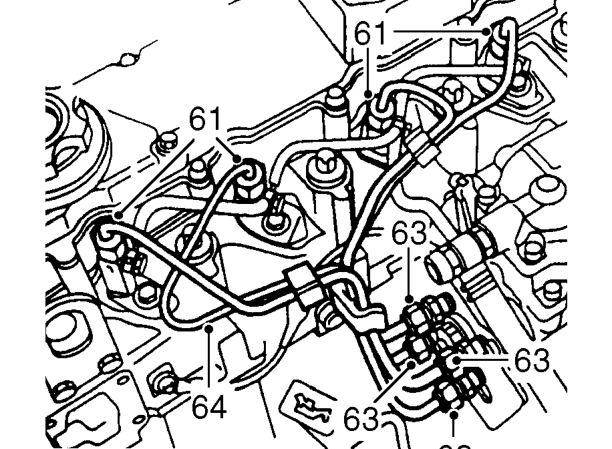

61. Slacken 4 injector pipe unions at injectors.
62. Position absorbent cloth around fuel injection pump pipe unions to catch fuel spillage.
63. Slacken 4 injector pipe unions at injection pump.

CAUTION: To prevent damage to fuel system pipes or components, use two spanners when loosening or tightening unions.

64. Disconnect injector pipe unions from fuel injection pump and injectors, remove injector pipes.

CAUTION: Plug the connections to prevent the ingress of dirt.
