Rover 620 Diesel Repair Manual Supplement (1995-1999)03 · Engine
03 · Engine

Engine and manual gearbox (page 6 of 9)

Make
Rover
Model
600 620 Diesel Repair Manual Supplement
Year
1995–1999
Section
Repairs
EngineEngine and manual gearbox · page 6 of 9
Diagram

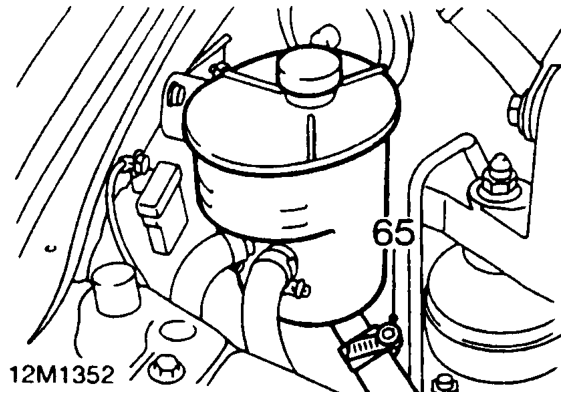

  1. Slacken clip and disconnect PAS pump feed hose from PAS fluid reservoir.

CAUTION: Plug the connections to prevent the ingress of dirt.

Slacken clip and disconnect PAS pump feed hose from PAS fluid reservoir.

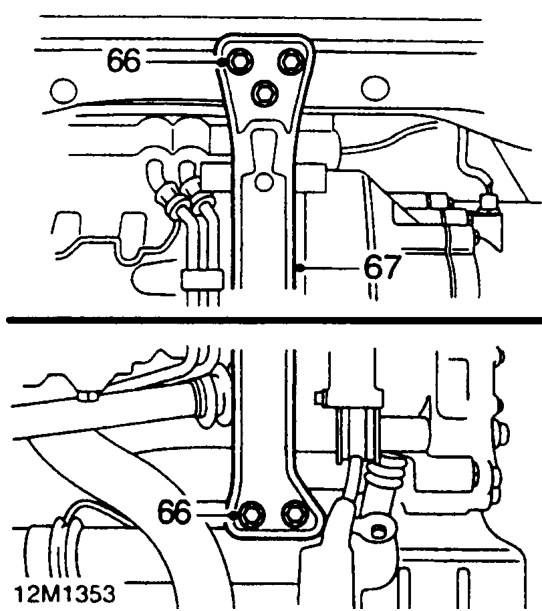

  1. Remove 5 bolts securing centre beam.
  2. Remove centre beam.
  3. Remove exhaust front pipe. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
Remove exhaust front pipe. See MANIFOLD & EXHAUST SYSTEMS, Repairs.

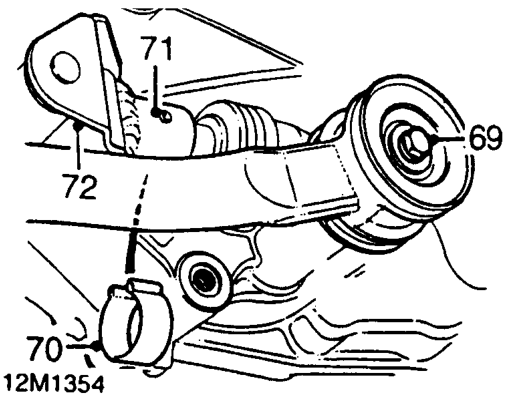

  1. Remove bolt and disconnect gear change steady bar; collect 2 washers.
  2. Remove clip retaining selector rod roll pin.
  3. Using a suitable punch, drive out selector rod roll pin.
  4. Tie selector rod and steady bar aside.
Tie selector rod and steady bar aside.

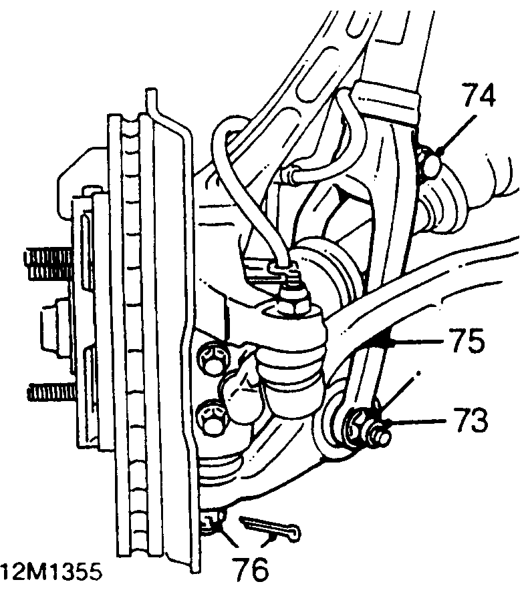

  1. Remove and discard nut and withdraw damper fork bolt from LH lower arm.
  2. Remove pinch bolt from damper fork.
  3. Remove LH damper fork.
  4. Remove split pin from lower ball joint nut, discard split pin and remove castle nut.
