Rover 620 Diesel Repair Manual Supplement (1995-1999)03 · Engine
03 · Engine

Engine and manual gearbox (page 7 of 9)

Make
Rover
Model
600 620 Diesel Repair Manual Supplement
Year
1995–1999
Section
Repairs
EngineEngine and manual gearbox · page 7 of 9
Diagram

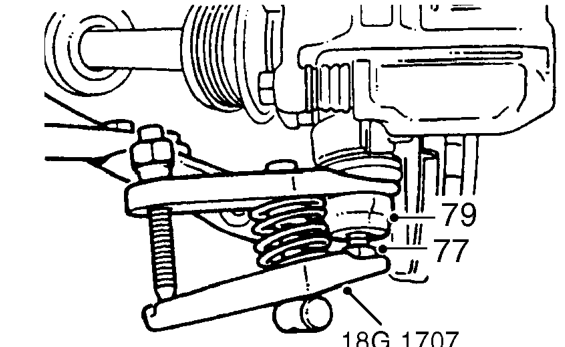

  1. Screw a 12 mm nut onto ball pin end. If necessary, apply penetrating oil to joint.
  2. Break taper joint using tool 18G 1707 and separate ball pin from lower arm.

CAUTION: Ensure cross-bar on tool is at right angles (as shown). Be careful not to damage ball joint boot.

  1. Release LH lower arm ball pin from hub.
Release LH lower arm ball pin from hub.

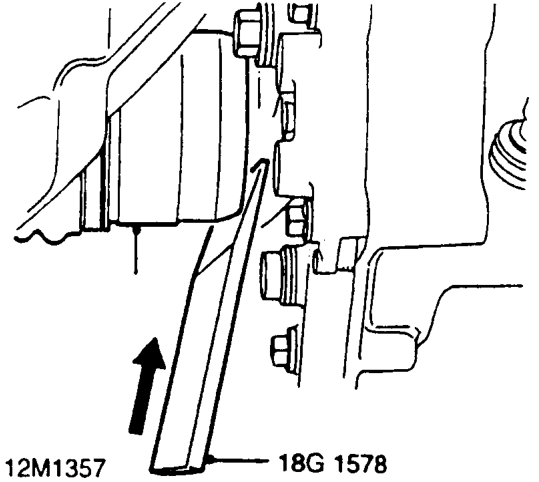

  1. Insert tool 18G 1578 between drive shaft housing and gearbox to disengage drive shaft circlip from differential by pulling on the inboard housing.
Insert tool 18G 1578 between drive shaft housing and gearbox to disengage drive shaft circ

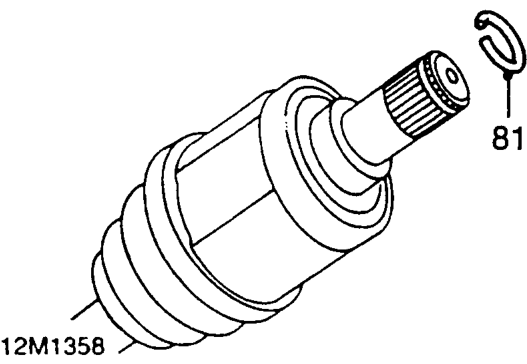

  1. Remove and discard circlip from LH drive shaft.
  2. Fit plastic bag over end of drive shaft.
  3. Repeat above operations and disconnect RH suspension and drive shaft.
Repeat above operations and disconnect RH suspension and drive shaft.

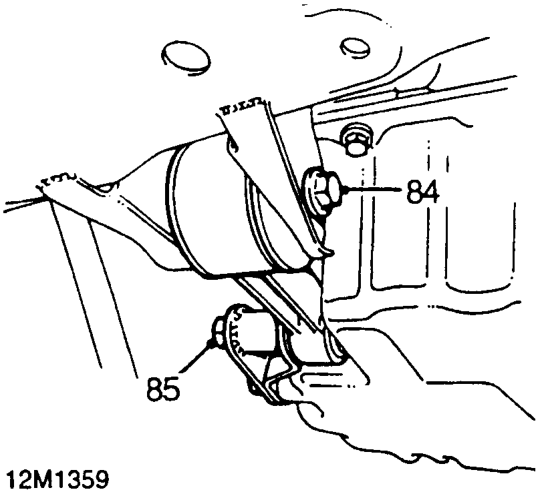

  1. Slacken bolt securing engine lower tie bar to sub-frame.
  2. Remove bolt securing tie bar to sump bracket. Position tie bar away from bracket.
