Torque converter housing - dismantling (page 2 of 2)

8. Remove oil feed pipes from servo valve body and modulator valve body.

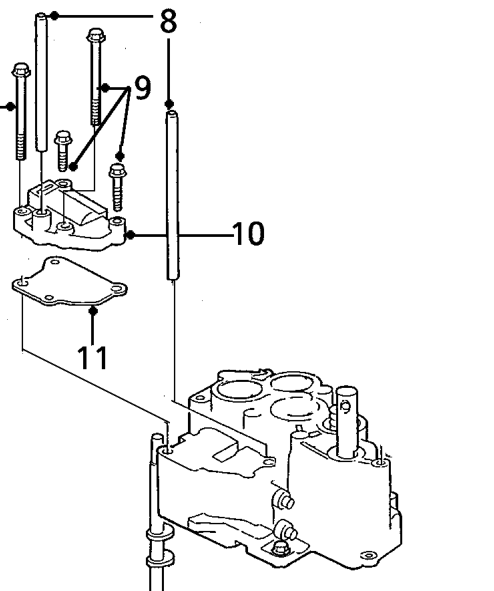

9. Noting their fitted positions, remove 2 long and 2 short bolts securing modulator valve body to servo valve body.
10. Carefully release modulator valve body from servo valve body.

NOTE: Dowel located.

11. Remove modulator valve plate.

CAUTION: Do not carry out further dismantling of modulator valve body at this stage.

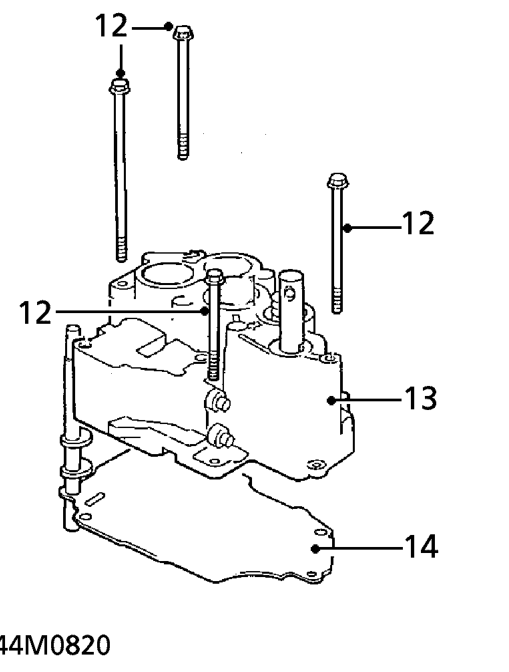

12. Noting their fitted positions, progressively slacken then remove 4 bolts securing servo valve body.
13. Carefully remove servo valve body ensuring that accumulator pistons are not expelled from beneath body.

CAUTION: Retain accumulator pistons and shift fork shaft with servo valve body, do not carry out further dismantling at this stage.

14. Remove servo separator plate together with throttle control shaft.

CAUTION: Ensure 3 check balls are not displaced from secondary valve body as separator plate is removed.
