Transporting the automatic gearbox
Transporting the automatic gearbox
Check the tool and equipment equivalence table according to the applicability among Seat / VW / Audi / Skoda → Chapter.

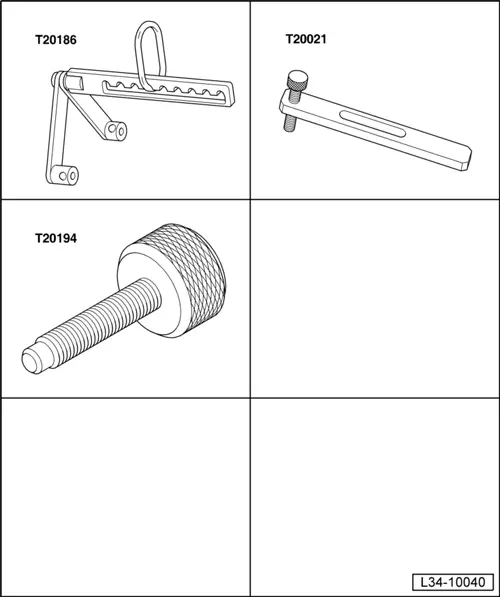

Special tools and workshop equipment required
t  Support tool -T20186-, see equivalent → Anchor
t  retention tool -T20021-
t  Counterhold -T20194-, see equivalent → Anchor
t  Workshop crane

Procedure
To transport the automatic gearbox the support tool -T20186- may be used.
  Note
So that it does not fall during transport, adequately secure the torque converter using the fitting tool -T20021- and the support tool -T20194- → Chapter.

–  Secure the support tool -T20186- to the gearbox.
  WARNING
When transporting, take care not to damage the ATF radiator.
  E37-10002
