Note
|

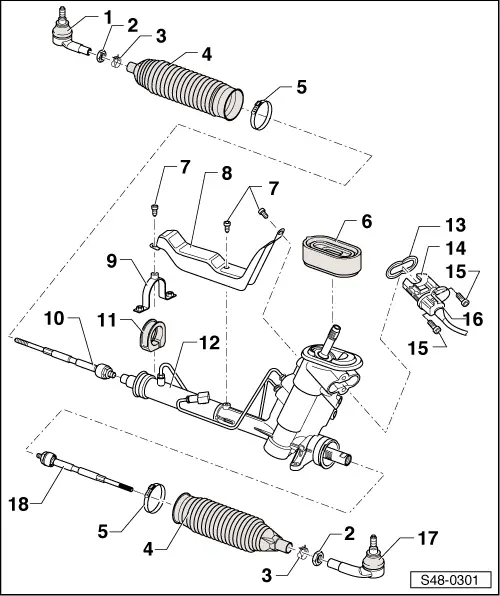

| Summary of components of power-steering gear TRW |
| 1 - | Right track rod end |
| q | check → Chapter |
| q | removing and installing → Chapter |
| q | before installing, remove grease on tapered stud |
| 2 - | Counternut, 50 Nm |
| 3 - | Spring clip |
| q | use assembly pliers for removing and installing |
| 4 - | Bellows |
| q | Can only be replaced with the power steering gear removed |
| q | before removing boot detach the track-rod end → Chapter |
| q | must not be twisted |
| q | inspect for wear and damage (cuts, splits) |
| 5 - | Open warm-type clamp |
| q | replace after each removal |
| q | removing: open with cutting pliers |
| q | tensioning → Chapter |
| 6 - | Gasket |
| q | Observe mounting instructions → Chapter |
| q | Assignment → Electronic Catalogue of Original Parts |
| 7 - | Self-tapping screw, 6 Nm |
| q | for attaching heat shield |
| q | only for vehicles up to 11/2006 |
| 8 - | Heat shield |
| q | Assignment → Electronic Catalogue of Original Parts |
| q | only for vehicles up to 11/2006 |
| 9 - | Clamp |
| Fitting position: |
| t | inscription must point in direction of travel |
| t | replace if thread of stamp nut damaged |
| 10 - | Right track rod |
| q | Tightening torque on steering rack: 80 Nm |
| q | removing and installing → Chapter |
| q | track rod and track rod end are supplied as replacement part pre-set |
| q | lock nut for track rod/track rod end on replacement parts tightened initially only to 10 Nm. |
| After installing the replacement track rod/track rod end and track adjuster, tighten lock nut fully to 50 Nm. |
| q | Setting the wheel toe → Chapter |
| 11 - | Rubber bearing |
| Fitting position: |
| t | the larger internal diameter points towards the outer side of the vehicle |
| t | replace if damaged or worn |
| 12 - | Power-steering gear |
| q | Assignment → Electronic Catalogue of Original Parts |
| q | no provision made for repairs |
| q | removing and installing → Chapter |
| q | adjust → Chapter |
| q | Inspecting centre position → Chapter |
| 13 - | Gasket |
| q | replace after each removal |
| 14 - | Sensor for power steering -G250- |
| q | with adapter cable |
| q | removing and installing → Chapter |
Note| No longer applicable as of CW 4 2010 on vehicles with ESP. |
| 15 - | Screw, 6 Nm |
| 16 - | Line |
| 17 - | Left track rod end |
| q | check → Chapter |
| q | removing and installing → Chapter |
| q | before installing, remove grease on tapered stud |
| 18 - | Left track rod |
| q | Tightening torque on steering rack: 80 Nm |
| q | removing and installing → Chapter |
| q | track rod and track rod end are supplied as replacement part pre-set |
| q | lock nut for track rod/track rod end on replacement parts tightened initially only to 10 Nm. |
| After installing the replacement track rod/track rod end and track adjuster, tighten lock nut fully to 50 Nm. |
| q | Setting the wheel toe → Chapter |
