Roomster

Remove reservoir TRW
Remove reservoir TRW
–  Removing engine pump aggregate → Chapter.
After extraction of the hydraulic oil there will be residues in the engine pump aggregate.
–  Close screw connection for the pressure line at the engine pump aggregate.
–  Remove holder of engine pump aggregate according to the summary of components of the engine pump aggregate → Chapter.

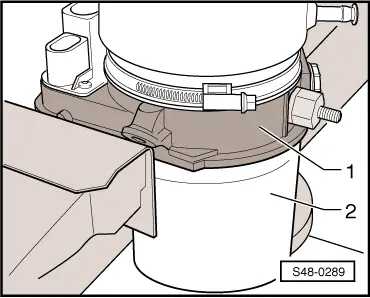

–  Clamp the engine pump aggregate in a vice with protective jaws.
  Note
t  The engine pump aggregate must only be clamped at the power steering control unit -J500- Pos. -1-, on no account at the housing -2-.
t  The housing -2- must not rest against the vice or against the work bench.
t  A non-observance of the mentioned safety measures leads to a non-repairable damage at the engine pump aggregate.
  S48-0289

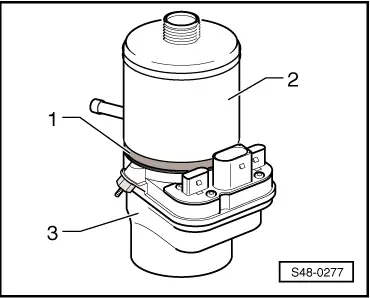

–  Open clamp -1- and remove upwards.
  WARNING
Wear gloves when heating and pulling off the reservoir.
–  Heat the reservoir -2- in the lower area evenly all around with a hot-air blower e.g. -V.A.G 1416-
  Caution
The reservoir must be heated up to maximum 80°C.
–  Detach reservoir -2- from engine pump aggregate -3-.
  S48-0277
