Summary of components of engine pump aggregate TRW

Summary of components of engine pump aggregate TRW
The engine pump aggregate:
t  Is a complete component consisting of the steering hydraulics pump -V119- (electric motor and gear rack pump), the power-steering control unit -J500- and the hydraulic oil reservoir.
t  It is has a re-engaging protection after faults, failure or crash → Chapter.
  Note
t  No provision is made for repairing at the engine pump aggregate.
t  The cause of any problems which may be arising is determined by the pressure and tightness test.
t  If there is insufficient hydraulic oil in the reservoir always check the steering system for tightness.
t  If there is a leak in the area of the line connection first check the lines/line connections for tightness, if necessary retighten and wipe dry.
t  Do not use drained hydraulic oil again.
t  Always replace gasket rings.
t  Oil type: hydraulic oil → Chapter

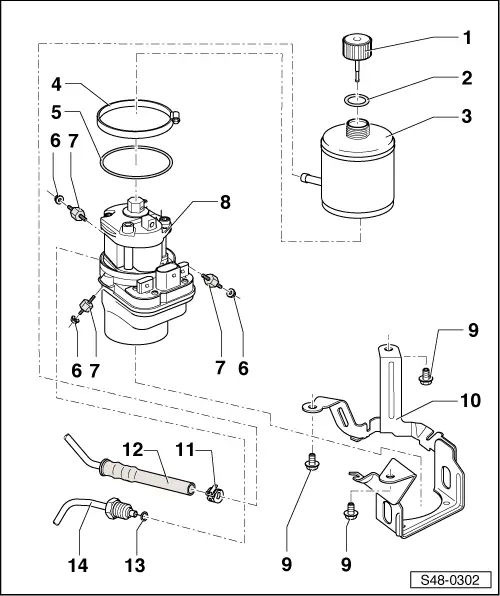

1 - Screw cap
q   with oil dipstick
2 - Sealing ring
3 - Reservoir
q   replace → Chapter
4 - Clamp
q   replace after each removal
q   different versions
q   Assignment → Electronic Catalogue of Original Parts
q   Tightening torque: 3 Nm
5 - Sealing ring
q   different versions
q   Assignment → Electronic Catalogue of Original Parts
6 - Nut, 7 Nm
q   when tightening counterhold on rubber bearing - Pos. 7
7 - Rubber bearing
q   Tightening torque: 7 Nm
q   in case of damage (tears in rubber, rubber torn away from metal plate) - replace
8 - Engine pump aggregate
q   includes the steering hydraulics pump -V119- and power-assisted steering control unit -J500-
q   no provision made for repairs
q   Replacing reservoir → Chapter
q   check → Chapter
q   Self-diagnosis → Chapter
q   removing and installing → Chapter
9 - Screw, 20 Nm + 90°
q   replace after each removal
10 - Support
q   for engine pump aggregate
11 - Spring clip
q   install with assembly pliers
12 - Return-flow line
q   power-assisted steering gear - engine pump aggregate
13 - O-ring
q   replace after removing the pressure line
14 - Pressure line
q   Tightening torque of the pipe screws: 30 Nm
q   Engine pump aggregate - Power-steering gear
