Alfa Romeo 145/146 Engines, 146 Bodywork and Engine Overhaul Manual (1994-2001)12 · Engine overhaul: 3.0 V6 (AR16101)
12 · Engine

Crankshaft refitting (page 2 of 3)

Make
Alfa Romeo
Model
145/146 Engines, 146 Bodywork and Engine Overhaul Manual
Year
1994–2001
Section
Overhauling
Engine overhaul: 3.0 V6 (AR16101)Crankshaft refitting · page 2 of 3

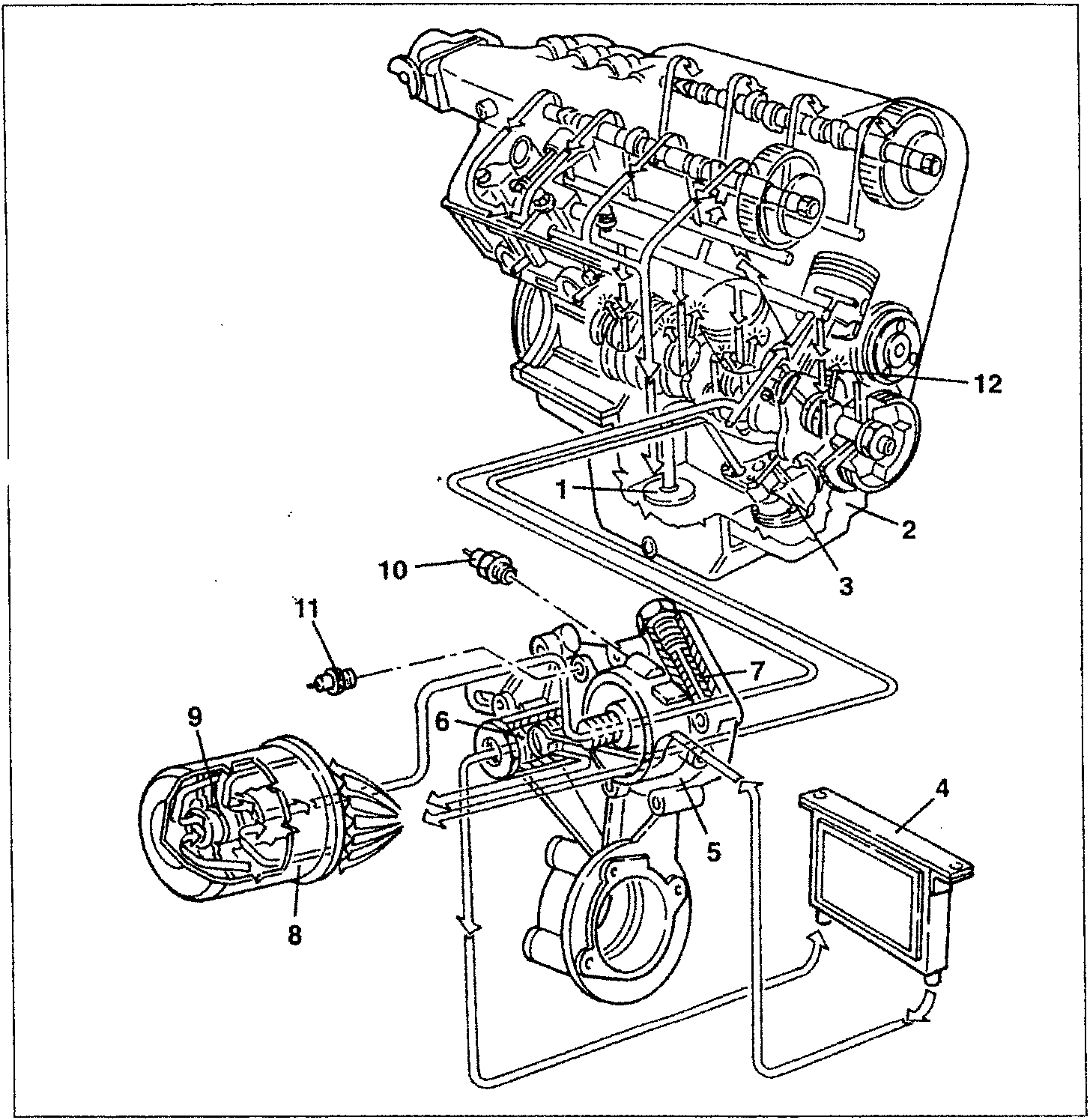

Engine diagram showing components including suction device, oil sump, oil pump, oil radiator, oil filter support, thermostatic valve, oil pressure limiting valve, oil filter, by-pass valve, engine oil temperature transmitter, low engine pressure warning light sensor, and spray jets.
  1. Suction device
  2. Oil sump
  3. Oil pump
  4. Oil radiator
  5. Oil filter support
  6. Thermostatic valve
  7. Oil pressure limiting valve
  8. Oil filter
  9. By-pass valve
  10. Engine oil temperature transmitter
  11. Low engine pressure warning light sensor
  12. Spray jets
