50 Heating, ventilation and air conditioningDis-assembly

DIS-ASSEMBLY

NOTE: The following procedure should be followed to disassemble the unit when changing single components.

Some parts however, may be changed without removing the unit, as described in the following paragraphs.

Air duct

  1. Remove the two lower air ducts.

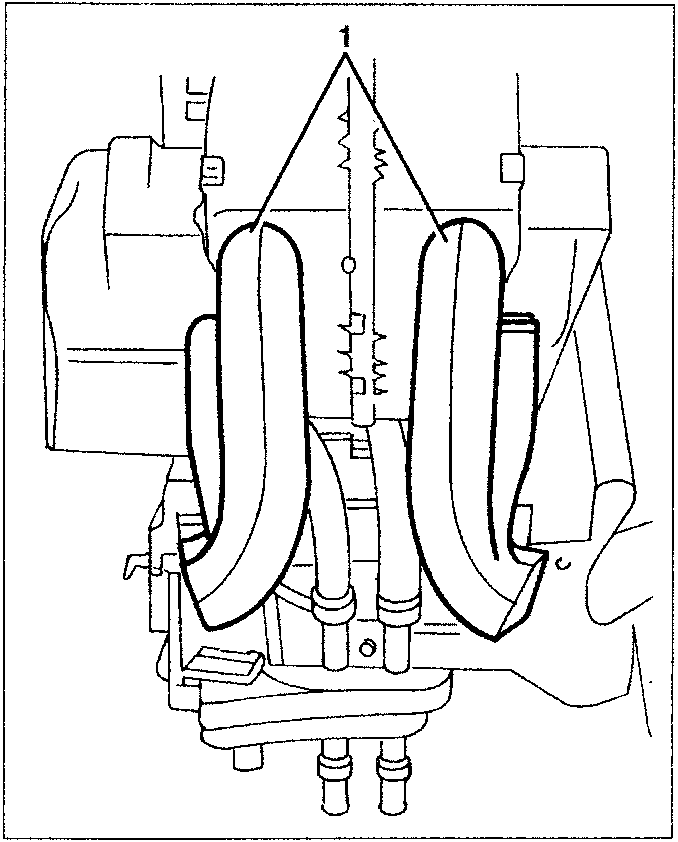

Air duct showing two lower ducts labeled 1

Wiring

  1. Disconnect the two electrical connections from the climate controls

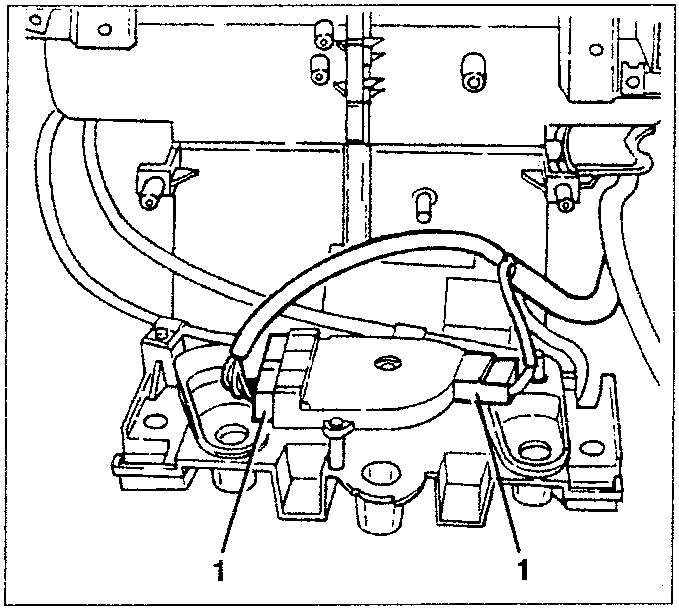

Wiring diagram showing two electrical connections labeled 1

Relay support bracket

  1. Slacken the screw fastening the relay support bracket

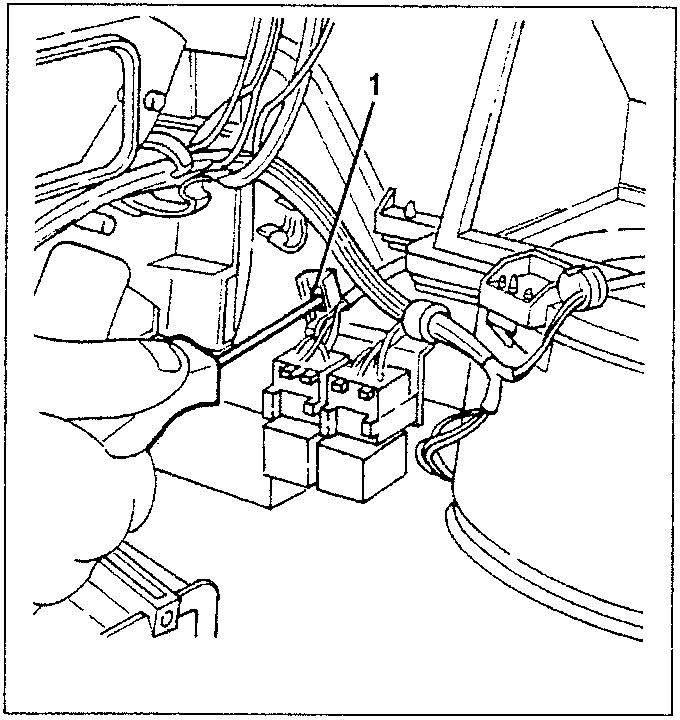

Relay support bracket with screw labeled 1

Recirculation control motor

  1. Disconnect the electrical connection of the recirculation control motor

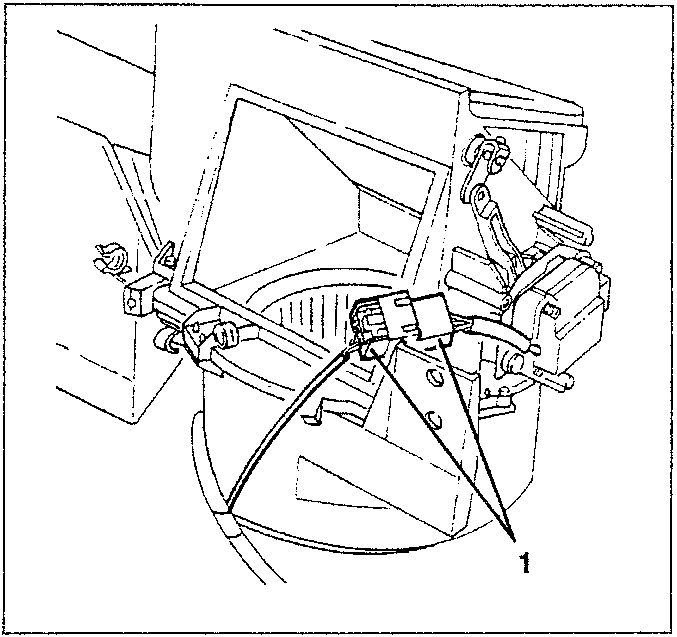

Recirculation control motor with electrical connection labeled 1
