"RECIRCULATION" FUNCTION

The recirculation function makes it possible to withdraw the air to be treated from inside the passenger compartment, thereby shutting off the flow of air from outside which under certain circumstances might be unwanted: bad smells, smoke, unventilated tunnels, etc..

Recirculation is also useful during prolonged use of the air conditioner: when the outside temperature is high and the inside temperature has stabilized at satisfactory values, the recirculation system "saves" the conditioning system.

NOTE: As a change of air is necessary, the recirculation system should not be left engaged for too long.

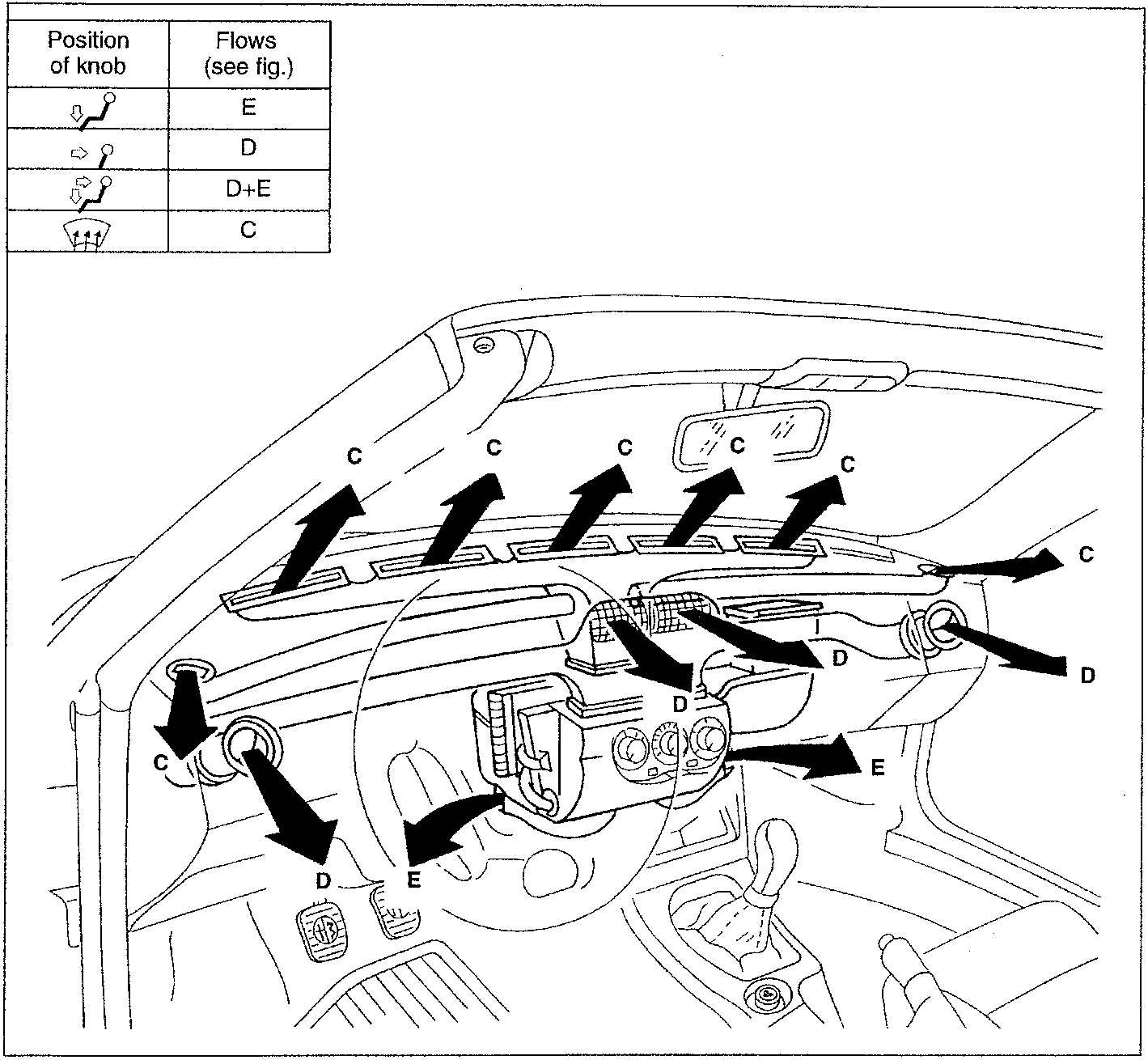

AIR FLOWS IN THE PASSENGER COMPARTMENT

Position
of knob		 Flows
(see fig.)
[symbol]E
[symbol]D
[symbol]D+E
[symbol]C
Diagram showing air flows in the passenger compartment with labeled vents C, D, and E.
