Alfa Romeo GTV and Spider (916) Factory Service Manual (1995-2000)14 · 50 Heating, ventilation and air conditioning
14 · Heating & A/C

Fan

Make
Alfa Romeo
Model
GTV / Spider GTV and Spider (916) Factory Service Manual
Year
1995–2000
Section
Heating and ventilation › Fan
50 Heating, ventilation and air conditioningFan

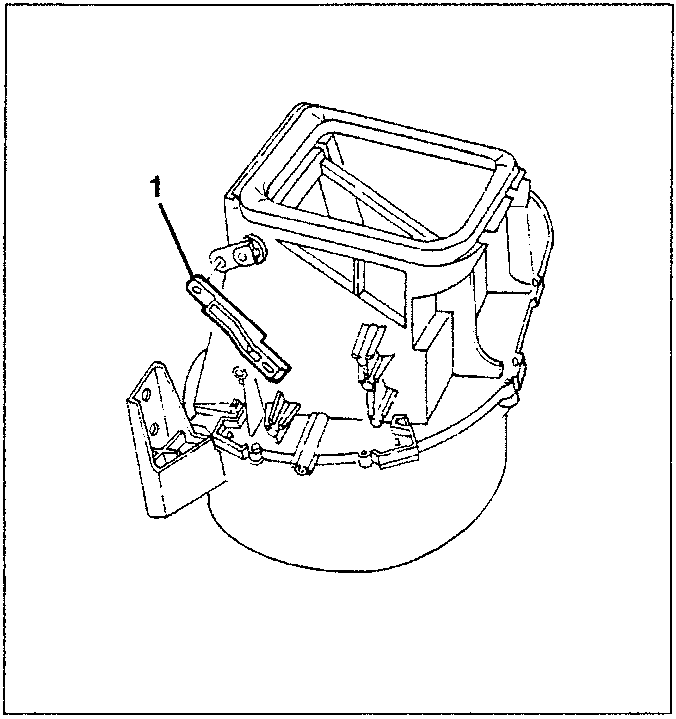

  1. Remove the outside air/recirculation port tierod.
Diagram showing removal of outside air/recirculation port tierod

Fan

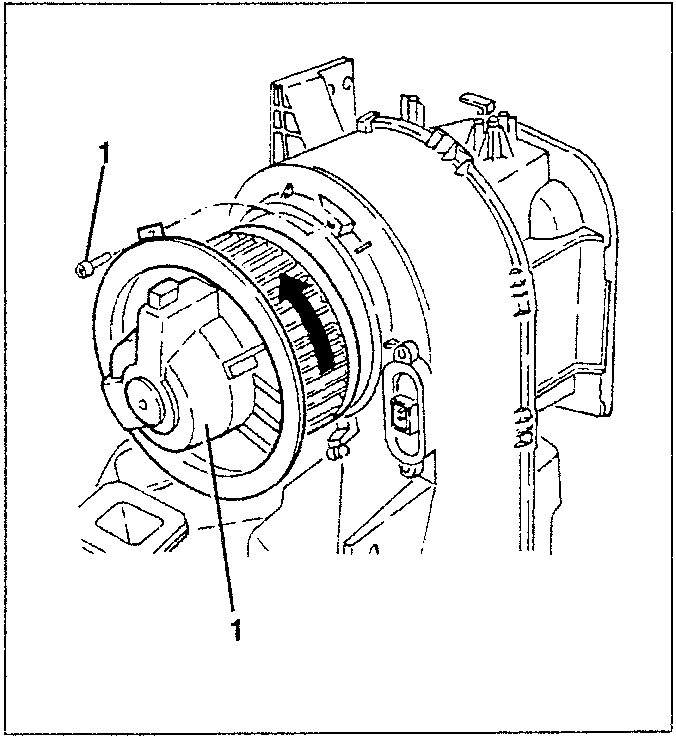

  1. Slacken the screw fastening the fan, turn it as illustrated, then remove it.
Diagram showing fan with screw to be slackened and turned

Fan resistance

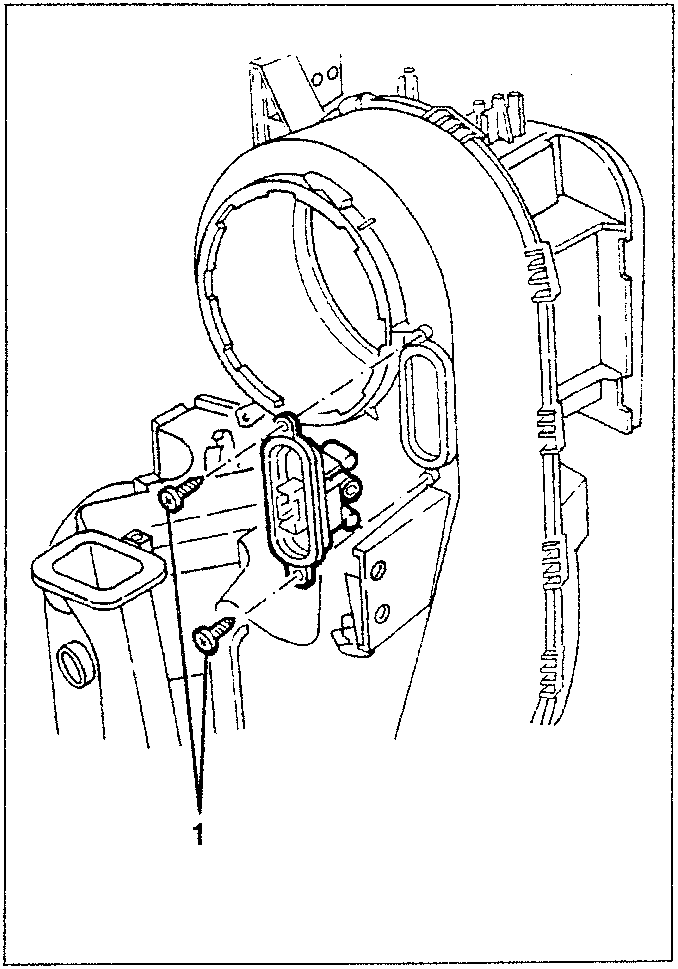

  1. Slacken the two fastening screws and remove the fan resistance.
Diagram showing fan resistance with two fastening screws

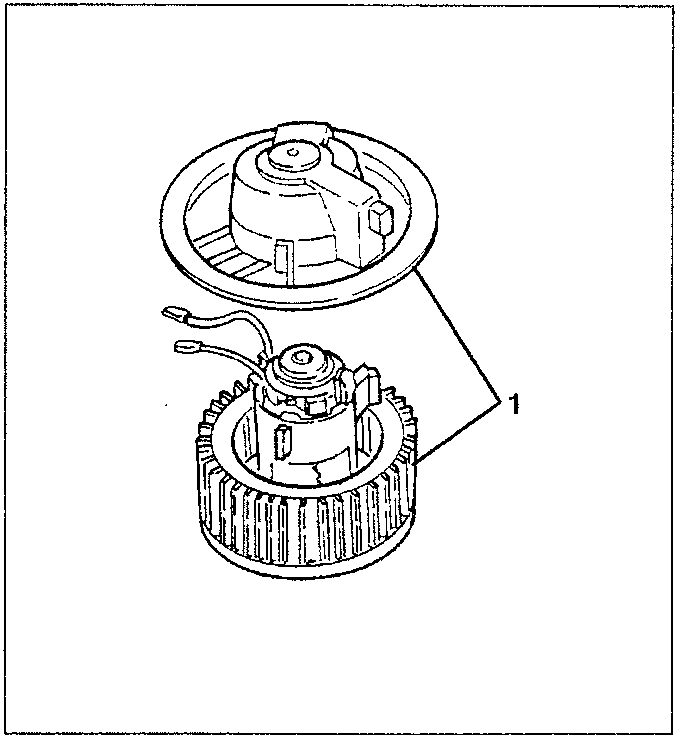

  1. Separate the fan from the cover releasing it from the three rubber fasteners and withdrawing the two electrical cables.
Diagram showing fan separated from cover with electrical cables
