On-vehicle operations

ON-VEHICLE OPERATIONS

CLIMATE CONTROL UNIT CONTROLS

Removal and Refitting

• Disconnect the negative terminal from the battery
• Remove the centre console (see GROUP 70).

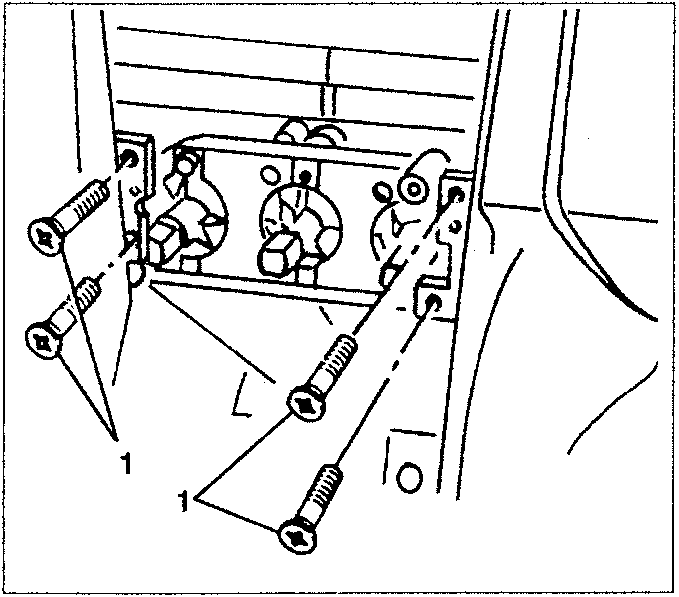

1. Slacken the four fastening crews and remove the controls.

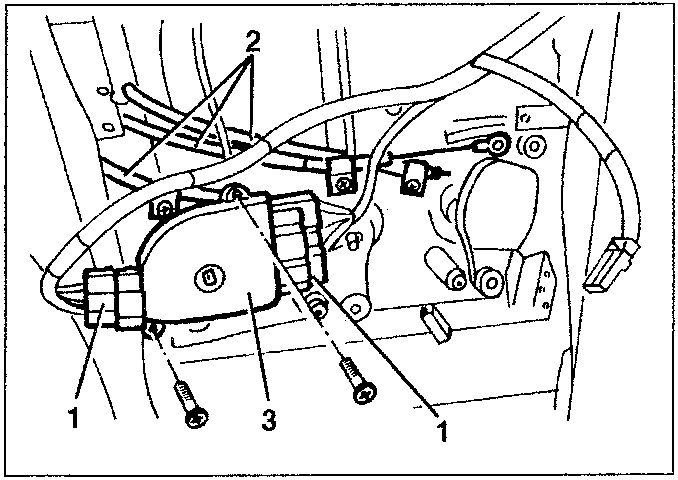

1. Disconnect the two electrical connections.
2. Release the three bowden cables loosening the fastening clamps and removing the end ring fastening washers.
3. Slacken the two fastening screws and remove the climate control fan speed switch.

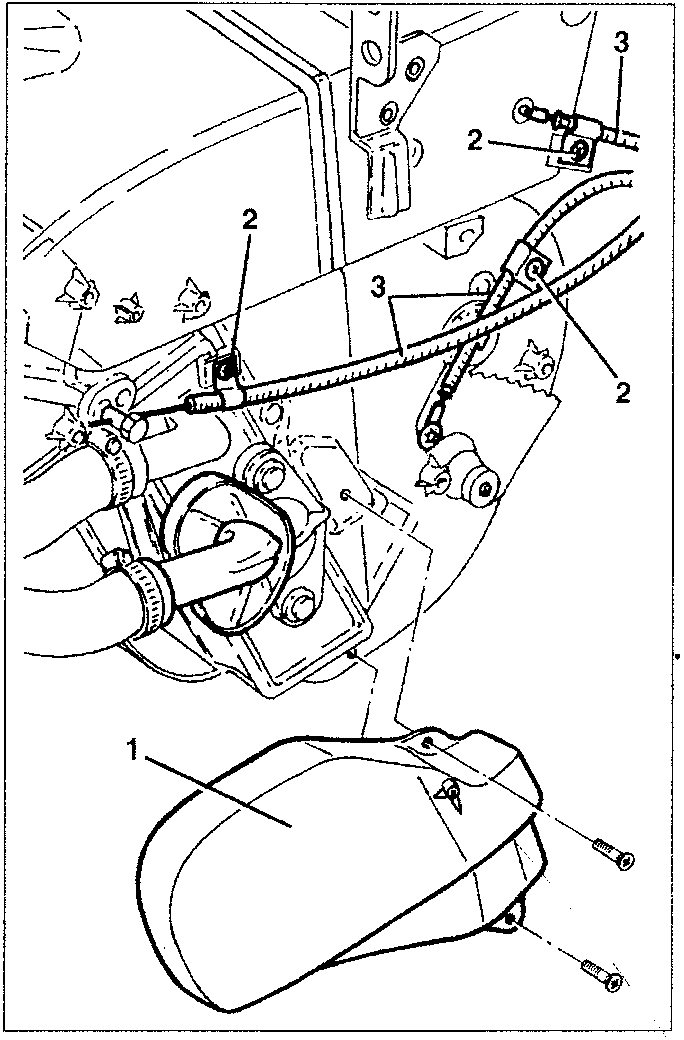

If necessary remove the three bowden cables of the mixing and distribution ports:

1. Slacken the two fastening screws and remove the side cover.
2. Slacken the cable fastening clamps.
3. Remove the bowden cables.

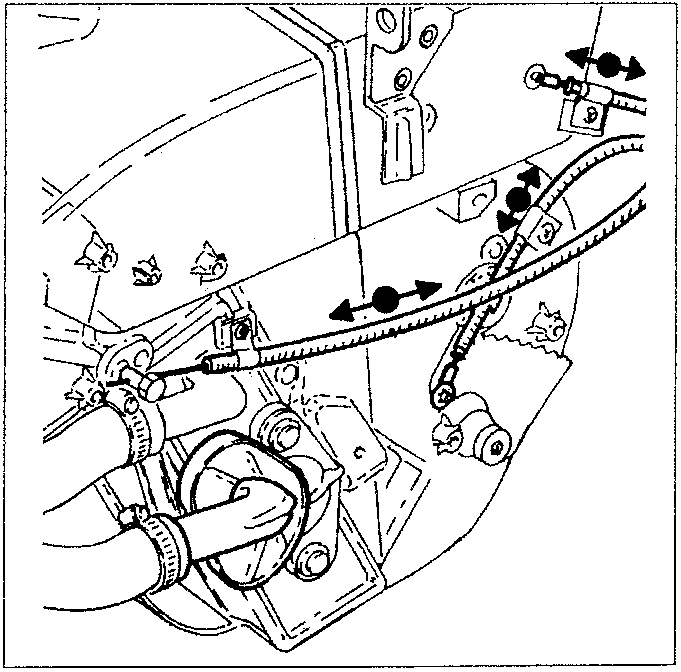

Refit the bowden cables adjusting them as illustrated before fastening them from the radiator side.
