LOCATION OF COMPONENTS

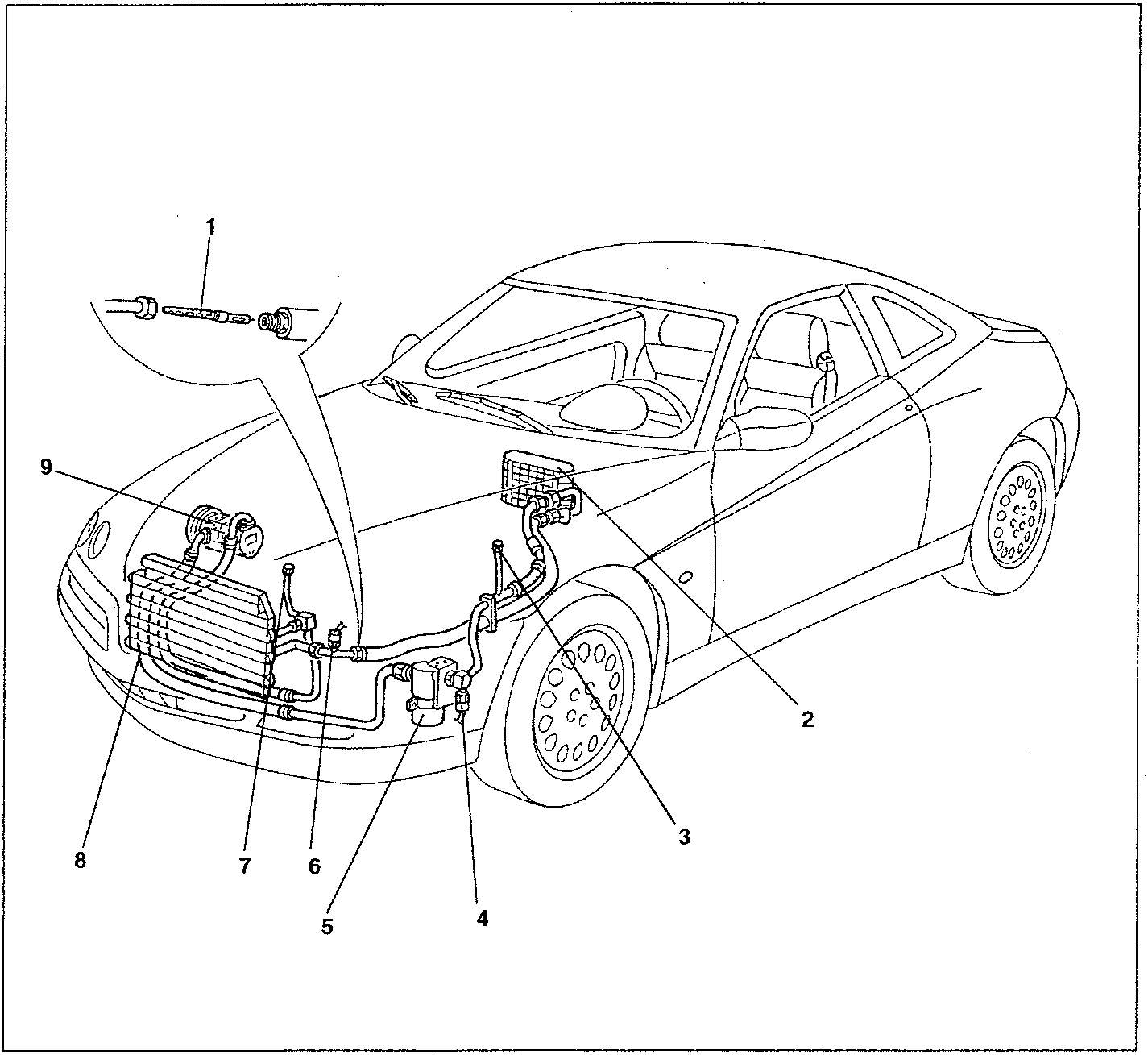

Line drawing of a car with numbered components in the heating and ventilation system.
  1. Expansion valve
  2. Evaporator
  3. Needle valve on low pressure pipe
  4. Antifrost pressure switch (engine 2.0 T.S.16v only)
  5. Drier filter
  6. Three/four levels pressure switch
  7. Needle valve on high pressure pipe
  8. Condenser
  9. Compressor
