Refitting

N.B.: In the VERSIONS WITH HEATER work directly from below disconnecting the engine coolant delivery and return pipes.

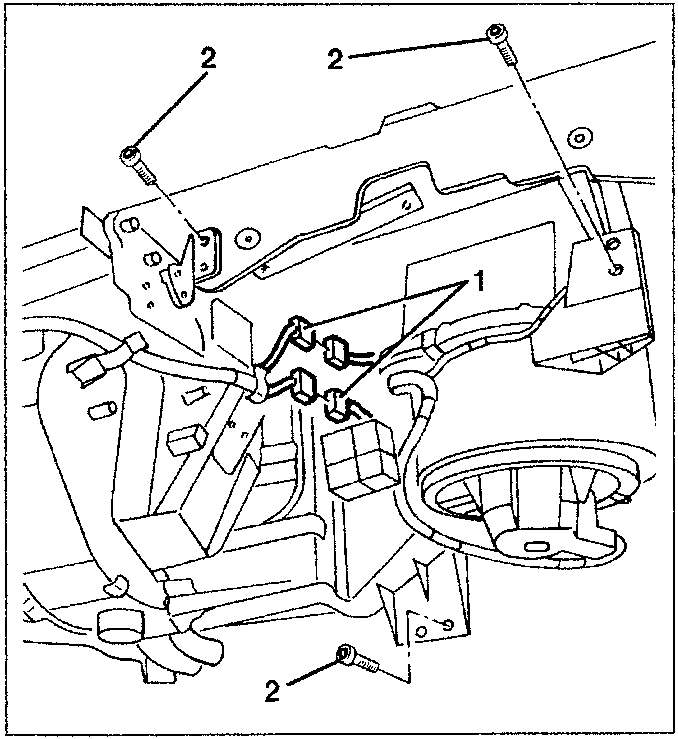

1. Disconnect the two electrical connections of the climate control unit (connections between the unit and the dashboard wiring).
2. Slacken the three screws fastening the climate control unit on the right-hand side.

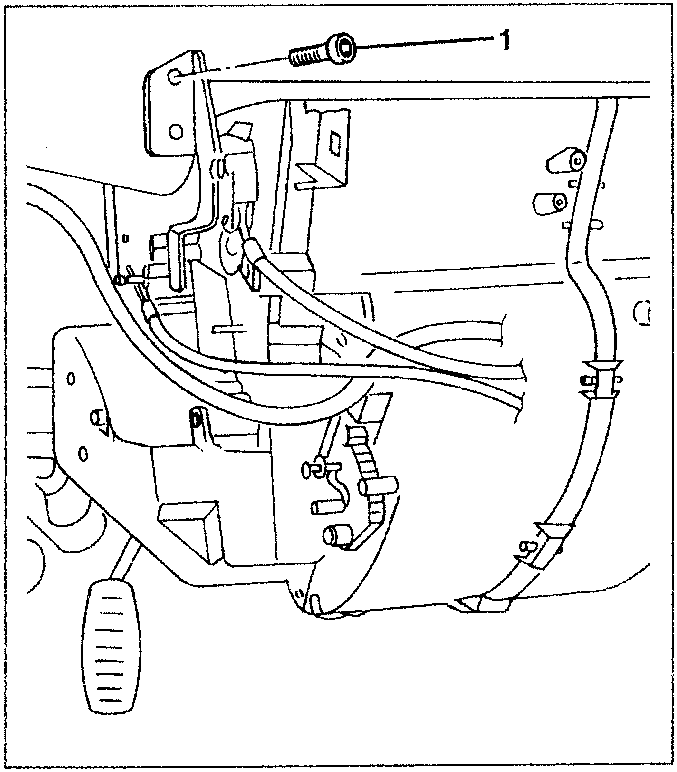

1. Slacken the screw fastening the climate control unit on the left-hand side.

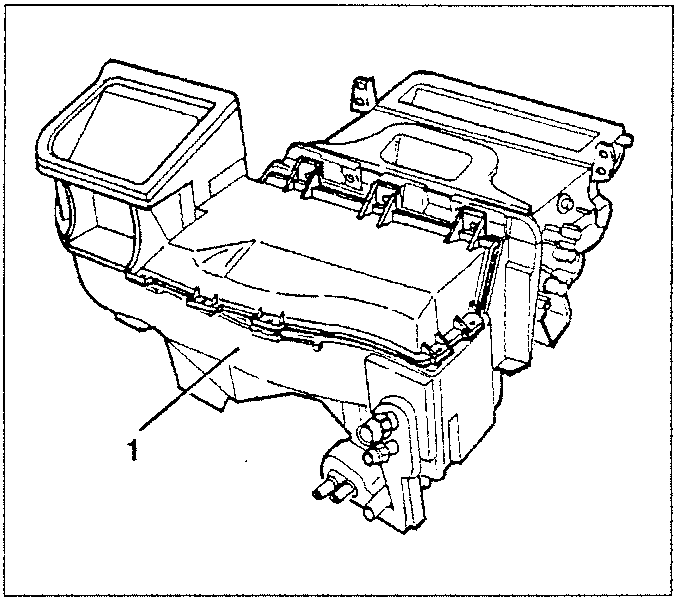

1. Remove the climate control unit.

REFITTING

Refit the climate control unit reversing the sequence followed for removal and adhering to the following instructions:

• Coat the mouth of the heater pipes, water drain pipes and freon pipes with vaseline.
• Assemble the unit making sure that the above pipes are inserted correctly in the holes.

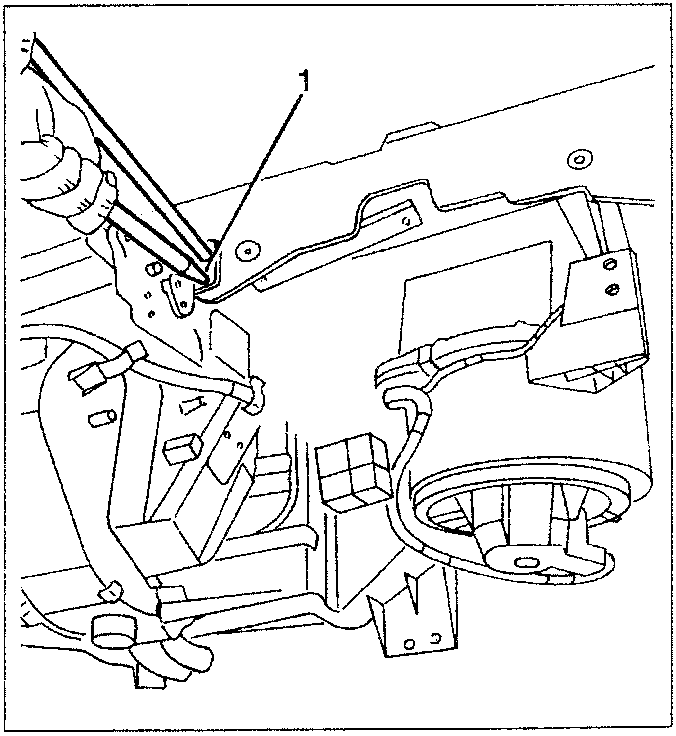

1. Using two special centering pins, positioned as illustrated, centre the position of the unit before fastening it.
