FAN

Removal and Refitting

  • Disconnect the battery negative terminal.
  1. Disconnect the electrical connection.
  2. Remove the safety screw and raise the tab.
  3. Turn the fan as illustrated and remove it.

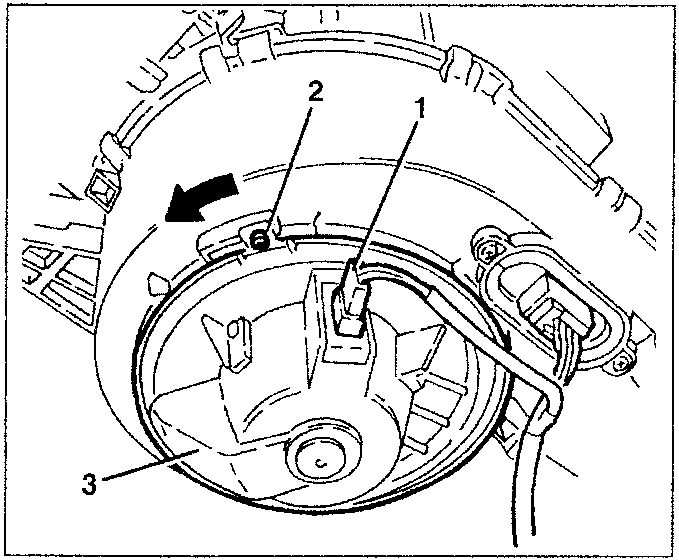

Fan removal diagram showing numbered parts 1, 2, and 3 with an arrow indicating turning direction.

FAN RESISTANCE

Removal and Refitting

  • Disconnect the battery negative terminal.
  1. Disconnect the electrical connection from the fan resistance.
  2. Slacken the two fastening screws and remove the fan resistance.

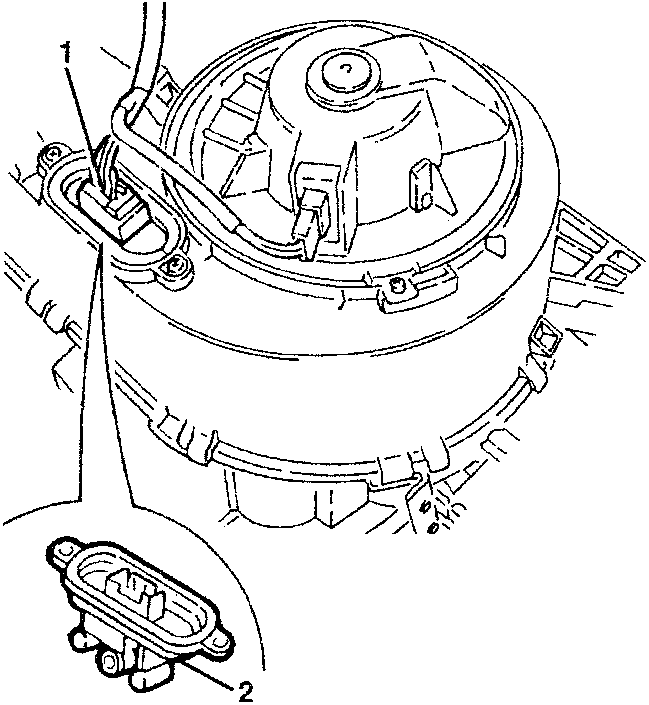

Fan resistance removal diagram showing numbered parts 1 and 2.

RADIATOR AND HEATER

Removal and Refitting

  1. Remove the side cover, slackening the two fastening screws.
  2. Remove the steering reaction rod.

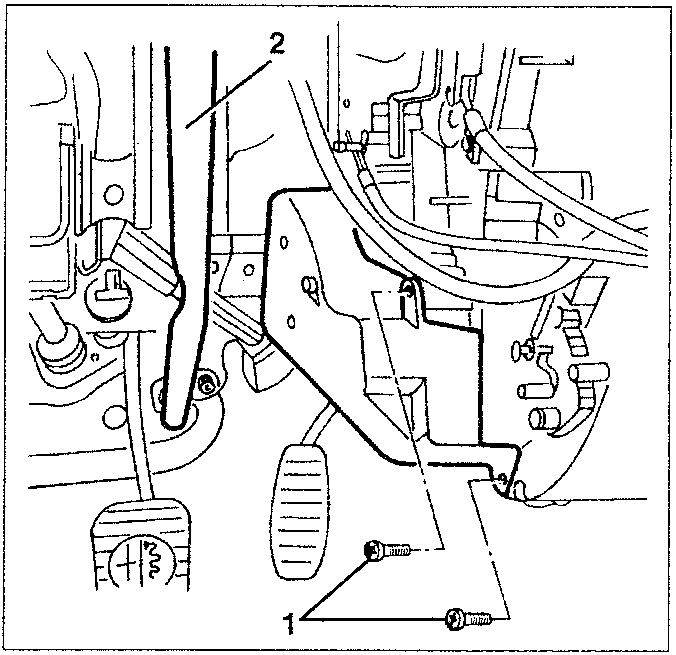

Radiator and heater removal diagram showing numbered parts 1 and 2.

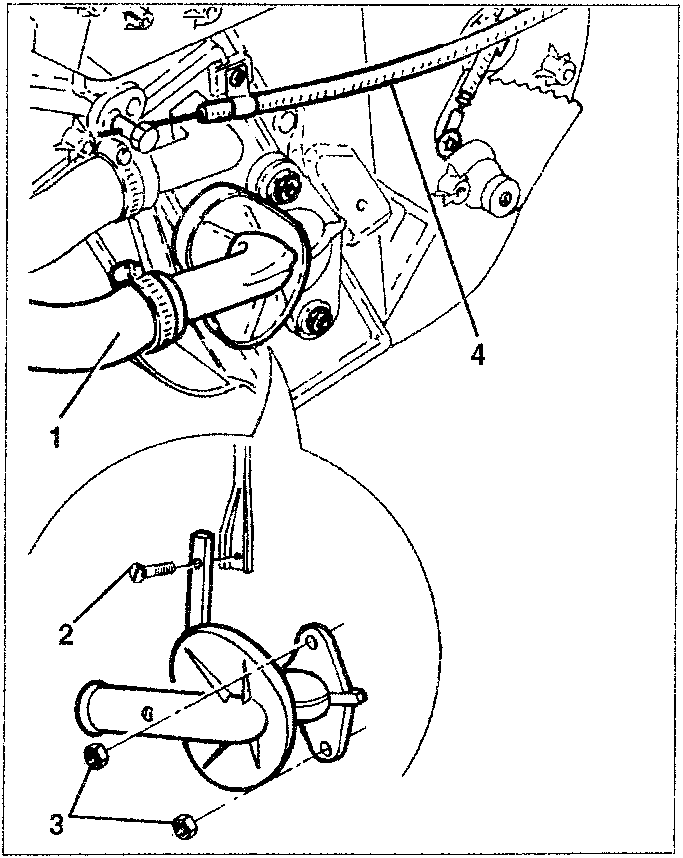

  1. Disconnect the pipe from the water inlet tap and retrieve it.
  2. Slacken the screw fastening the tierod.
  3. Slacken the two tap fastening nuts, then remove it.
  4. Disconnect the bowden cable.
Radiator and heater removal diagram showing numbered parts 1, 2, 3, and 4.
