50 Heating, ventilation and air conditioningEvaporator

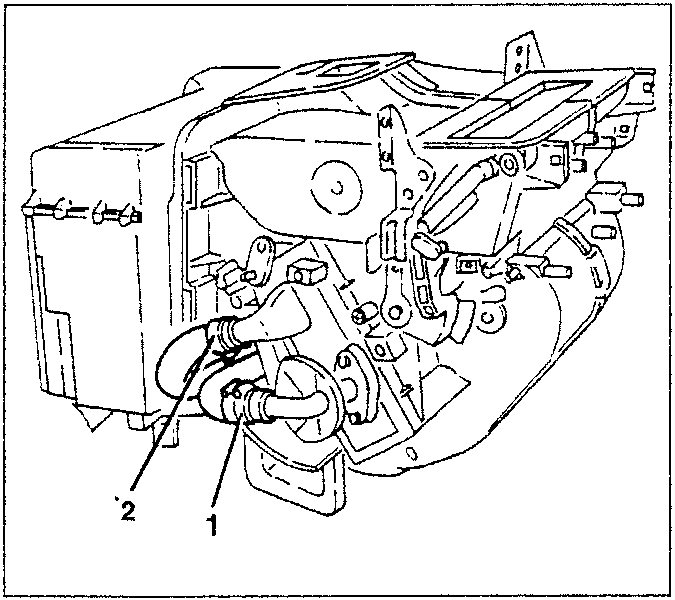

- Open the clamp and disconnect the water inlet pipe from the tap.
- Open the clamp and disconnect the water outlet pipe.
When refitting use screw clamps.

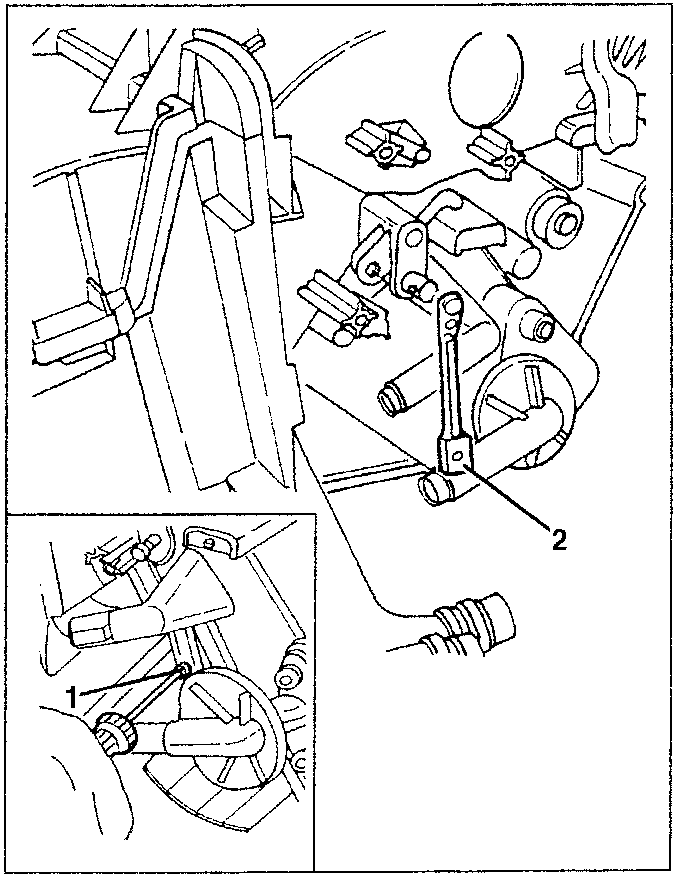

- Slacken the screw fastening the radiator water inlet tap control tierod.
- Disconnect and remove the tierod.

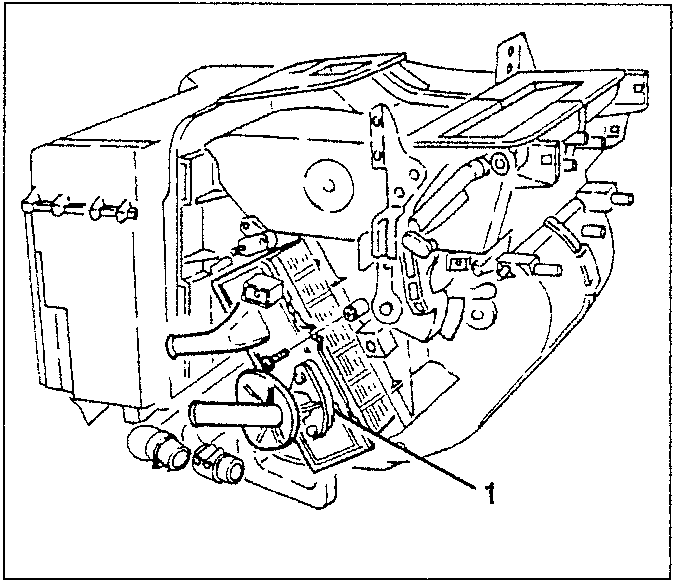

- Slacken the two fastening screws and remove the radiator.
Evaporator

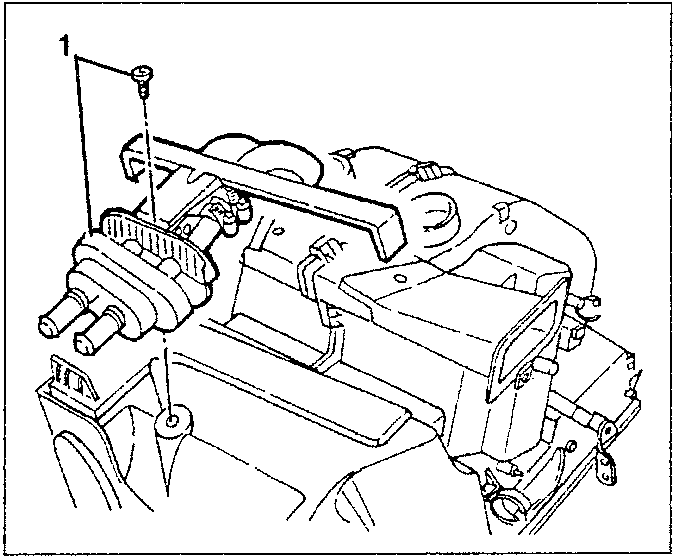

- Slacken the fastening screw and remove the coolant fluid delivery and return pipes.
