Aston Martin DB7 Factory Workshop Manual Volume 2: Electrics, Body and Air Conditioning (1994-1998)05 · Diagnostic system (PDU)
05 · Diagnostics

Component Identification (page 2 of 4)

Make
Aston Martin
Model
DB7 Factory Workshop Manual Volume 2: Electrics, Body and Air Conditioning
Year
1994–1998
Section
Installation instructions
Diagnostic system (PDU)Component Identification · page 2 of 4

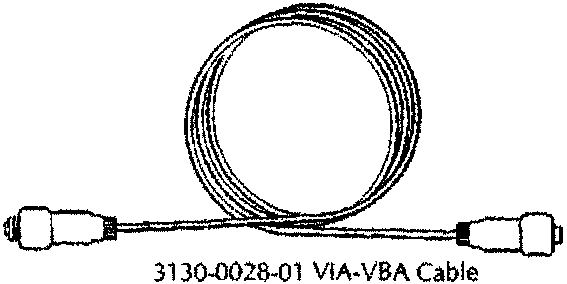

Coiled cable with two connectors labeled 3130-0028-01 VIA-VBA Cable
  1. 3130-0028-01 VIA-VBA Cable

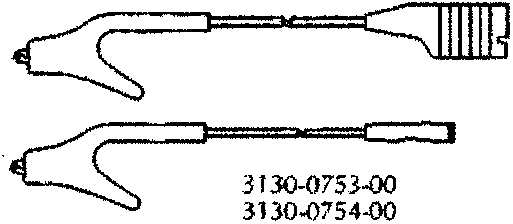

Two clips labeled 3130-0753-00 and 3130-0754-00
  1. 3130-0753-00
  2. 3130-0754-00

Red and Black Croc Clips

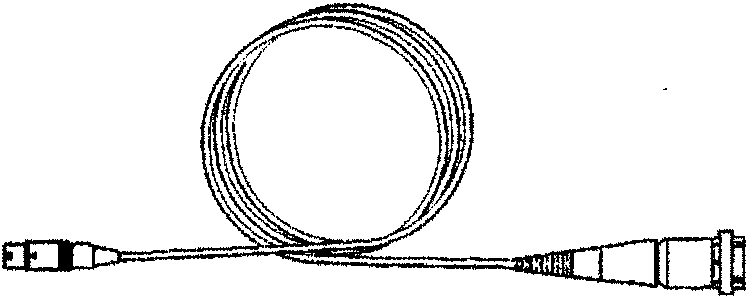

Coiled cable with one connector labeled 3130-0756-00 Transmission Test Cable
  1. 3130-0756-00 Transmission Test Cable

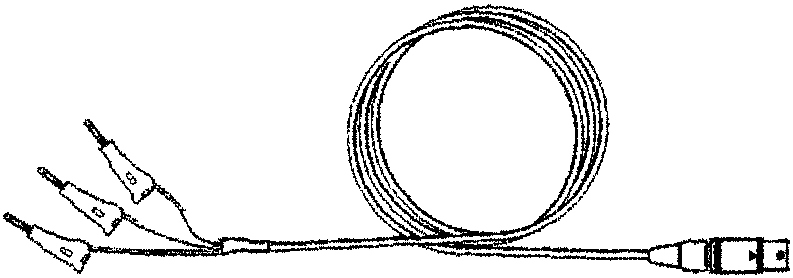

Coiled cable with three clips labeled 3130-0026-01 Scope and Self Test Adaptor Cable
  1. 3130-0026-01 Scope and Self Test Adaptor Cable

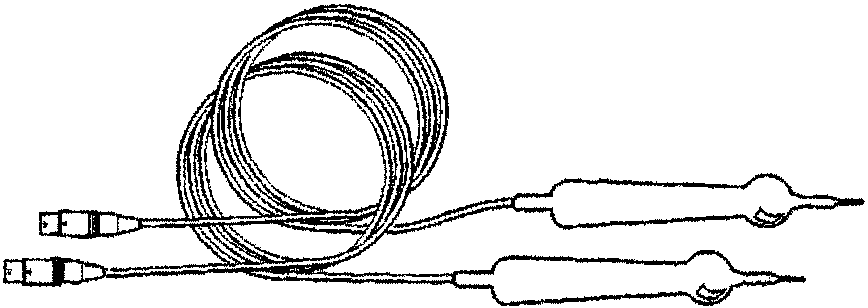

Coiled cable with two probes labeled 3130-022-01 Red Probe and 3130-023-01 Black Probe
  1. 3130-022-01 Red Probe
  2. 3130-023-01 Black Probe

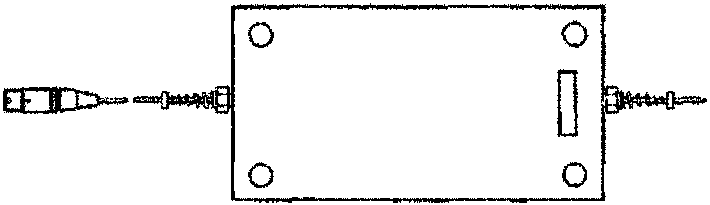

Rectangular box labeled 3130-1242-00 Aston Martin Protocol Adaptor with two connectors
  1. 3130-1242-00 Aston Martin Protocol Adaptor
