Priming (page 2 of 2)

3. Drain the tank.

Several litres of fuel will remain in the tank sump after draining.

4. Remove the rear subframe (Refer to 'Rear Subframe', page 2-1-4).

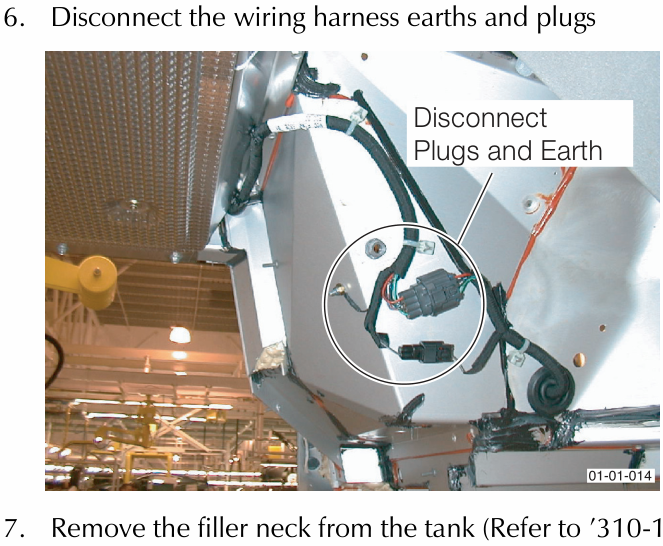

5. Disconnect the tank wiring harness plugs and earth cable.

F1 Disconnect the wiring harness earths and plugs

7. Remove the filler neck from the tank (Refer to '310-134 (Filler Neck Disconnect Tool)', page 20-1-6) Cap the filler neck on the tank.

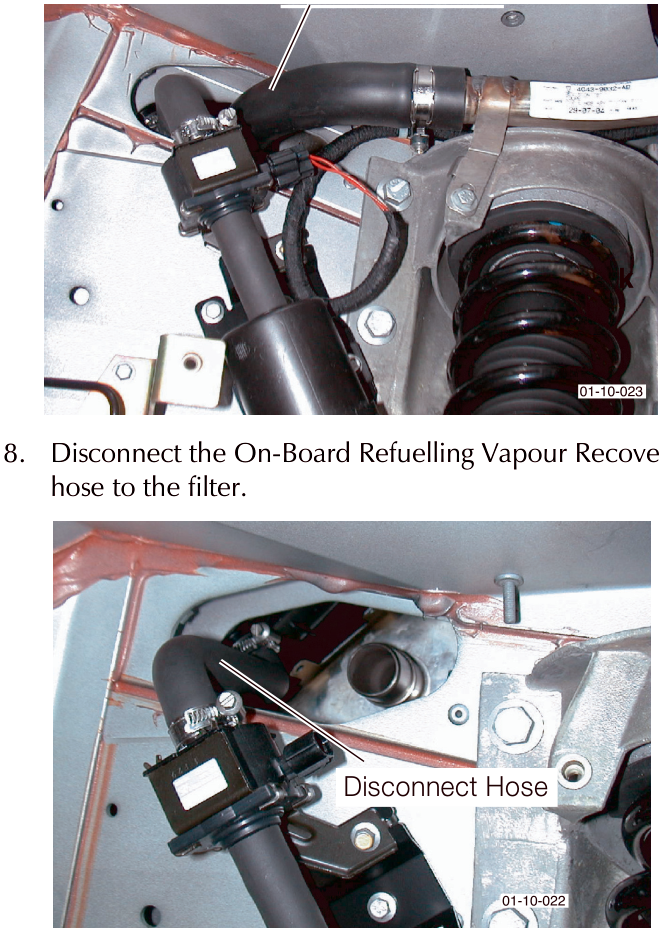

8. Disconnect the On-Board Refuelling Vapour Recovery hose to the filter.

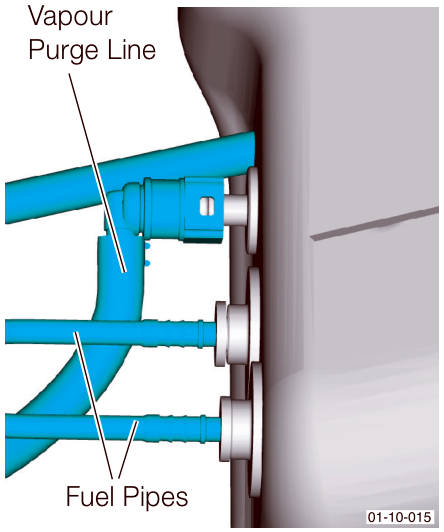

9. Disconnect the vapour purge and fuel pipes from the tank (Refer to '310-040 (Fuel Pipe Disconnect Tool)', page 20-1-6). Cap the open ends on the tank and on the pipes.

10. Place a suitable adjustable support, i.e. a transmission jack, under the fuel tank retaining plate.

⚠ Warning
This is a two person operation. The fuel tank is heavy. Withdraw fuel tank with care.

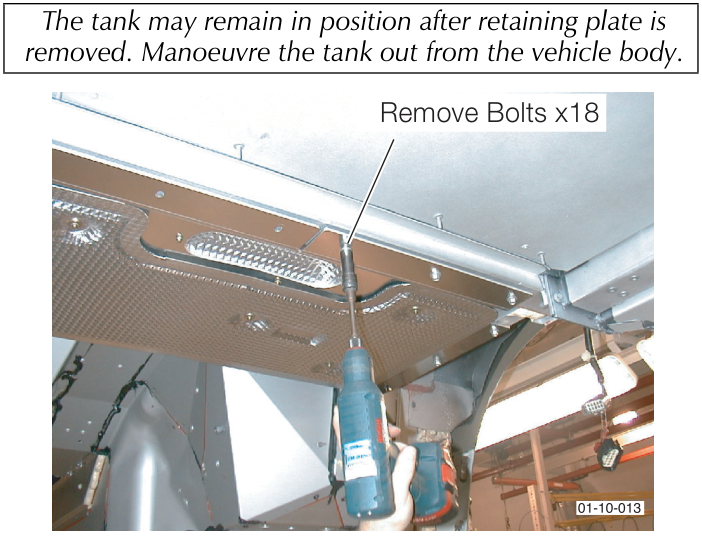

11. Remove bolts (x18) that secure the fuel tank retaining plate. Allow the fuel tank retaining plate and fuel tank to lower on the adjustable support.

F4 The tank may remain in position after retaining plate is removed. Manoeuvre the tank out from the vehicle body.
