FRONT BRAKE PADS - REPLACE WITH WHEELS REMOVED

Operation 3310A62 · FRONT DISC BRAKES

1.2 8v, 1.3 Multijet, 1.4 16v

Removing

- Disconnect the negative battery terminal.

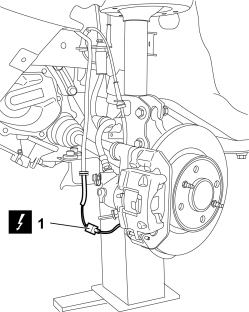

1. Disconnect the brake pad wear sensor.

The brake pad wear sensor is only fitted on the left front wheel.

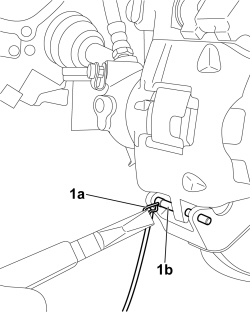

1. Remove the clip (1a) and the fixing pin (1b) for the front brake caliper.

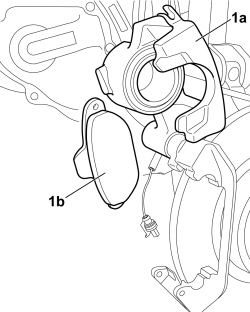

1. Open the front brake caliper (1a) and remove the brake pads (1b).

Refitting

- Place the new front brake pads in position.

- Close the front brake caliper and secure it using the fixing pin.

- Fit the retaining clip for the fixing pin for the front brake caliper.

1. Connect the brake pad wear sensor.

The brake pad wear sensor is only fitted on the left front wheel.

- Connect the negative battery terminal.
