FRONT BRAKE CALIPER (ONE) - R.R

Operation 3310A30 · FRONT DISC BRAKES

1.2 8v, 1.3 Multijet, 1.4 16v

Removing

- Position the vehicle on a lift.

- Disconnect the negative battery terminal.

1. Obstruct the brake fluid reservoir using the special tool.

- Proceed with removing the front wheel depending on the brake caliper to be removed.

Op. 4450B02 LEFT FRONT WHEEL - R.R

- or

Op. 4450B04 RIGHT FRONT WHEEL - R.R

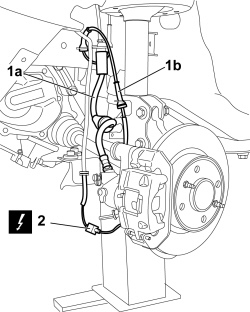

1. Release the brake fluid pipe (1a) and the electrical wiring (1b) for the front wheel A.B.S. sensor from the retaining clips.

2. Disconnect the brake pad wear sensor.

The brake pad wear sensor is only fitted on the left front wheel.

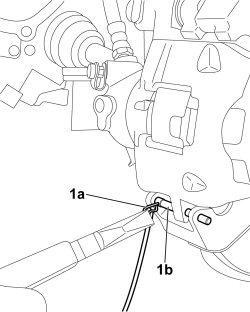

1. Remove the clip (1a) and the fixing pin (1b) for the front brake caliper.

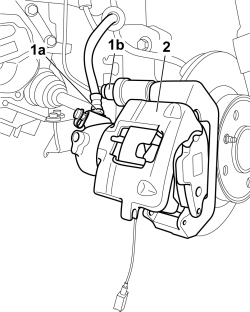

1. Undo the connector for the brake system pipe (1a) and the bolt fixing the brake caliper (1b).

2. Remove the front brake caliper.

Refitting

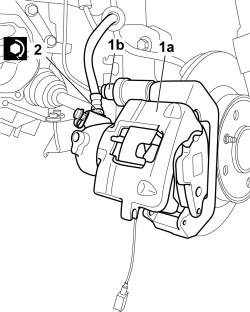

1. Position the front brake caliper (1a) and tighten the fixing bolt (1b).

2. Connect the brake system pipe and tighten the connector to the recommended torque.

- Fit the front brake caliper fixing pin in place and secure it using the retaining clip.

1. Secure the brake fluid pipe (1a) and the electrical wiring (1b) for the front wheel A.B.S. sensor to the retaining clips.

2. Connect the brake pad wear sensor.

The brake pad wear sensor is only fitted on the left front wheel.

- Proceed with refitting the front wheel depending on the front brake caliper removed.

Op. 4450B02 LEFT FRONT WHEEL - R.R

- or

Op. 4450B04 RIGHT FRONT WHEEL - R.R

- Remove the tool used for obstructing the brake fluid reservoir.

- Connect the negative battery terminal.

Op. 0010T65 HYDRAULIC BRAKE SYSTEM - BLEED AIR

- Remove the vehicle from the lift.
