ADDITIONAL HEATER - COMPONENT LOCATION

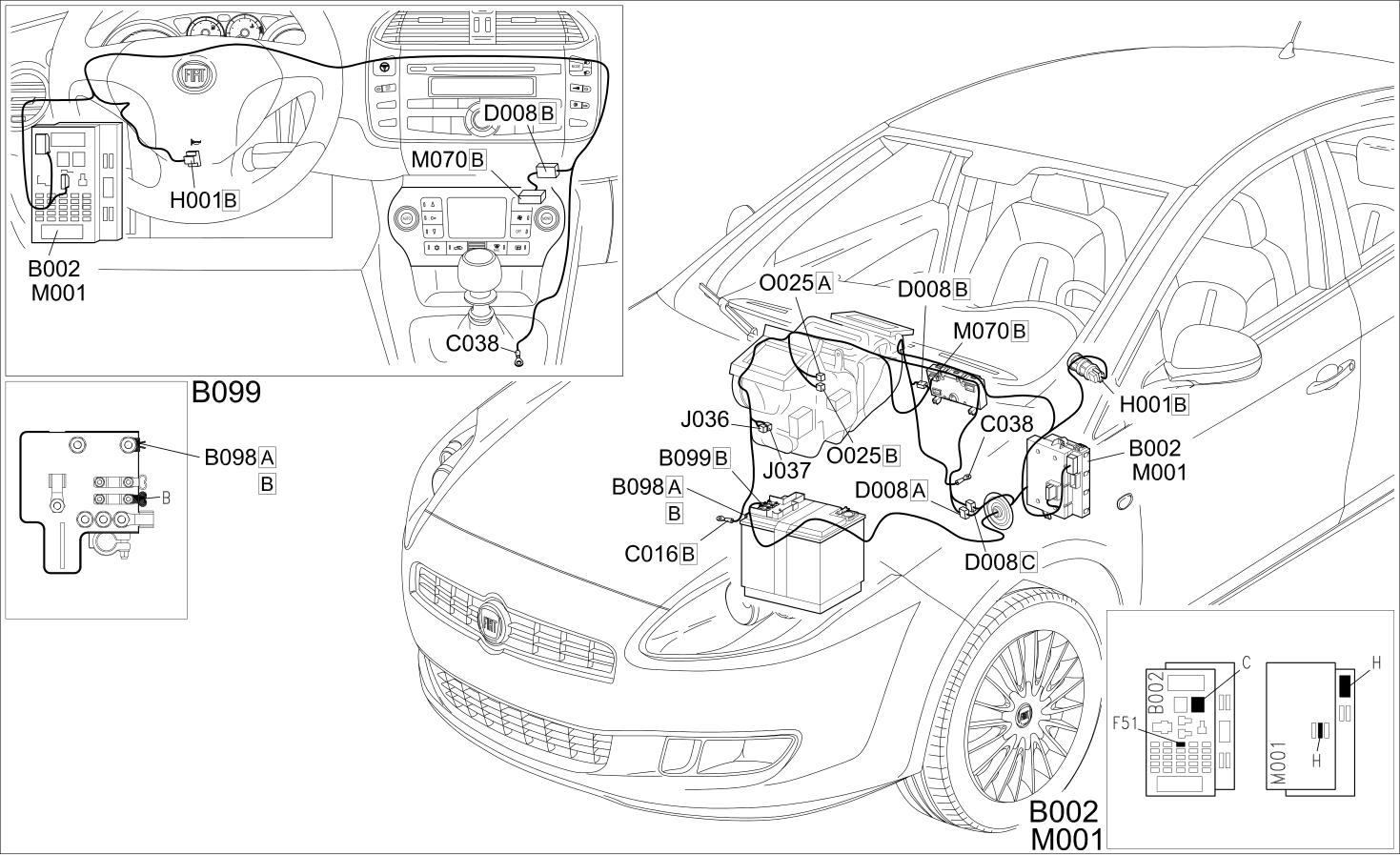

Automatic air conditioning

COMPONENT LOCATION

Component code	Description	Reference to the operation
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B098	SUPPLEMENTARY FUSE BOX
B099	MAXI FUSE BOX ON BATTERY
C016	AIR CONDITIONING UNIT EARTH
C038	EARTH ON CENTRE TUNNEL
D008	AIR CONDITIONING-HEATER FRONT COUPLING
H001	IGNITION SWITCH	Op. 5520A10 IGNITION SWITCH ASSEMBLY - R+R
J036	ADDITIONAL HEATER RELAY - 1
J037	ADDITIONAL HEATER RELAY -2
M001	BODY COMPUTER	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
M070	CLIMATE CONTROL SYSTEM CONTROL UNIT	Op. 5040D15 FOG LIGHT TRIM - R.R.
O025	ADDITIONAL HEATER RESISTANCE

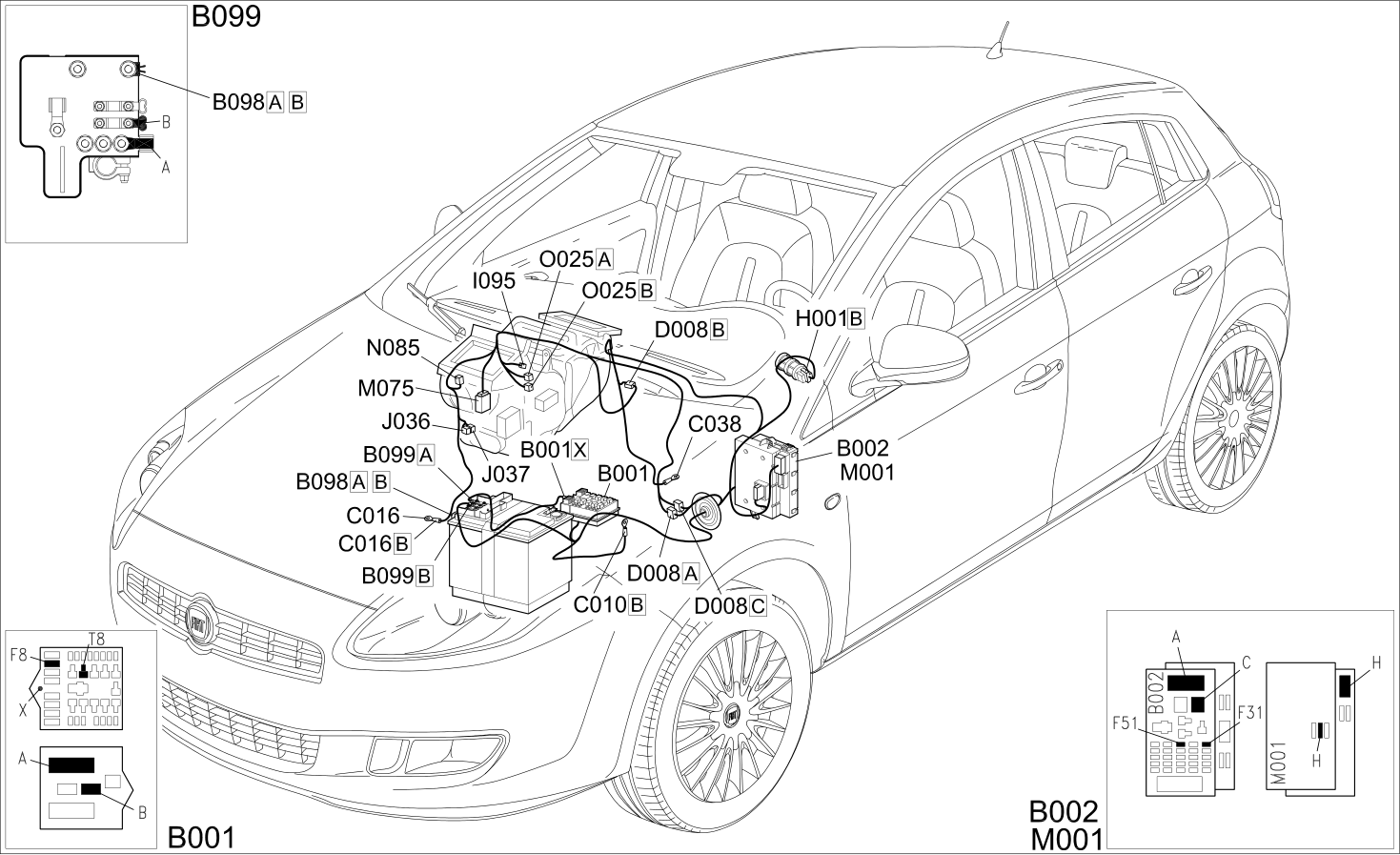

Manual Air Conditioning

COMPONENT LOCATION

Component code	Description	Reference to the operation
B001	JUNCTION UNIT	Op. 5505A13 ADDITIONAL JUNCTION UNIT IN ENGINE COMPARTMENT - R.R.
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B098	SUPPLEMENTARY FUSE BOX
B099	MAXI FUSE BOX ON BATTERY
C010	LEFT FRONT EARTH
C016	AIR CONDITIONING UNIT EARTH
C038	EARTH ON CENTRE TUNNEL
D008	AIR CONDITIONING-HEATER FRONT COUPLING
H001	IGNITION SWITCH	Op. 5520A10 IGNITION SWITCH ASSEMBLY - R+R
I095	ADDITIONAL HEATER SAFETY SWITCH
J036	ADDITIONAL HEATER RELAY - 1
J037	ADDITIONAL HEATER RELAY -2
M001	BODY COMPUTER	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
M075	ADDITIONAL HEATER CONTROL UNIT
N085	PASSENGER COMPARTMENT AIR FAN	Op. 5040C30 AIR CONDITIONING FAN - R.R.
O025	ADDITIONAL HEATER RESISTANCE
