Heater - wiring diagram

Make

Fiat

Model

Bravo Factory Service Manual

Year

2007–2014

Section

Climate control system › Heater - wiring diagram

Wiring diagrams and electrical functionsHeater - wiring diagram

HEATER - WIRING DIAGRAM

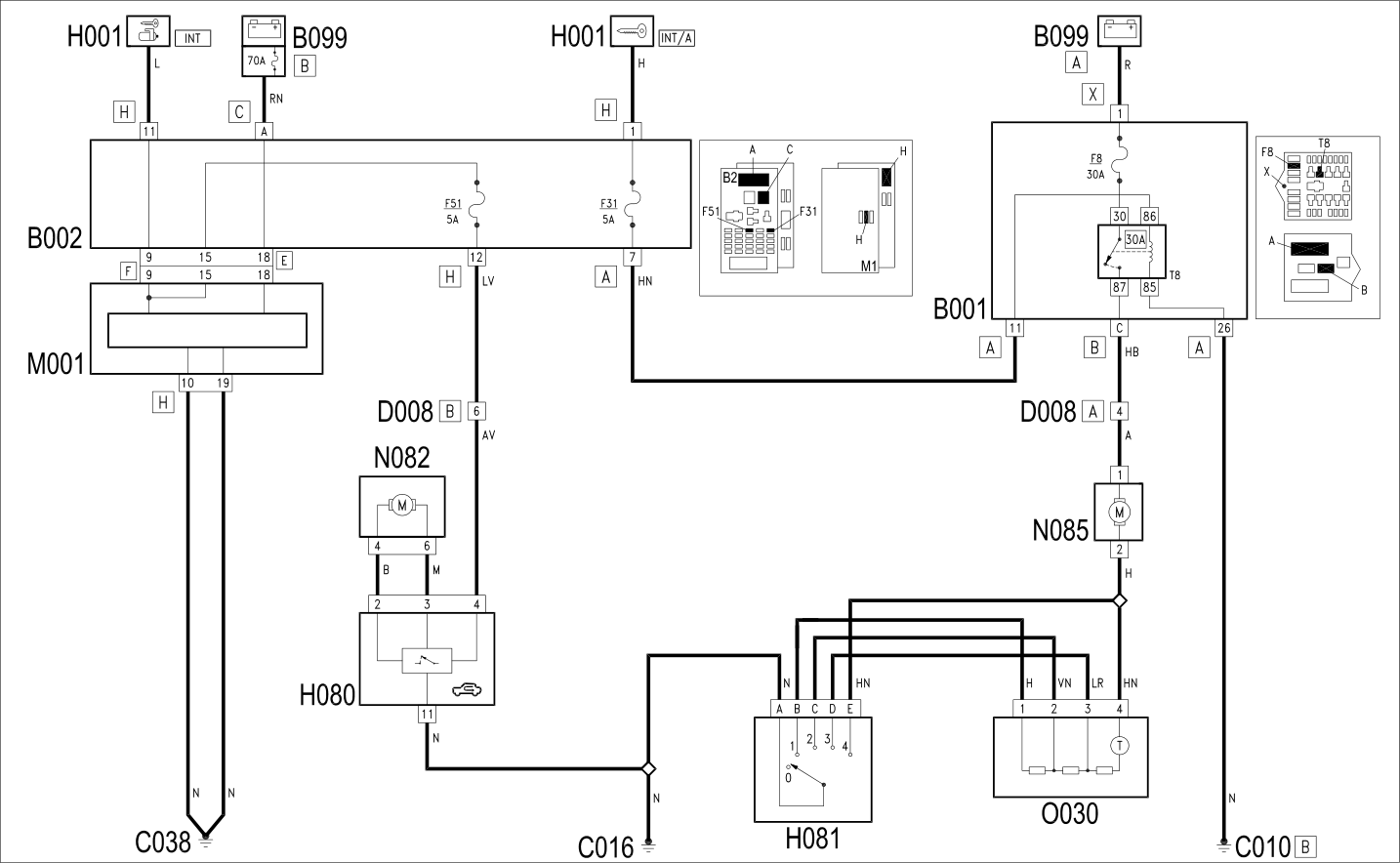

WIRING DIAGRAM

COMPONENTS

Component code	Description	Reference to the operation
B001	JUNCTION UNIT	Op. 5505A13 ADDITIONAL JUNCTION UNIT IN ENGINE COMPARTMENT - R.R.
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B099	MAXI FUSE BOX ON BATTERY
C010	LEFT FRONT EARTH
C016	AIR CONDITIONING UNIT EARTH
D008	AIR CONDITIONING-HEATER FRONT COUPLING
H001	IGNITION SWITCH	Op. 5520A10 IGNITION SWITCH ASSEMBLY - R+R
H080	AIR CONDITIONING CONTROLS	Op. 5040D10 AIR CONDITIONER CONTROLS SUPPORT - R+R OR REPLACE
H081	CLIMATE CONTROL FAN CONTROL	Op. 5040D10 AIR CONDITIONER CONTROLS SUPPORT - R+R OR REPLACE
M001	BODY COMPUTER	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
N082	OUTSIDE / RECIRCULATION AIR INTAKE FLAP ACTUATOR	Op. 5040D75 AIR CONDITIONING RECIRCULATION FLAP CONTROL MOTOR - R.R
N085	PASSENGER COMPARTMENT AIR FAN	Op. 5040C30 AIR CONDITIONING FAN - R.R.
O030	PASSENGER COMPARTMENT AIR FAN ADJUSTMENT RESISTOR	Op. 5020A44 HEATER FAN MOTOR RESISTOR - R+R
