Air conditioner - wiring diagram

Make

Fiat

Model

Bravo Factory Service Manual

Year

2007–2014

Section

Climate control system › Air conditioner - wiring diagram

Wiring diagrams and electrical functionsAir conditioner - wiring diagram

AIR CONDITIONER - WIRING DIAGRAM

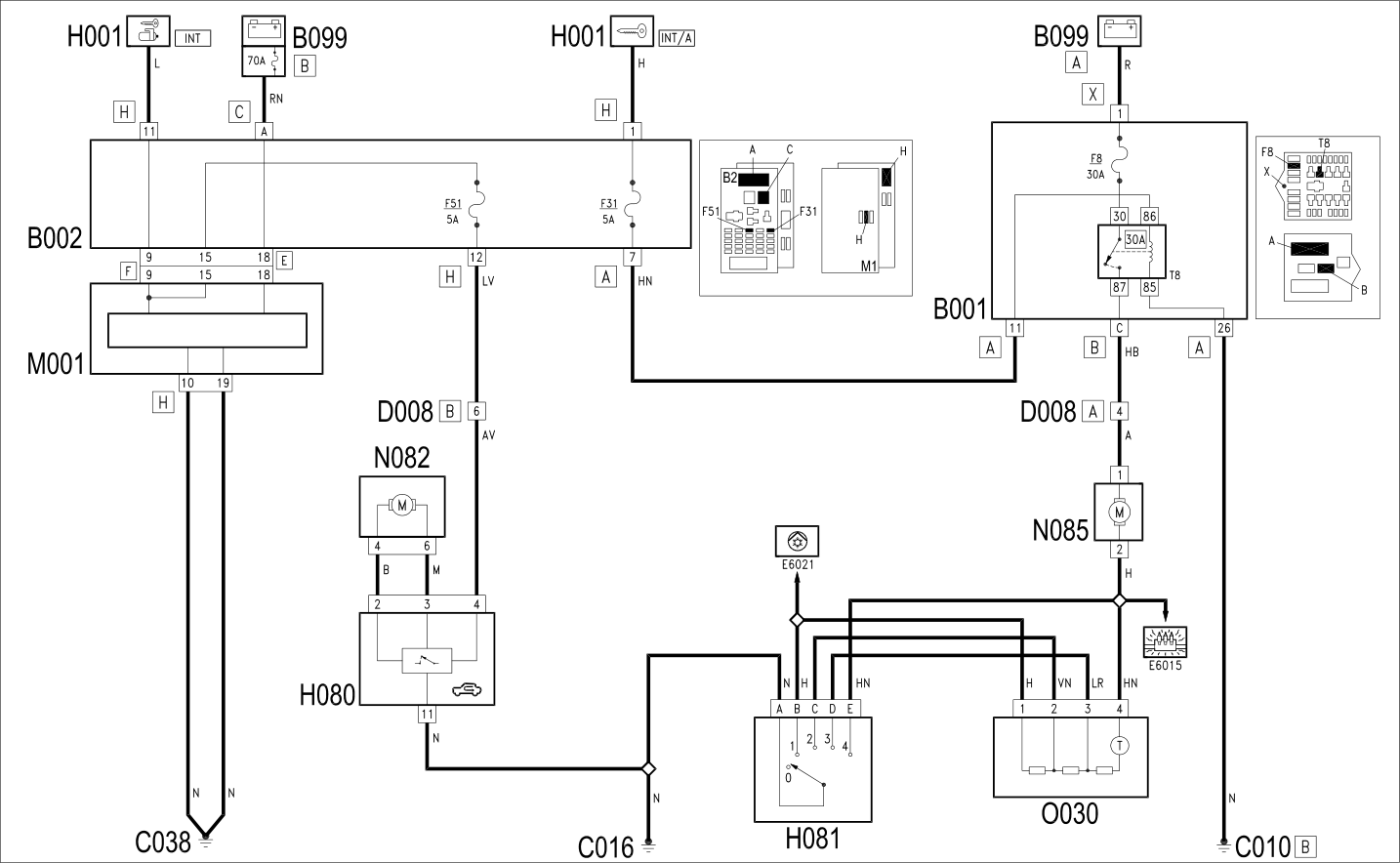

Manual Air Conditioning

WIRING DIAGRAM

COMPONENTS

Component code	Description	Reference to the operation
B001	JUNCTION UNIT	Op. 5505A13 ADDITIONAL JUNCTION UNIT IN ENGINE COMPARTMENT - R.R.
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B099	MAXI FUSE BOX ON BATTERY
C010	LEFT FRONT EARTH
C016	AIR CONDITIONING UNIT EARTH
C038	EARTH ON CENTRE TUNNEL
D008	AIR CONDITIONING-HEATER FRONT COUPLING
H001	IGNITION SWITCH	Op. 5520A10 IGNITION SWITCH ASSEMBLY - R+R
H080	AIR CONDITIONING CONTROLS	Op. 5040D10 AIR CONDITIONER CONTROLS SUPPORT - R+R OR REPLACE
H081	CLIMATE CONTROL FAN CONTROL	Op. 5040D10 AIR CONDITIONER CONTROLS SUPPORT - R+R OR REPLACE
M001	BODY COMPUTER	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
N082	OUTSIDE / RECIRCULATION AIR INTAKE FLAP ACTUATOR	Op. 5040D75 AIR CONDITIONING RECIRCULATION FLAP CONTROL MOTOR - R.R
N085	PASSENGER COMPARTMENT AIR FAN	Op. 5040C30 AIR CONDITIONING FAN - R.R.
O030	PASSENGER COMPARTMENT AIR FAN ADJUSTMENT RESISTOR	Op. 5020A44 HEATER FAN MOTOR RESISTOR - R+R

Automatic air conditioning

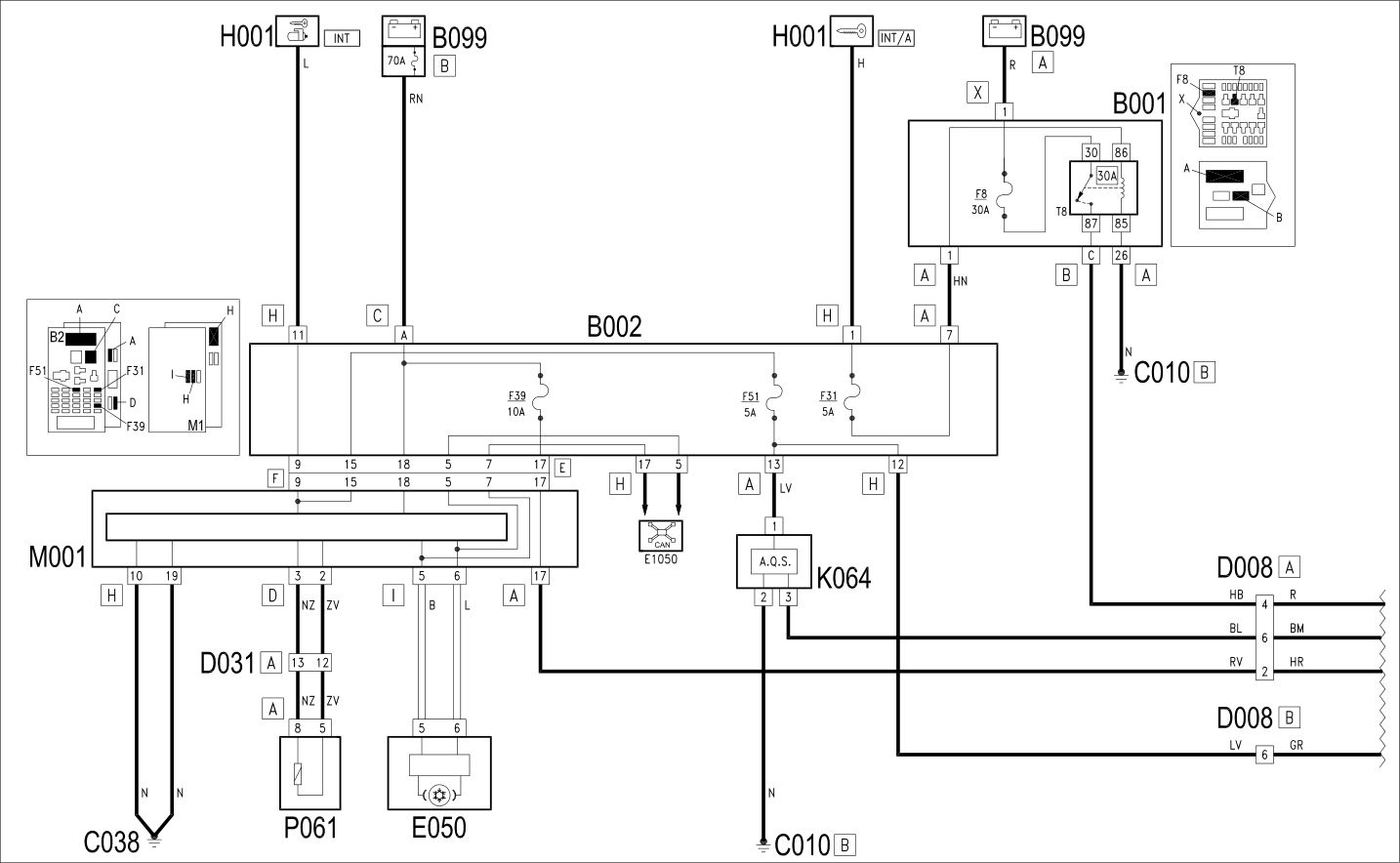

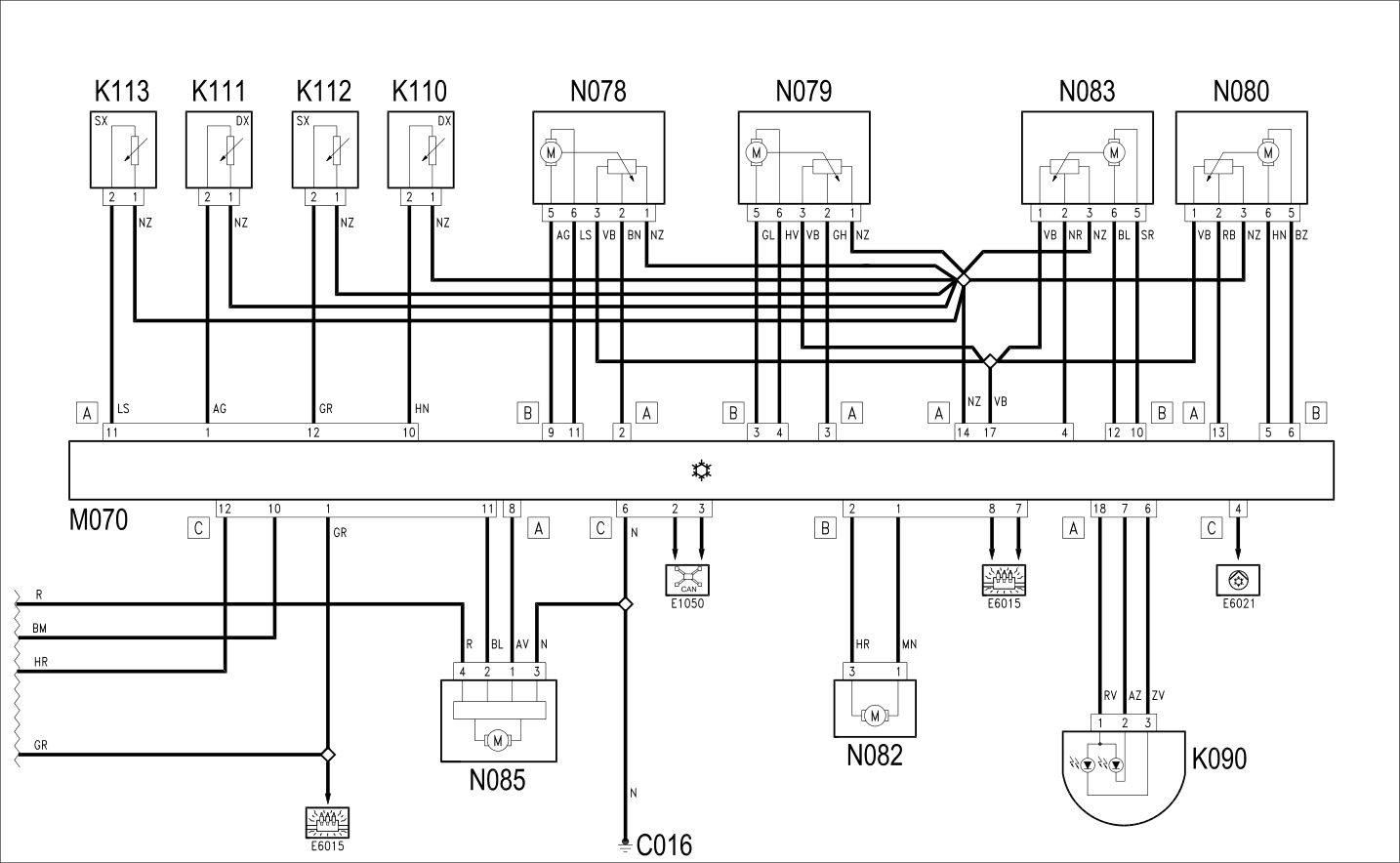

WIRING DIAGRAM

COMPONENTS

Component code	Description	Reference to the operation
B001	JUNCTION UNIT	Op. 5505A13 ADDITIONAL JUNCTION UNIT IN ENGINE COMPARTMENT - R.R.
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B099	MAXI FUSE BOX ON BATTERY
C010	LEFT FRONT EARTH
C016	AIR CONDITIONING UNIT EARTH
C038	EARTH ON CENTRE TUNNEL
D008	AIR CONDITIONING-HEATER FRONT COUPLING
D031	PASSENGER FRONT DOOR COUPLING
E050	INSTRUMENT PANEL	Op. 5560B10 CONTROL PANEL - R+R
H001	IGNITION SWITCH	Op. 5520A10 IGNITION SWITCH ASSEMBLY - R+R
K064	EXHAUST GAS PRESENCE SENSOR	Op. 5010D72 AIR QUALITY SENSOR - R.R. FOLLOWING ELECTRICAL CIRCUIT CHECK
K090	SOLAR SENSOR	Op. 5010D56 SOLAR SENSOR - R.R FOLLOWING ELECTRICAL SYSTEM CHECK
K110	RIGHT UPPER AIR DISTRIBUTION TEMPERATURE SENSOR	Op. 5010D18 TOP MIXED AIR TEMPERATURE SENSOR - R+R FOLLOWING ELECTRICAL WIRING CHECK WITH HEATER CASE REMOVED
K111	RIGHT LOWER AIR DISTRIBUTION TEMPERATURE SENSOR	Op. 5010D28 LOWER MIXED AIR TEMPERATURE SENSOR (ONE), LH OR RH - R.R. FOLLOWING ELECTRICAL CIRCUIT CHECK
K112	LEFT UPPER AIR DISTRIBUTION TEMPERATURE SENSOR	Op. 5010D18 TOP MIXED AIR TEMPERATURE SENSOR - R+R FOLLOWING ELECTRICAL WIRING CHECK WITH HEATER CASE REMOVED
K113	LEFT LOWER AIR DISTRIBUTION TEMPERATURE SENSOR	Op. 5010D28 LOWER MIXED AIR TEMPERATURE SENSOR (ONE), LH OR RH - R.R. FOLLOWING ELECTRICAL CIRCUIT CHECK
M001	BODY COMPUTER	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
M070	CLIMATE CONTROL SYSTEM CONTROL UNIT	Op. 5040D15 FOG LIGHT TRIM - R.R.
N078	LEFT MIXED AIR FLAP ACTUATOR	Op. 5040D84 AIR CONDITIONING LEFT AIR MIXTURE FLAP CONTROL MOTOR - R.R
N079	RIGHT MIXED AIR FLAP ACTUATOR	Op. 5040D86 AIR CONDITIONING RIGHT AIR MIXTURE FLAP CONTROL MOTOR - R.R
N080	AIR DISTRIBUTION FLAP ACTUATOR	Op. 5040D82 AIR CONDITIONING LOWER AIR DISTRIBUTION FLAP CONTROL MOTOR - R.R.
N082	OUTSIDE / RECIRCULATION AIR INTAKE FLAP ACTUATOR	Op. 5040D75 AIR CONDITIONING RECIRCULATION FLAP CONTROL MOTOR - R.R
N083	AIR DISTRIBUTION/DEFROST FLAP ACTUATOR	Op. 5040D78 AIR CONDITIONING UPPER AIR DISTRIBUTION FLAP CONTROL MOTOR (DEFROST) - R.R.
N085	PASSENGER COMPARTMENT AIR FAN	Op. 5040C30 AIR CONDITIONING FAN - R.R.
P061	PASSENGER DOOR MIRROR	Op. 7005R30 ELECTRICALLY CONTROLLED DOOR MIRROR (ONE) - R+R
